Starspace TIY-2181 Instruction Manual

INSTRUCTION MANUAL

ASSEMBLY GUIDE

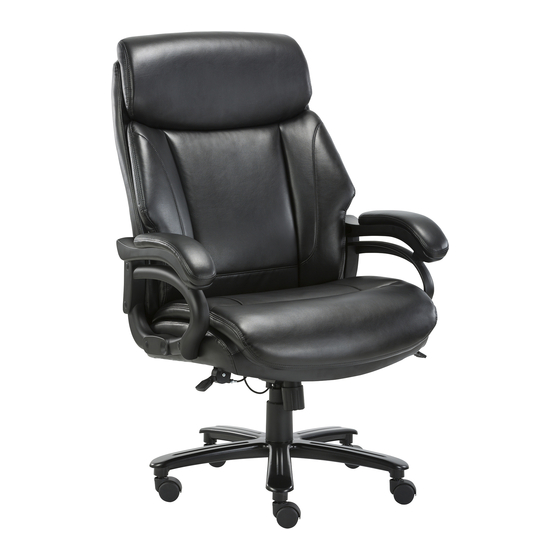

Congratulations, you are now the owner
of a brand new STARSPACE chair!
Following this assembly guide and you
will find a quick start guide to assemble
your STARSPACE chair. We highly
recommend checking out our Assembly
Videos as well for even more detailed
and visual instructions.
If you run into any difficulty during the
assembly, remember to check out the
Assembly Video to see if you've missed
anything. If you're unable to resolve your
problems, drop us an email as well and
our support team will assist you.

PACKAGE LIST

A B
Casters Star Base
Quantity: 5 Quantity: 1
D E
Seat Plate Seat Cushion
Quantity: 1 Quantity: 1
G G1 G2
Bolts M6*25mm Bolts M8*35mm Bolts M8*25mm
Quantity: 2 Quantity: 2
Quantity: 4
H I J
Arms Plastic Caps Wrench
Quantity: 2 Quantity: 9 Quantity: 1
STARSPACE CHAIR
SUBSCRIBE
MODEL:
TIY-2181

ASSEMBLY INSTRUCTION

Step 1: Turn the Star Base(B) upside
down, then press the Casters(A) into
the holes at the end of each base leg,
insert the Lift(C) into the center hole of
the Star Base.
Step 2: Align the Seat Plate(D) over
the pre-drilled holes underneath the
Seat Cushion(E), make sure that the
front of the seat plate is facing the
front of the Seat Cushion. Attach the
Seat Plate to the Seat Cushion using
TWO Botls M8*35MM (G1) at the front
and TWO Bolts M8*25MM (G2) at the
C
back, tighten all the bolts with the
Wrench(J), being careful not to miss-
thread the bolts or damaged the seat.
Lift
Quantity: 1
F Step 3: Align two control handles
of the Seat Plate(D) over the pre-
drilled holes underneath the Seat
Cushion(E), attach these two handles
to the Seat Cushion using Four Bolts
Back Cushion
Quantity: 1 M6*25MM(G), tighten all the bolts with
the Wrench(J).
G3
Bolts M8*35mm
Quantity: 8
Step 4: Turn the Seat Cushion(E)
upright and align the center hole of
the seat plate over the lift, then push
the seat cushion down onto the lift
firmly until the connection is secure.
Before you
get started,
a few
Scan this QR Code to watch our pointers:
assembly video for the chair.
STEP 1:
STEP 2:
G1
E
STEP 3:
E
STEP 4:
Having a friend to help Mind the important Contact us if you have
makes assembly Safety Information any issues
extra-easy
Step 5: Attach the Arms(Р) to the
Seat Cushion(E) with Four Bolts
M8*35mm(G3), using the Wrench(J).
C
Note 1: Arm rests are labeled with an "L"
(left) or "R" (right) to show which sides
they should be placed on.
B
Note 2: Do not tighten all the bolts to
100%, make sure it have space to adjust
A
in the next steps.
Step 6: Lay the Back Cushion on
the seat of the chair with the top of
the cushion toward the front. Attach
the Back Cushion(F) to the Arms by
inserting Two Bolts M8*35mm(G3)
D
in the LOWER holes with the
Wrench(J).
Note 1: Do not tighten all the bolts to
G2
100%, make sure it have space to adjust
in the next steps.
G
Step 7: Rotate the back of the
chair up, then secure it with the
TOP Two Bolts M8*35mm(G3) with
the Wrench(J). Adjust the balance
on each side of the chair, and fully
tighten all the bolts at this step.
D
Step 8: Press the Plastic Caps(I)
into the Arms holes to cover the bolts.
CAUTION:
Make sure all bolts and screws are
fully tightened before using chair.
Lubricate all moving parts and tighten
all bolts/screws every 6 month or
whenever needed.
