Starspace BTX-287 Instruction Manual

INSTRUCTION MANUAL

ASSEMBLY GUIDE

Congratulations, you are now the owner
of a brand new STARSPACE chair!
Following this assembly guide and you
will find a quick start guide to assemble
your STARSPACE chair. We highly
recommend checking out our Assembly
Videos as well for even more detailed
and visual instructions.
If you run into any difficulty during the
assembly, remember to check out the
Assembly Video to see if you've missed
anything. If you're unable to resolve your
problems, drop us an email as well and
our support team will assist you.

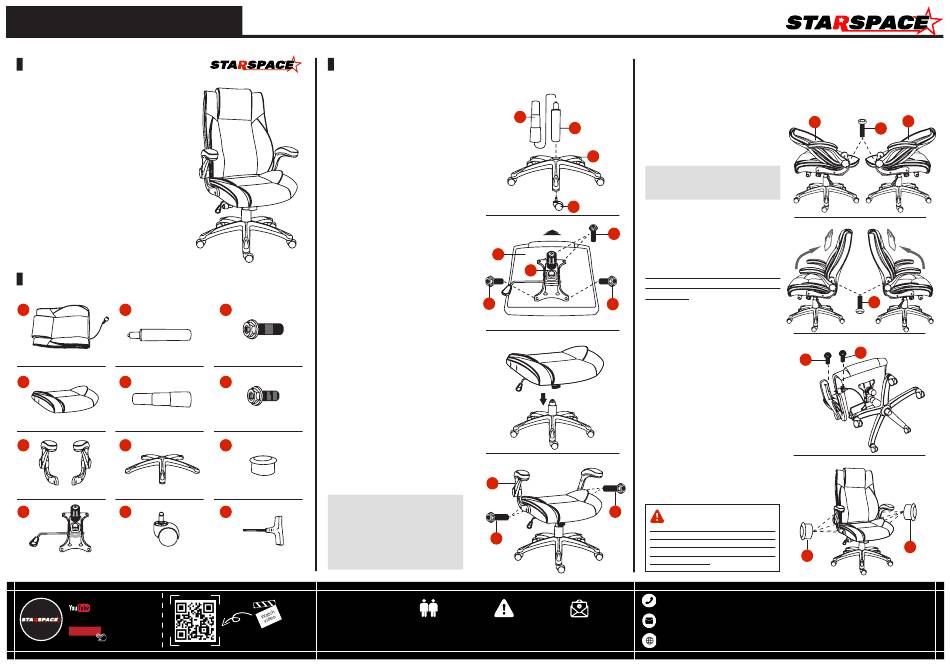

PACKAGE LIST

1 5
Back Cushion *1 Lift *1
2 6
Seat Cushion *1 Lift Cover *1
3 7
Arms *2 Star Base *1
4 8
Seat Plate *1 Casters *5
STARSPACE CHAIR
SUBSCRIBE
MODEL:
BTX-287

ASSEMBLY INSTRUCTION

Step 1:

Turn the Star Base(7) upside
down, then press the Casters(8) into
the holes at the end of each base leg,
insert the Lift(5) into the center hole of
the Star Base, the Lift Cover(6) should
be placed over the Lift.
Align the Seat Plate(4) over

Step 2:

the pre-drilled holes underneath the
Seat Cushion, make sure that the
front of the seat plate is facing the
front of the Seat Cushion. Attach the
Seat Plate(4) to the Seat Cushion
using TWO Botls 1/4*1"(9) at the
front and TWO Bolts 1/4*7/8"(10) at
the back, tighten all the bolts with the
9
Wrench(12), being careful not to miss-
thread the bolts or damaged the seat.
Bolts 1/4*1" *10

Step 3:

Turn the Seat Cushion
upright and align the center hole of the
10
Seat Plate(4) over the lift, then push
the Seat Cushion down onto the lift
firmly until the connection is secure.
Bolts 1/4*7/8" *4
11
Attach the Arms(3) to the

Step 4:

Seat Cushion(2) with Four Bolts
1/4*1"(9), using the Wrench(12).
Plastic Caps *8
Note 1: Arm rests are labeled with an "L"
12
(left) or "R" (right) to show which sides
they should be placed on.
Note 2: Do not tighten all the bolts to
100%, make sure it have space to adjust
in the next steps.
Wrench *1
Before you
get started,
a few
Having a friend to help
pointers:
Scan this QR Code to watch our
assembly video for the chair.
STEP 1:
6
5
8
STEP 2:
2
4
10
STEP 3:
STEP 4:
3
9
Mind the important Contact us if you have
makes assembly Safety Information any issues
extra-easy
Lay the Back Cushion on the

Step 5:

seat of the chair with the top of the
cushion toward the front. Attach the
Back Cushion(1) to the Arms(3) by
inserting Two Bolts 1/4*1"(9) in the
7 Lower holes with the Wrench(12).
Note 1: Do not tighten all the bolts to
100%, make sure it have space to adjust
in the next steps.
9
Rotate the back of the chair

Step 6:

up, then secure it with the Top Two
Bolts 1/4*1"(9) with the Wrench(12).
Adjust the balance on each side of
the chair, and fully tighten all the bolts
at this step.
10

Step 7:

Align the control handles
of the back adjust over the pre-
drilled holes underneath the Seat
Cushion(2), attach the handle to
the Seat Cushion using Two Bolts
1/4*7/8"(10), tighten all the bolts with
the Wrench(12).

Step 8:

Press the Plastic Caps(11)
into the Arms holes to cover the bolts.
9
CAUTION:
Make sure all bolts and screws are
fully tightened before using chair.
Lubricate all moving parts and tighten
all bolts/screws every 6 month or
whenever needed.
+1 628-222-2513
service@starspacechair.com
www.starspacechair.com
STEP 5:
1
1
9
STEP 6:
9
STEP 7:
10
10
STEP 8:
11
11
