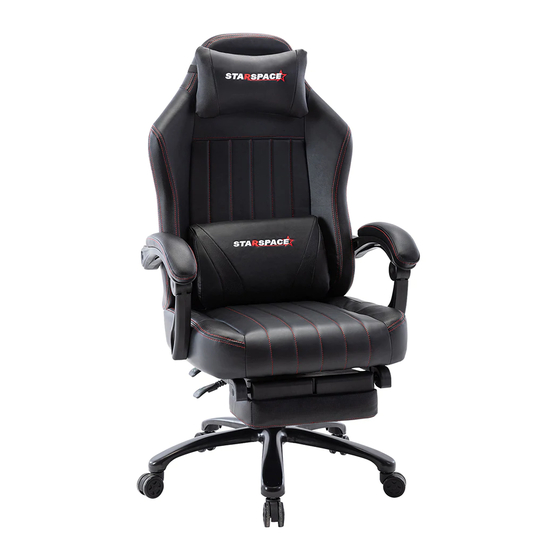

Starspace BTX-293 Instruction Manual

INSTRUCT ION MANUAL

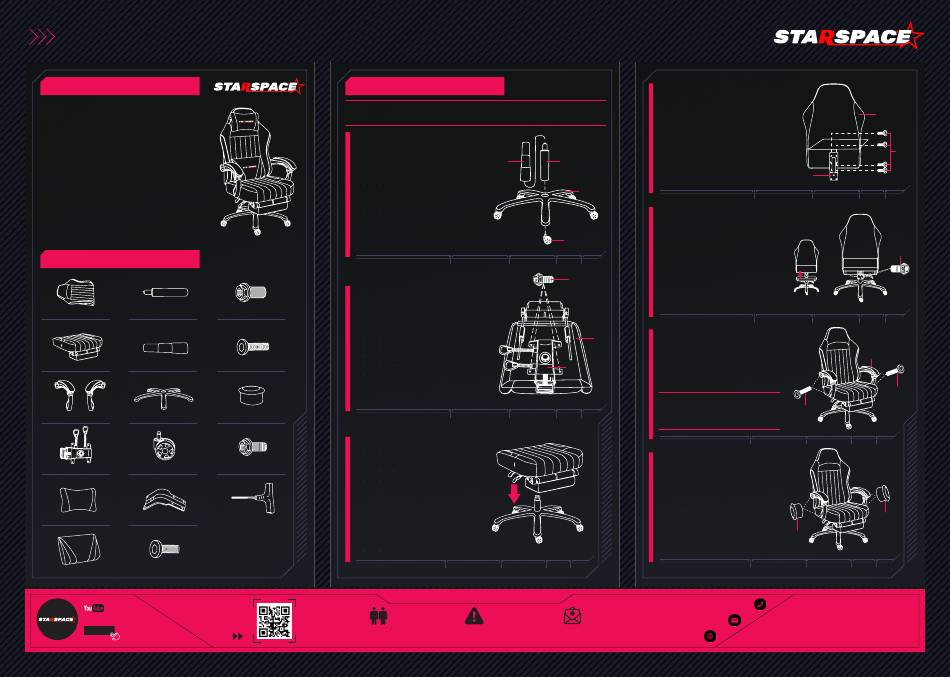

ASSEMBLY GUIDE
Congratulations, you are now the owner
of a brand new STARSPACE chair!
F ol low in g t h i s as se m b l y gu i de an d
you w i l l f in d a qu ick s t a r t gu i de t o
assemble your STARSPACE chair. We
highly recommend checking out our
Assembly Videos as well for even
more detailed and visual instructions.
If you run into any difficulty during the
assembly, remember to check out the
Assembly Video to see if you've missed
anything. If you're unable to resolve your
problems, drop us an email as well and
our support team will assist you.
PACKAGE LIST
[1] [7] [13]
Back Cushion *1 Lift *1 Bolts 5/16*3/4" *3
[2] [8] [14]
Seat Cushion *1 Lift Cover *1 Bolts M8*45mm *4
[3] [9] [15]
Arms *2 Star Base *1
[4] [10] [16]
Seat Plate *1 Casters *5 Bolts 1/4*7/8" *4
[5] [11] [17]
Head Pillow *1 Steel Plate *1
[6] [12]
Back Pillow *1 Bolts M6*25mm *4
Scan this QR Code to
STARSPACE CHAIR watch our assembly
video for the chair.
SUBSCRIBE
MODEL: BTX-293
ASSEMBLY INSTRUCTION
Make sure all bolts and screws are fully tightened before
CAUTION
using chair. Lubricate all moving parts and tighten all bolts/
screws every 6 month or whenever needed.
S T E P
Turn the Star Base(9) upside down,
then press the Casters(10) into the
holes at the end of each base leg,
insert the Lift(7) into the center
hole of the Star Base, the Lift
Cover(8) should be placed over the
Lift.
S T E P
Align the Seat Plate(4) over the
pre-drilled holes underneath the
Seat Cushion, make sure that the
front of the seat plate is facing
the front of the Seat Cushion.
Attach the Seat Plate(4) to the
Seat Cushion(2) using FOUR Botls
1/4*7/8"(16) , tighten all the bolts
with the Wrench(17), being careful
not to miss-thread the bolts or
damaged the seat.
Plastic Caps *4
S T E P
Turn the Seat Cushion upright and
align the center hole of the Seat
Plate(4) over the lift, then push the
Seat Cushion(2) down onto the
lift firmly until the connection is
secure.
Wrench *1
Before you get started, a few pointers:
Having a friend to help
makes assembly extra-easy
1
[7]
[8]
[9]
[10]
[16]
2
[4]
3
Mind the important Contact us if you have
safety information any issues
S T E P 4
Attach the Steel Plate (11) and
B a c k C u s h i o n ( 1 ) w i t h F O U R
Bolts M6*25mm(12), using the
Wrench(17).
S T E P 5
Connect Seat Cushion(2) and
Back Cushion(1), align the Steel
Plate over the pre-drilled holes
with THREE Bolts 5/16*3/4"(13),
t i g h t e n a l l t h e b o l t s w i t h t h e
wrench(17).
S T E P 6
[2]
Attach the Arms(3) to the Seat
Cushion(2) and Back Cushion(1)
with Four Bolts M8*45mm(14),
using the Wrench(17).
Arm rests are labeled with
an "L" (left) or "R" (right) to
NOTE
show which sides they should
be placed on.
S T E P 7
Press the Plastic Caps(15) into the
Arms holes to cover the bolts.
CONTACT US
service@starspacechair.com
>>>
www.starspacechair.com
[1]
[12]
[11]
[13]
[3]
[14]
[14]
[15]
[15]
+1 628-222-2513
