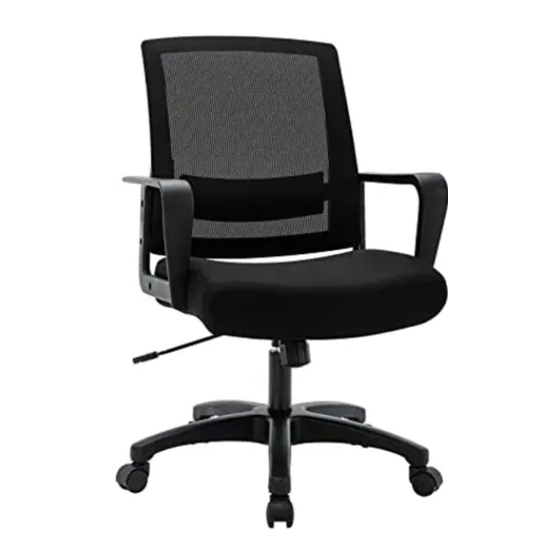

Starspace SKY-1011 Instruction Manual

INSTRUCTION MANUAL
ASSEMBLY GUIDE
Congratulations, you are now the owner of
a brand new STARSPACE chair!
Following this assembly guide and you will
find a quick start guide to assemble your
STARSPACE chair. We highly recommend
checking out our Assembly Videos as
well for even more detailed and visual
instructions.
If you run into any difficulty during the
assembly, remember to drop us an email
as well and our support team will assist
you.
PACKAGE LIST
A B
Casters *5 Star Base *1
D E
Seat Cushion *1 Back Cushion *1
G H
Left Arm *1 Seat Plate *1
J K
Bolts 5/16*22mm *4 Plastic Caps *8
+1 628-222-2513
service@starspacechair.com
STARSPACE CHAIR
SUBSCRIBE
www.starspacechair.com
MODEL:
SKY-1011

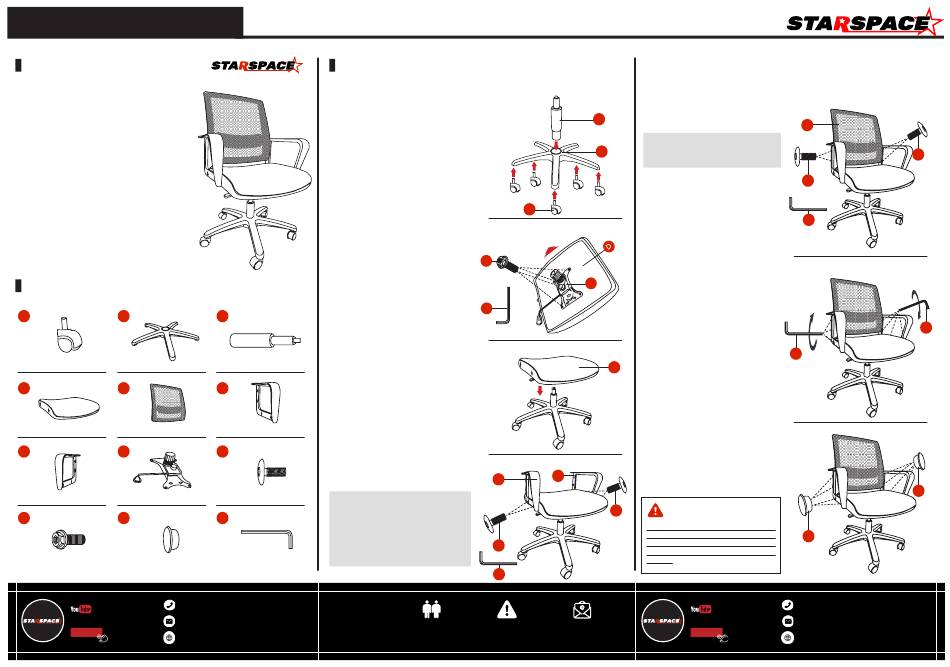

ASSEMBLY INSTRUCTION
Turn the Star Base(B) upside
Step 1:
down, then press the Casters(A) into the
holes at the end of each base leg, insert
the Hydraulic(C) into the center hole of the
Star Base.
Step 2: Align the Seat Plate(H) over the
pre-drilled holes underneath the Seat
Cushion(D), make sure that the front of the
seat plate is facing the front of the Seat
Cushion. Attach the Seat Plate to the Seat
Cushion using Four 5/16*22mm Bolts(J),
tighten all the bolts with the Wrench(L),
being careful not to miss-thread the bolts
or damaged the seat.
C
Hydraulic *1
Step 3: Turn the Seat Cushion(D) upright
and align the center hole of the seat plate
F
over the Hydraulic, then push the seat
cushion down onto the Hydraulic firmly
until the connection is secure.
Right Arm *1
I
Attach the Right Arm(F) and Left
Step 4:
Arm(G) to the Seat Cushion(D) with Four
1/4*20mm Bolts (I), using the Wrench(L).
Bolts 1/4*20mm *8
Note 1: Arm rests are labeled with an "L"
(left) or "R" (right) to show which sides they
should be placed on.
L
Note 2: DO NOT tight bolts to 100%, 75%
is enough, make sure it have space to
adjust in the next steps.
Wrench *1
Before you
get started,
a few
Having a friend to help
pointers:
STEP 1:
A
STEP 2:
J
L
STEP 3:
STEP 4:
G
F
I
L
Mind the important Contact us if you have
makes assembly safety information any issues
extra-easy
Attach the Back Cushion(E) to
Step 5:
the Arms by inserting Four 1/4*20mm
Bolts(I) with the Wrench(L).
C
Note 1: DO NOT tight bolts to 100%, 75%
is enough, make sure it have space to
B
adjust in the next steps.
Adjust the balance on each side
Step 6:
H
of the chair, and fully tighten all the bolts
to 100% at this step.
D
Step 7: Press the Plastic Caps(K) into
the Arms holes to cover the bolts.
CAUTION:
I
Make sure all bolts and screws are fully
tightened before using chair. Lubricate
all moving parts and tighten all bolts/
screws every 6 month or whenever
needed.
STARSPACE CHAIR
SUBSCRIBE
STEP 5:
E
I
I
L
STEP 6:
(100%)
(100%)
L
L
STEP 7:
K
K
