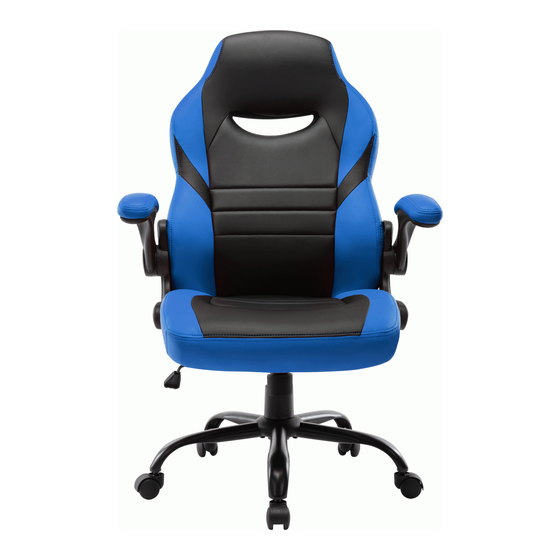

Starspace SKY-032 Instruction Manual

IN S T R U C T I O N M A NU A L
ASSEMBLY GUIDE
Congratulations, you are now the owner of a
brand new STARSPACE chair!
Following this assembly guide, you will
find a quick start guide to assemble your
STARSPACE chair. We highly recommend
checking out our Assembly Videos as well for
even more detailed and visual instructions.
If you run into any difficulty during the
a s s e m b l y , r e m e m b e r t o c h e c k o u t t h e
Assembly Video to see if you've missed
anything. If you're unable to resolve your
problems, drop us an email as well and our
support team will assist you.
PACKAGE LIST
[A] [F] [I]
Base Legs *5 Lift Cover *1
[B] [G]
[J]
Star Base *1 Bolts M6*15mm *10
[C] [G1]
[K]
Plastic Covers *8
Base Cover *1 M8 Bolts *4
[D] [G2]
[L]
Casters *5 1/4 Bolts *8
[E] [H] [M]
Gas Lift *1 Back Cushion *1
Scan this QR Code to
STARSPACE CHAIR watch our assembly
video for the chair.
SUBSCRIBE
MODEL: SKY-032
ASSEMBLY INSTRUCTION
CAUTION
S T E P
Connect Star Base(B) and Five
Base Legs(A) with Ten M6*15mm
Bolts(G), using the Wrench(L),
press the Base Cover(C) to the
Star Base.
S T E P
Turn the Star Base(B) upside down,
then press the Casters(D) into the
holes at the end of each base leg,
Seat Cushion *1
insert the Lift(E) into the center
hole of the Star Base, the Lift
Cover(F) should be placed over the
Lift.
Arms *2
S T E P
Align the Seat Plate(M) over the
pre-drilled holes underneath the
Seat Cushion(I), make sure that the
front of the seat plate is facing the
Wrench *1
front of the Seat Cushion. Attach
the Seat Plate to the Seat Cushion
using Four Bolts(G1), tighten all
the bolts with the Wrench(L), being
careful not to miss-thread the
bolts or damaged the seat.
Seat Plate *1
Before you get started, a few pointers:
Having a friend to help
makes assembly extra-easy
Make sure all bolts and screws are fully tightened before
using chair. Lubricate all moving parts and tighten all bolts/
screws every 6 month or whenever needed.
[A]
1
[G]
[B]
[C]
2
[F]
[E]
[D]
3 [L]
[G1]
[M]
[I]
Mind the important Contact us if you have
safety information any issues
S T E P 4
Turn the Seat Cushion(I) upright
and align the center hole of the
seat plate over the lift, then push
the seat cushion down onto the
lift firmly until the connection is
[G] secure.
[L]
S T E P 5
Attach the Arms(J) to the Seat
Cushion(I) with eight 1/4 Bolts (G2),
using the Wrench(L).
NOTE
Arm rests are labeled with an "L" (left)
or "R" (right) to show which sides they
should be placed on.
Tight bolts to 50% at the first, after all
bolts were installed, tight all bolts to
100%.
S T E P 6
Press plastic covers(K) to the arm
holes.
CONTACT US
>>>
www.starspacechair.com
[L]
[J]
[G2]
[G2]
[K]
[K]
+1 628-222-2513
service@starspacechair.com
