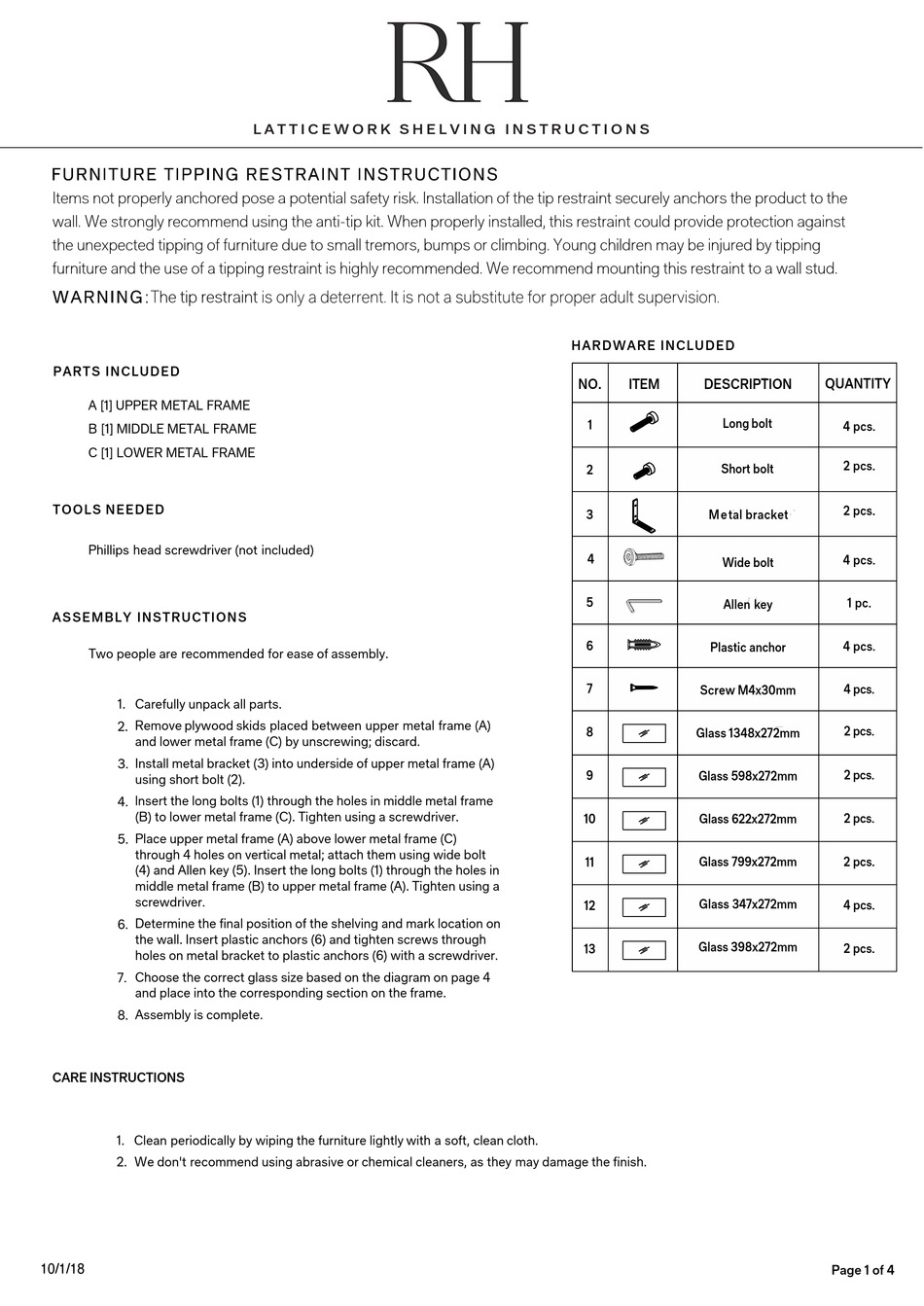

Restoration Hardware LATTICEWORK SHELVING Instructions

Items not properly anchored pose a potential safety risk. Installation of the tip restraint securely anchors the product to the
wall. We strongly recommend using the anti-tip kit. When properly installed, this restraint could provide protection against
the unexpected tipping of furniture due to small tremors, bumps or climbing. Young children may be injured by tipping
furniture and the use of a tipping restraint is highly recommended. We recommend mounting this restraint to a wall stud.
The tip restraint is only a deterrent. It is not a substitute for proper adult supervision.
P ARTS I N CLUDED
A [1] UPPER METAL FRAME
B [1] MIDDLE METAL FRAME
C [1] LOWER METAL FRAME
T OOL S N E EDED
Phillips head screwdriver (not included)
A SSEM B L Y I N STR UCT IO NS
Two people are recommended for ease of assembly.
1. Carefully unpack all parts.
2. Remove plywood skids placed between upper metal frame (A)
and lower metal frame (C) by unscrewing; discard.
3. Install metal bracket (3) into underside of upper metal frame (A)
using short bolt (2).
4. lnsert the long bolts (1) through the holes in middle metal frame
(B) to lower metal frame (C). Tighten using a screwdriver.
5. Place upper metal frame (A) above lower metal frame (C)
through 4 holes on vertical metal; attach them using wide bolt
(4) and Allen key (5). Insert the long bolts (1) through the holes in
middle metal frame (B) to upper metal frame (A). Tighten using a
screwdriver.
6. Determine the final position of the shelving and mark location on
the wall. Insert plastic anchors (6) and tighten screws through
holes on metal bracket to plastic anchors (6) with a screwdriver.
7. Choose the correct glass size based on the diagram on page 4
and place into the corresponding section on the frame.
8. Assembly is complete.
CARE INSTRUCTIONS
1. Clean periodically by wiping the furniture lightly with a soft, clean cloth.
2. We don't recommend using abrasive or chemical cleaners, as they may damage the finish.
10/1/18
L A T T I C E W O R K S H E L V I N G I N S T R U C T I O N S
HA RD WAR E IN CLUD ED
NO. ITEM DESCRIPTION
� Long bolt
1
Short bolt
2
�
l
3 Metal bracket
®ma-
4
Wide bolt
r=
5
Allen key
�
6
Plastic anchor
7 i:--
Screw M4x30mm
8
Glass 1348x272mm
�
9 Glass 598x272mm
�
10 Glass 622x272mm
�
Glass 799x272mm
11
�
Glass 347x272mm
12
�
Glass 398x272mm
13
�
QUANTITY
4 pcs.
2 pcs.
2 pcs.
4 pcs.
1 pc.
4 pcs.
4 pcs.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
4 pcs.
2 pcs.
Page 1 of 4
