Restoration Hardware GRAYSON Quick Start Manual

Framed sleigh bed

Advertisement

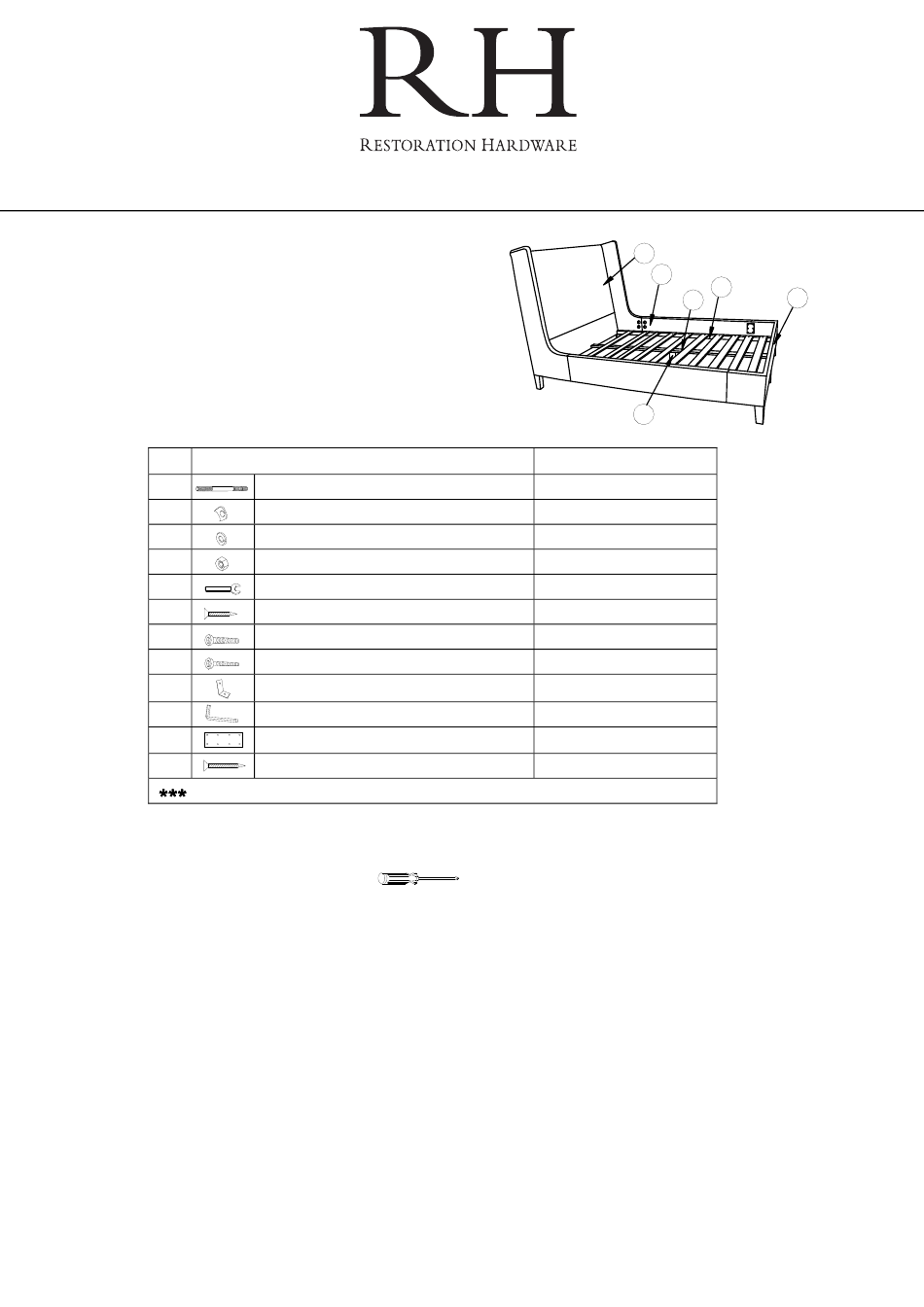

PARTS INCLUDED

A [1] Headboard
B [2] Side rail
C [1] Footboard
D [10] Cross support Slat
E [1] Center Support Slat
F [1] Center Support Slat Foot (With adjustable glide)
NO.
HARDWARE & PARTS ENCLOSED
1
Threaded Rod
2
Curved Washer
3
Spring Washer
4
Nut
5
Spanner Wrench
6
Big Screw (3cm)
7
Big Allen Head Bolt(0.8cm Dia)
8
Small Allen Head Bolt(0.6cm Dia)
9
L Shaped Bracket
10
Allen Wrench
11
Metal Plate
12
Screw (5cm)
The hardware is packed in box 2 with Bed Feet.

TOOLS NEEDED:

Phillips Screwdriver (not included)

ASSEMBLY INSTRUCTIONS

Bed must be assembled by at least two people.
Please read instructions carefully before assembling bed.
Use the above parts and hardware list to identify each component.
Keep all packing materials until assembly is complete to avoid loss of smaller parts.
1.
Place the headboard (A) on a flat protected surface.
2.
Stand the headboard (A) upright and align the Side Rails (B) at the base of the headboard as shown in Diagram I.
3.
Insert the Thread Rods (1) into the holes on the of Side Rail (B), and attach Curved Washers (2)
Lock Washers (3), Nuts (4) onto the Thread Rods (1). Repeat for second Side rail.
4.
Tighten the Nuts (4) &Thread Rods (1) with Spanner Wrench (5) as shown in the Diagram I.
GRAYSON FRAMED SLEIGH BED
Page 1 of 2
A
B
D
E
C
Qty
8pcs
8 pcs
8pcs
8 pcs
1 pcs
20 pcs
2 pcs
2pcs
2 pcs
1 pcs
4 pcs
24pcs
C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRAYSON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Restoration Hardware GRAYSON

  • Page 1 GRAYSON FRAMED SLEIGH BED PARTS INCLUDED A [1] Headboard B [2] Side rail C [1] Footboard D [10] Cross support Slat E [1] Center Support Slat F [1] Center Support Slat Foot (With adjustable glide) HARDWARE & PARTS ENCLOSED Threaded Rod...
  • Page 2 Repeat the step 3 and 4 with the Footboard (C). Reinforce the Headboard (A) Footboard (C) and Side Rails (B) with Metal Plate (11) by placing the Metal Plate (11) onto the connection point and inserting screws (12) as shown in Diagram II. Attach the Cross Support Foot (F) onto the Center Support Slat (E) as shown in the Diagram III.
