Summary of Contents for Daktronics 65 P2210

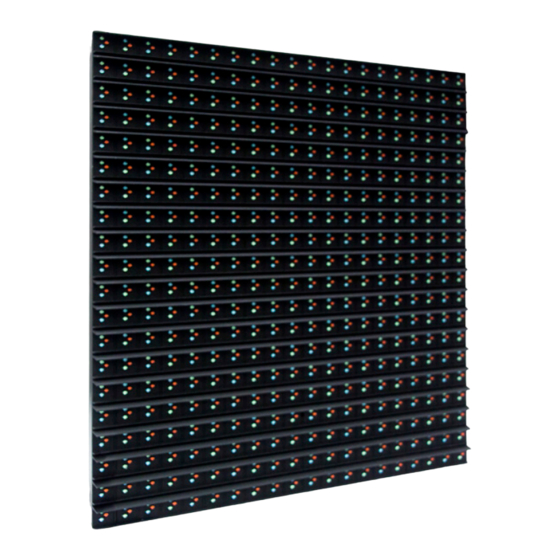

- Page 1 65 SERIES DIGITAL BILLBOARD SERVICE MANUAL P2210 DD4294929 Rev 02 13 July 2020 201 Daktronics Drive Brookings, SD 57006-5128 www.daktronics.com/support 800.325.8766...
- Page 2 Daktronics trademarks are property of Daktronics, Inc. All other trademarks are property of their respective companies.
-
Page 3: Table Of Contents
Remove a Module from Behind Internal Annual Inspection ........24 Enclosures ..........13 A Reference Documents ���������������������25 Reinstall a Module (Rear Access) ..13 Daktronics Warranty and Limitation Remove a Fan Plenum......14 of Liability�������������������������������������������27 Test and Replace Display Components �������������������������������������15 Test a Module ...........15 Module Status Indicators ���������������������15... - Page 4 This page intentionally left blank.
-
Page 5: Introduction
Figure 1: 65 Series Display Label table below. DB-65 Modules High X Modules Wide Display Assembly Number RMN: Daktronics - 0200 - 11 Manufactured in Sioux Falls, SD Display Serial Number 120/240 VAC, Single Phase, 60 HZ Manufacture Month/Date Year AMPS (L1/L2) = 21.6/22.9 Total... -
Page 6: Spare Parts
Spare Parts Every Daktronics digital billboard is shipped with spare parts that include commonly replaced components. The table lists some of the components that may be included in the spare parts rack shown in Figure 2. Refer to the spare parts inventory list contained... -
Page 7: Parts Rack
Some of these components are located in the spare parts rack. Contact the ASM to order components when needed. Display FRUs Control System FRUs Daktronics Part Description Daktronics Part Number Description Number Module 20MT 16MT... - Page 8 Display FRUs Control System FRUs Daktronics Part Description Daktronics Part Number Description Number Term Panel - 20 Amp S-1126 Temperature Sensor 0A-1151-0013 Two Pole Breaker Power Entrance - 15 S-1187 60 V Surge Protector A-3159 Amp 1P Breaker Power Entrance - 20 S-1243 Axial Fan .16 A...
-
Page 9: Display And Control Overview
Border Module Display and Control Overview This section describes generic power and signal paths for Daktronics digital billboards. Refer to display-specific signal and riser drawings for component locations on your display. Support Display Control System Flow Overview Ledger Figure 5 shows the location of the... -
Page 10: Display Troubleshooting
Figure 8: SmartLink Relay Bank Display Troubleshooting Work with Daktronics help desk or experienced technicians to address display issues. See the following table for troubleshooting steps. Issue Issue Image Troubleshooting Steps... - Page 11 Verify the fiber cables from the Digital Media Player (DMP) to the PLR are connected. Call Daktronics help desk at 1-877-DAK- HELP (325-4357) and have them verify the content that was supposed to play was successfully uploaded and sent to the display.
- Page 12 Issue Issue Image Troubleshooting Steps If applicable, verify the fiber interconnects are installed. On displays with multiple sections or power entrances, verify the power interconnect cables between the display sections are connected. Check the modules at the beginning and end of the affected area. This issue can be caused by disconnected or bad SATA cables on both of those modules.
- Page 13 Measure the site power to verify it meets Daktronics requirements. If this issue is only seen with white or light-colored content, there is most likely a power issue. If there is insufficient power, work with an electrician to establish proper site power.
-
Page 14: Access Internal Components
Access Internal Components Rear Access DB-65 series digital billboards have lift-off doors that are secured with a tab in the top-left corner. Refer to Figure 9. 1� Place fingers in slot located at the top-left corner of the door. 2� While pulling up on the handle in the center of the door, pull the top-left corner of the door outward so it clears the tab located on the door. -
Page 15: Test And Remove Modules
Test and Remove Modules Module Lanyard Attachment Daktronics recommends attaching a module lanyard (located in the spare parts rack) whenever removing a module. To attach a module lanyard: 1� Attach one end of the module lanyard to a lanyard attachment ring on the top of the of the module. -
Page 16: Remove A Module (Rear Access)
6� Insert the ″ hex head wrench into the top access hole and turn approximately a quarter-turn clockwise or until you feel it latch in place. 7� Gently pull on the module to verify it is properly seated. Remove a Module (Rear Access) Required Tools: ″... -
Page 17: Remove A Module From Behind Internal Enclosures
Remove a Module from Behind Internal Enclosures Required Tools: ″ hex head wrench, module lanyard 1� Remove pins from one side of the enclosure (ISP, term panel, SmartLink, and spare parts rack). Refer to Figure 15. 2� While holding the enclosure, allow it to slowly rotate open and out of the way. -
Page 18: Remove A Fan Plenum
Remove a Fan Plenum Fan plenums may need to be removed because they restrict access to modules in the bottom row of each section. 1� Disconnect the power harness attached to the fan. Refer to Figure 18. 2� Press inward on the bottom of each side of the fan Figure 18: Fan Power Harness plenum. -
Page 19: Test And Replace Display
4� Verify the module is running a self-test. Remove the SATA cable and cycle power to the module to stop the self-test. For more information, see DD1944805, Performing a Daktronics Module Self-Test, in Section A: Figure 22: Module Self-Test Reference Documents (p�25). Replace Module Power Supplies The power supply provides power from the term panel to the module. -
Page 20: Test And Replace A Prolink Router
Test and Replace a ProLink Router A ProLink Router (PLR) sends the signal from the DMP-8000 to the modules via SATA cables. Click here to view a video about testing and replacing a ProLink Router. Test a PLR Before replacing a PLR, it may be beneficial to perform a self-test. -
Page 21: Replace A Prolink Router
5� Replace the PLR if the error persists after troubleshooting. Note: It is possible to have a break in just one path, so for example it is possible all of the modules may turn Yellow indicating “A” is healthy, but only some of them turn Magenta indicating a break in the “B”... -
Page 22: Control Equipment Overview, Service, And Replacement
Control Equipment Overview, Service, and Replacement Control Equipment Overview ISP Enclosure Ethernet Switch and Router The ISP enclosure contains all of the necessary equipment for the display to communicate over the DMP-8000 VIP-5160 Internet and schedule content. Figure 28 shows the equipment and Power Heater the equipment location within the... -
Page 23: Replace Control Equipment
Replace Control Equipment Replace the DMP-8000 1� Disconnect the incoming power to the DMP- 8000 by unscrewing the connector. 2� Disconnect the HDMI cable from the DMP- 8000. Refer to Figure 30. 3� Disconnect the network communication cable. 4� Loosen the screws holding the DMP-8000 bracket to the control enclosure. -
Page 24: Replacing The Router
6� Remove the four screws that secure the SmartLink the mounting plate. 7� Reverse Steps 1 - 6 to install the new SmartLink 8� Call Daktronics help desk and provide them with the new MEID number, circled in Figure 35. Figure 35: SmartLink... -
Page 25: Replace The Z-Filter
Replace the Z-Filter Required Tools: Phillips screwdriver 1� Unplug the 3-pin Mate-N-Lok power jack from the outside of the enclosure. 2� Disconnect the power cables from both sides of the Z-filter. Figure 36: Z-Filter 3� Remove the screws that secure the Z-filter to the back of the ISP enclosure. -
Page 26: Test And Replace The Multi-Direction
Test and Replace the Multi-Direction Light Sensor The table below lists the crucial items to check if there are issues with the MDLS. Item Image If there is a splice cable attached, inspect splice cable connection. Inspect the MDLS windows for cleanliness. Windows (x3) Check connections at back of display to make sure they are secure. -
Page 27: Access And Troubleshoot The Webcam
3� Return the webcam arm to the original position when servicing the webcam. 4� Replace and tighten the three short bolts. 5� Work with Daktronics help desk to verify the webcam is focused and functioning properly. Troubleshoot the Webcam Red LED... -
Page 28: 10 Display Maintenance
10 Display Maintenance Service Calls After addressing service issues on a service call, inspect the following items: • Check for loose modules. • Check for corrosion. • Check the display for signs of damage. • Check the control enclosure filters. Replace if needed. Replacement filters are located in the spare parts rack. -
Page 29: A Reference Documents
Reference Documents This appendix contains drawings and quick guides that are generic to Daktronics digital billboards. Project-specific drawings and documents take precedence over the documents in this section. Reference Documents DD1944805 Performing a Daktronics Module Self-Test ............DD2268420 How to Perform a PLR-6050 Self-Test .............. - Page 30 This page intentionally left blank.
-
Page 31: B Daktronics Warranty And Limitation
Daktronics Warranty and Limitation of Liability here Click to view Warranty and Limitation of Liability information. Daktronics Warranty and Limitation of Liability...
