FontanaShowers
FontanaShowers
©
©

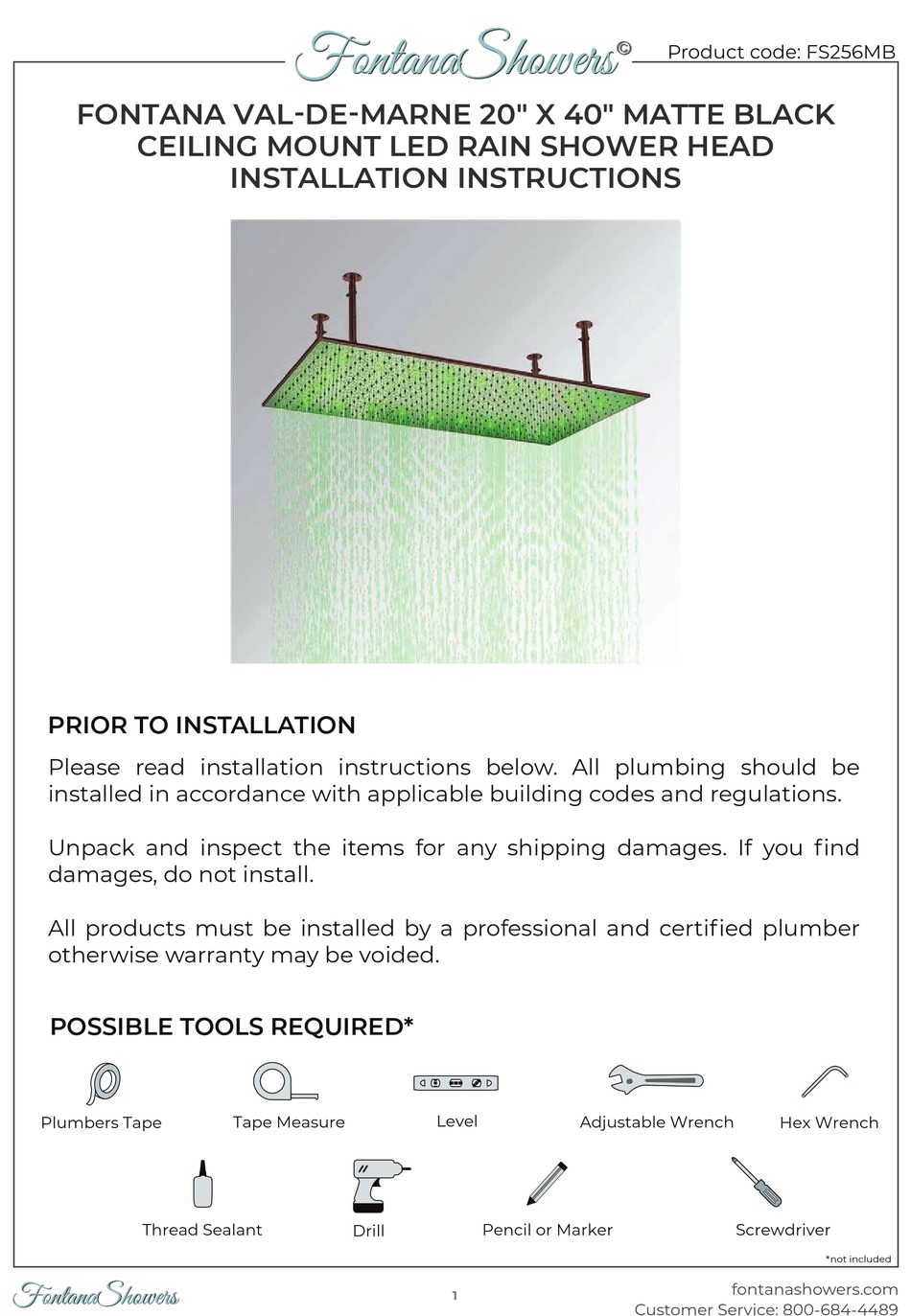

Product code: FS256MB

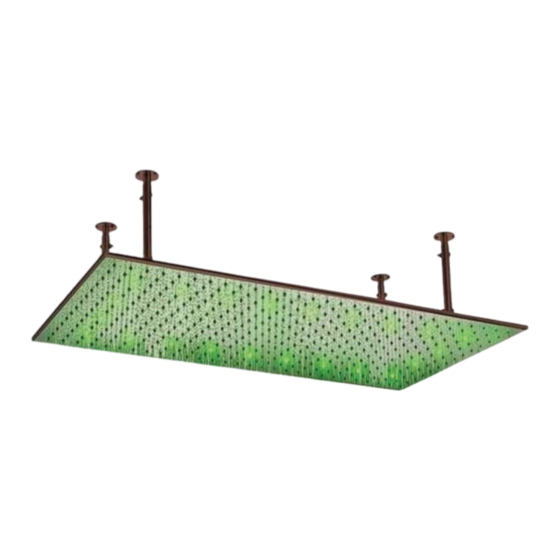

FONTANA VAL-DE-MARNE 20" X 40" MATTE BLACK
CEILING MOUNT LED RAIN SHOWER HEAD
INSTALLATION INSTRUCTIONS
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanashowers.com
FontanaShowers
FontanaShowers
1
Customer Service: 800-684-4489
Advertisement
Table of Contents
Related Manuals for Fontana Showers VAL-DE-MARNE FS256MB
Summary of Contents for Fontana Showers VAL-DE-MARNE FS256MB
- Page 1 FontanaShowers FontanaShowers © © Product code: FS256MB FONTANA VAL-DE-MARNE 20" X 40" MATTE BLACK CEILING MOUNT LED RAIN SHOWER HEAD INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations. Unpack and inspect the items for any shipping damages.
- Page 2 FontanaShowers FontanaShowers © © Shower Head Installations Instruction Parts: Step 1: Mark the 4 drilling positions then use the Ø6mm drill to drill holes on the wall according to the marked hole position. Step 3: Inset the plug(D) into the hole, hold the fix base (C) use the tapping screw (D) through fix base(C) holes, tighten the tapping screw (D) tighten the top shower fixed bar(E) and the inlet hose (F) with the fix base (C) fontanashowers.com...
- Page 3 FontanaShowers FontanaShowers © © Step 5: Fixed the top shower with the top shower fixed bar (E) , then connect with the inlet hose (F) . 2 Inlets for Rainshower are provided in big shower heads so the water disperses equally throughout the showerhead.
- Page 4 FontanaShowers FontanaShowers © © ( Images are for display purpose only and may vary from actual product) The LED light will change its color by detecting water temperature: 0-30°C (32-86°F): Blue LED 30-40°C (86-104°F): Green LED 40-50°C (104-122°F): Red LED 50-100°C (122-212°F): Flashing Red LED Note: The LED lights are powered by water flow, and will be activated once the water is turned on.
- Page 5 FontanaShowers FontanaShowers © © General Information All products manufactured and supplied by Fontana are safe and comply to legislative requirements. Providing they are installed correctly and receive regular maintenance in accordance with these instructions your user experience will not be affected Care &...
