Fontana Showers FS15046 Installation Instructions Manual

6" led intelligent thermostatic digital display touch panel wall mounted shower system
Hide thumbs

Advertisement

Quick Links

Download this manual
FontanaShowers
FontanaShowers
©
©
Product code: FS15046

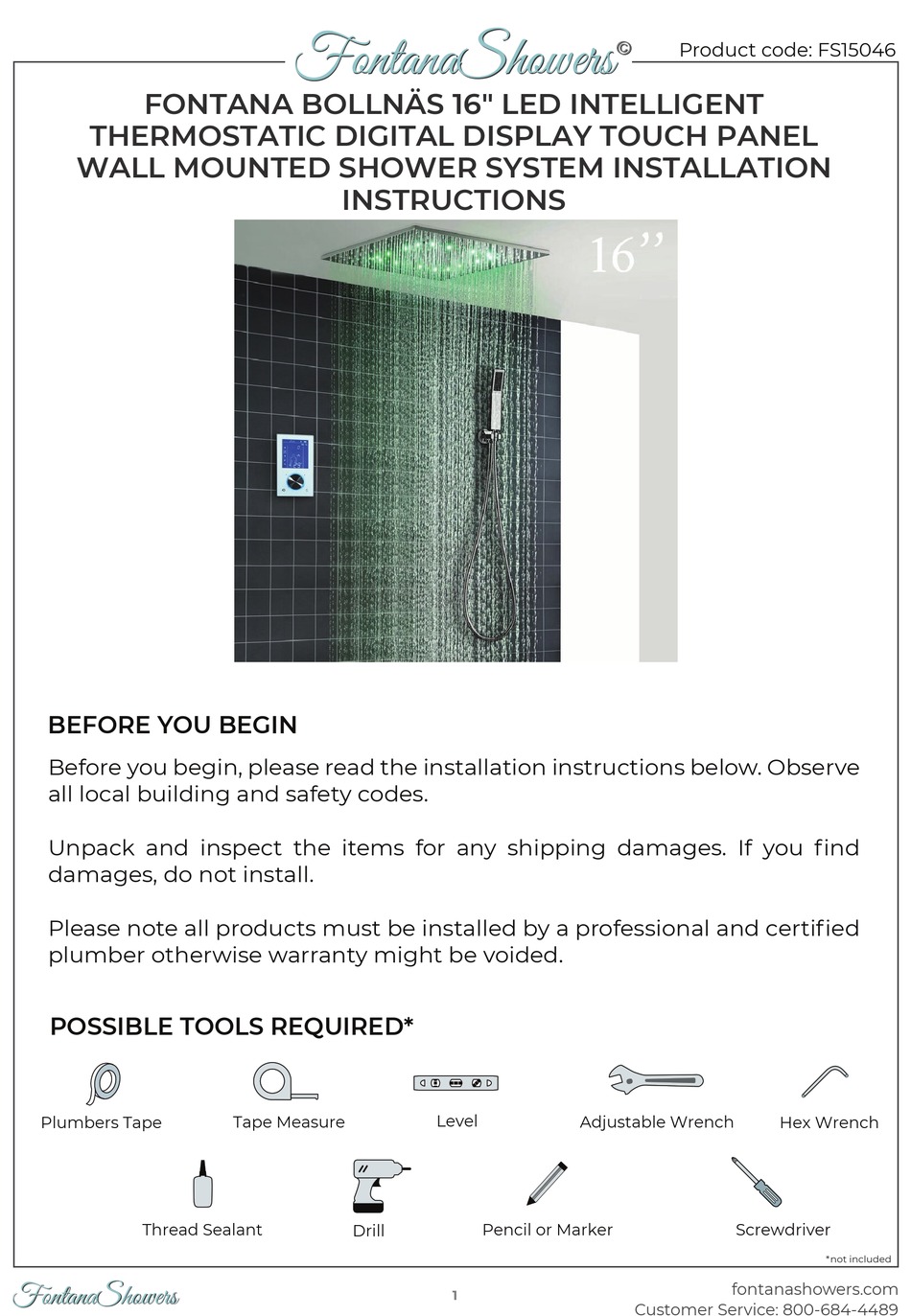

FONTANA BOLLNÄS 16" LED INTELLIGENT
THERMOSTATIC DIGITAL DISPLAY TOUCH PANEL
WALL MOUNTED SHOWER SYSTEM INSTALLATION
INSTRUCTIONS
BEFORE YOU BEGIN
Before you begin, please read the installation instructions below. Observe
all local building and safety codes.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
Please note all products must be installed by a professional and certified
plumber otherwise warranty might be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanashowers.com
FontanaShowers
FontanaShowers
1
Customer Service: 800-684-4489
