Fontana Showers FS256DOR Installation Instructions

Fontana val-de-marne 20" x 40" oil rubbed bronze square ceiling mount led rain shower head

FontanaShowers

Product code: FS256DOR

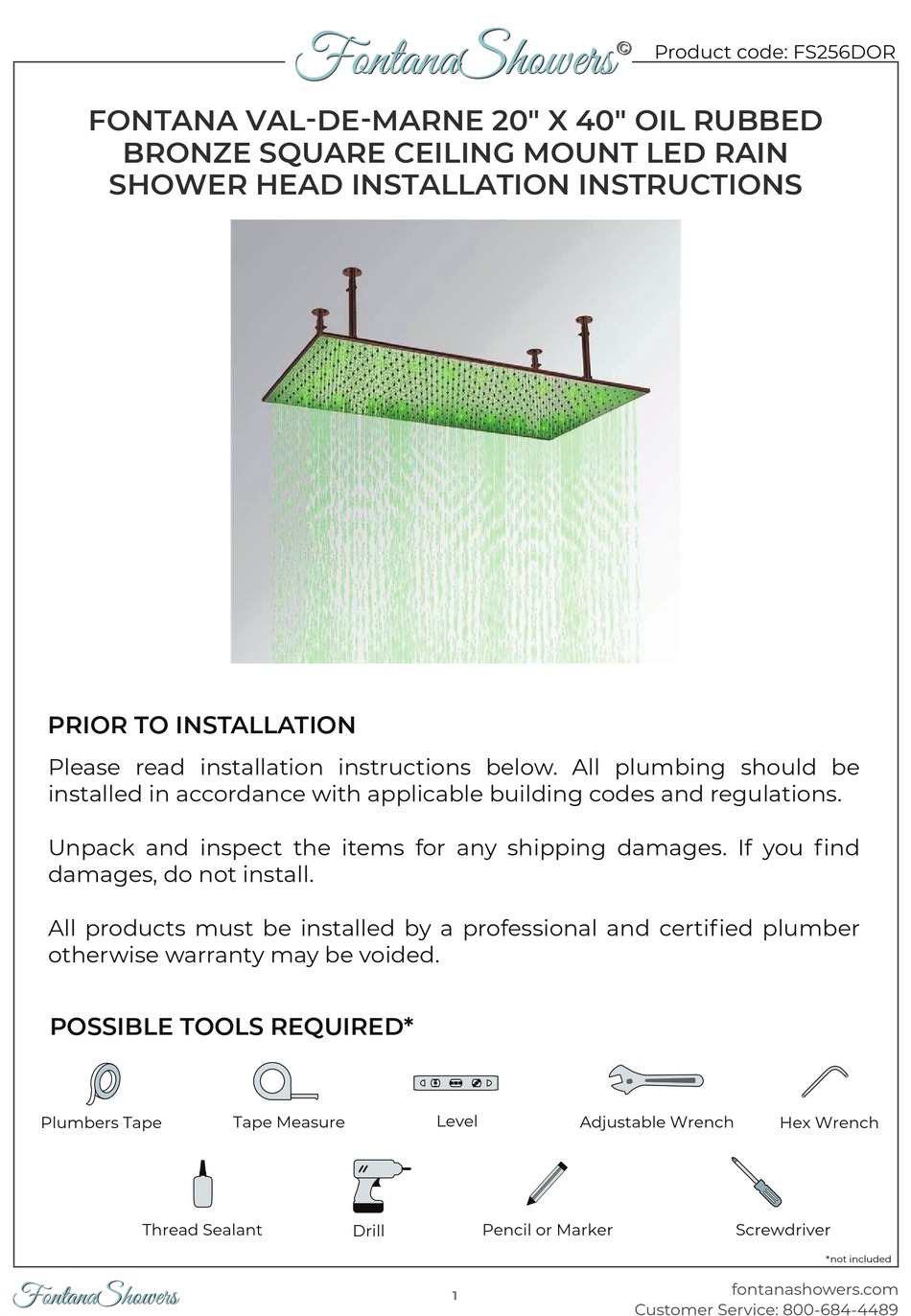

FONTANA VAL-DE-MARNE 20" X 40" OIL RUBBED

BRONZE SQUARE CEILING MOUNT LED RAIN

SHOWER HEAD INSTALLATION INSTRUCTIONS

PRIOR TO INSTALLATION

Please read installation instructions below. All plumbing should be

installed in accordance with applicable building codes and regulations.

Unpack and inspect the items for any shipping damages. If you ﬁnd

damages, do not install.

All products must be installed by a professional and certiﬁed plumber

otherwise warranty may be voided.

Level

Plumbers Tape

Tape Measure

Adjustable Wrench

Hex Wrench

Thread Sealant

Pencil or Marker

Screwdriver

Drill

*not included

fontanashowers.com

FontanaShowers

Customer Service: 800-684-4489

Table of Contents

Do you have a question about the FS256DOR and is the answer not in the manual?

Page 1 FontanaShowers FontanaShowers © © Product code: FS256DOR FONTANA VAL-DE-MARNE 20" X 40" OIL RUBBED BRONZE SQUARE CEILING MOUNT LED RAIN SHOWER HEAD INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations.
Page 2 FontanaShowers FontanaShowers © © Shower Head Installations Instruction Parts: Step 1: Mark the 4 drilling positions then use the Ø6mm drill to drill holes on the wall according to the marked hole position. Step 3: Inset the plug(D) into the hole, hold the ﬁx base (C) use the tapping screw (D) through ﬁx base(C) holes, tighten the tapping screw (D) tighten the top shower ﬁxed bar(E) and the inlet hose (F) with the ﬁx base (C) fontanashowers.com...
Page 3 FontanaShowers FontanaShowers © © Step 5: Fixed the top shower with the top shower ﬁxed bar (E) , then connect with the inlet hose (F) . 2 Inlets for Rainshower are provided in big shower heads so the water disperses equally throughout the showerhead.
Page 4 FontanaShowers FontanaShowers © © General Information All products manufactured and supplied by Fontana are safe and comply to legislative requirements. Providing they are installed correctly and receive regular maintenance in accordance with these instructions your user experience will not be affected Care &...
