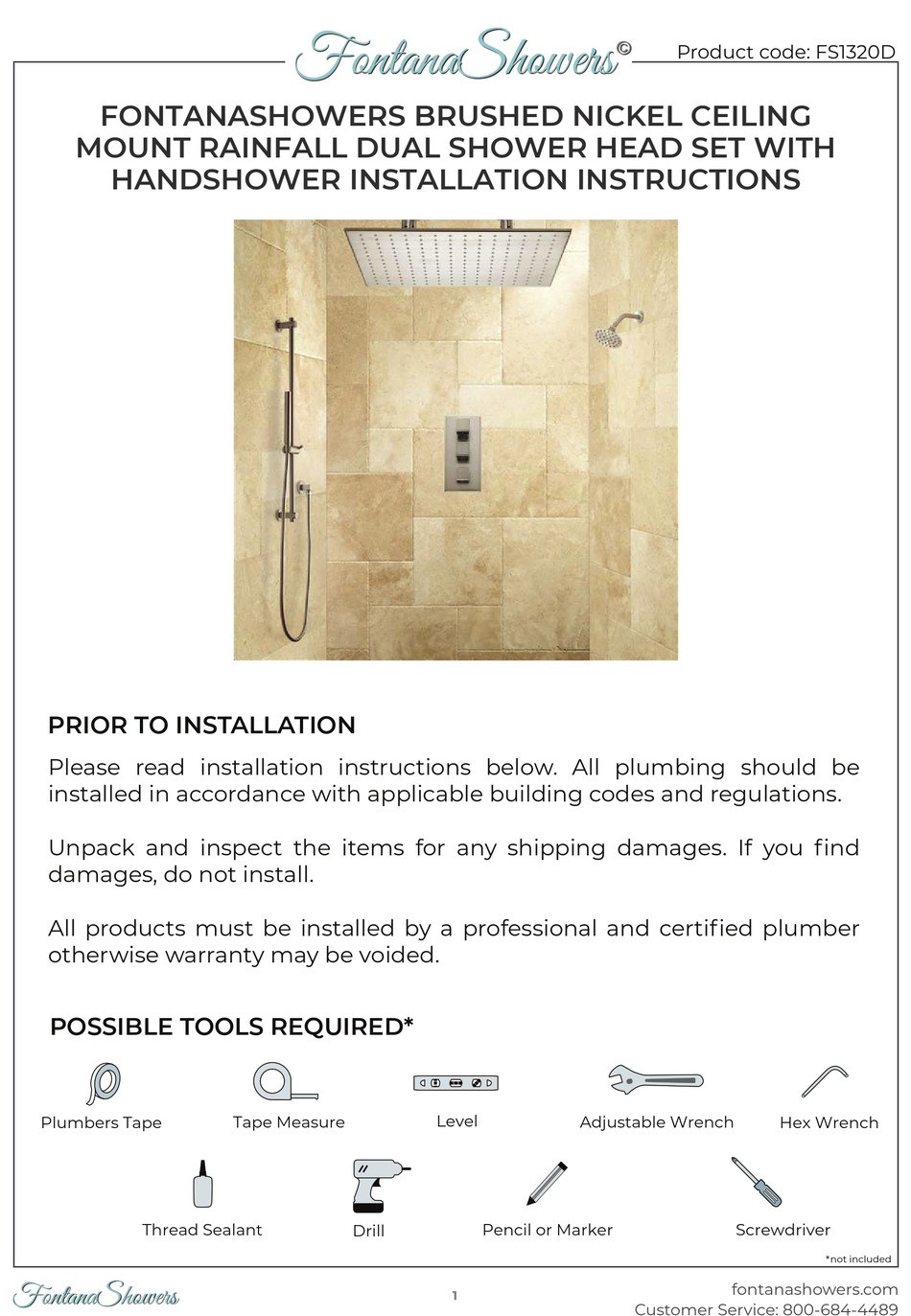

FontanaShowers
FontanaShowers
©
©
Product code: FS1320D

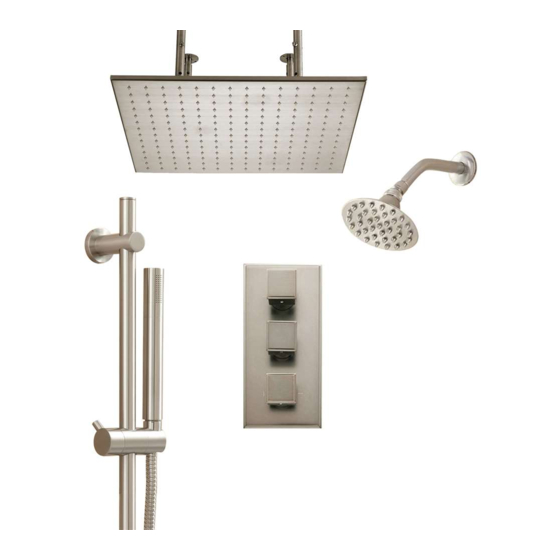

FONTANASHOWERS BRUSHED NICKEL CEILING
MOUNT RAINFALL DUAL SHOWER HEAD SET WITH
HANDSHOWER INSTALLATION INSTRUCTIONS
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanashowers.com
FontanaShowers
FontanaShowers
1
Customer Service: 800-684-4489
Advertisement
Related Manuals for Fontana Showers FS1320D
Summary of Contents for Fontana Showers FS1320D
- Page 1 FontanaShowers FontanaShowers © © Product code: FS1320D FONTANASHOWERS BRUSHED NICKEL CEILING MOUNT RAINFALL DUAL SHOWER HEAD SET WITH HANDSHOWER INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations.
- Page 2 FontanaShowers FontanaShowers © © Shower Head Installations Instruction Parts: Step 1: Mark the 4 drilling positions then use the Ø6mm drill to drill holes on the wall according to the marked hole position. Step 3: Inset the plug(D) into the hole, hold the fix base (C) use the tapping screw (D) through fix base(C) holes, tighten the tapping screw (D) tighten the top shower fixed bar(E) and the inlet hose (F) with the fix base (C) fontanashowers.com...
- Page 3 FontanaShowers FontanaShowers © © Step 5: Fixed the top shower with the top shower fixed bar (E) , then connect with the inlet hose (F) . 2 Inlets for Rainshower are provided in big shower heads so the water disperses equally throughout the showerhead.
- Page 4 FontanaShowers FontanaShowers © © Shower Head Installations Instruction Step 1: Step 2: 25mm Trim Ring Wall Slide chrome trim ring onto the appropriate end of the arm. Ensure that a minimum of 13±2mm of 1/2” connection thread protrudes past the finished wall. Simply screw the arm onto the connection.
- Page 5 FontanaShowers FontanaShowers © © Mixer Installations Instructions Step 1 Step 2 Anchor Positioning Tapping Screw 1 Tapping Screw 2 Button Cover Screw 1 Diverter Handle Temp. Handle Rough-in Body On/Off Plate Handle Hex Wrench Step 3 ( Connection) Function 1 Function 2 Hot water Cold water...
- Page 6 FontanaShowers FontanaShowers © © Hand-Held Shower Installations Instructions Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489...
- Page 7 FontanaShowers FontanaShowers © © Step 7 Step 8 Step 9 Step 10 Step 11 Step 12 fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489...
- Page 8 FontanaShowers FontanaShowers © © Step 13 Step 14 Step 15: Step 16 (Hand Shower Elbow Installation) Step 17 Step 18 fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489...
- Page 9 FontanaShowers FontanaShowers © © Step 19 Step 20 Step 21 Step 22 Open The Closed Cover Of The Shower Holder And Take Out The Screws. Drill Two Holes Size 0.2" (6mm) On The Wall According To The Hole Position Of The Shower Holder Use A Hammer To Break 2 Plastic Wall Plug Into Two Holes.
-
Page 10: General Information
FontanaShowers FontanaShowers © © General Information All products manufactured and supplied by Fontana are safe and comply to legislative requirements. Providing they are installed correctly and receive regular maintenance in accordance with these instructions your user experience will not be affected Care &...
