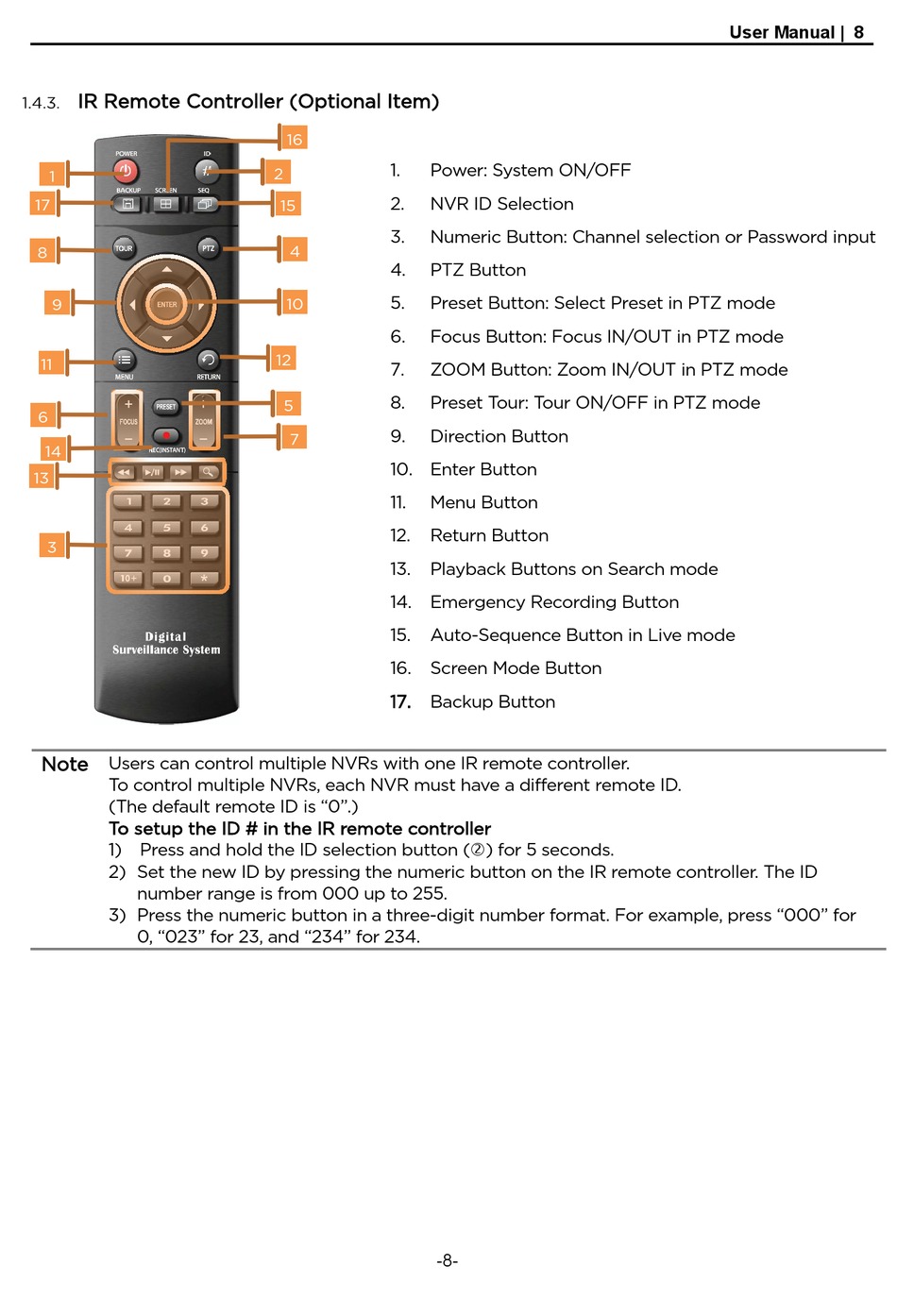

IR Remote Controller (Optional Item)
1
17
8
9
11
6
14
13
3
Note Users can control multiple NVRs with one IR remote controller.
To control multiple NVRs, each NVR must have a different remote ID.
(The default remote ID is "0".)
To setup the ID # in the IR remote controller
1) Press and hold the ID selection button () for 5 seconds.
2) Set the new ID by pressing the numeric button on the IR remote controller. The ID
number range is from 000 up to 255.
3) Press the numeric button in a three-digit number format. For example, press "000" for
0, "023" for 23, and "234" for 234.
16
1. Power: System ON/OFF
2
2. NVR ID Selection
15
3. Numeric Button: Channel selection or Password input
4
4. PTZ Button
5. Preset Button: Select Preset in PTZ mode
10
6. Focus Button: Focus IN/OUT in PTZ mode
12
7. ZOOM Button: Zoom IN/OUT in PTZ mode
8. Preset Tour: Tour ON/OFF in PTZ mode
5
9. Direction Button
7
10. Enter Button
11. Menu Button
12. Return Button
13. Playback Buttons on Search mode
14. Emergency Recording Button
15. Auto-Sequence Button in Live mode
16. Screen Mode Button
17. Backup Button
-8-
