Network Attached Storage
DW-BJ1NAS4T
DW-BJ1NAS6T
DW-BJ1NAS8T
DW-BJ1NAS10T
Items
12V DC Adapter &
12V DC Adapter &
Power Cable
Power Cable
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search you product by entering the part number in the 'Search by Product' search bar. Results for applicable part num-
bers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guide (QSG), software and firmware will appear in
the results.
Attention: This document is intended to serve as a quick reference for initial set-up.
See the DW Spectrum full manual for more information on features and functionality.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Non-RAID
Single
DW-BJNAS4T
DW-BJNAS6T
DW-BJNAS8T
DW-BJNAS10T
DW-BJNAS12T
DW-BJNAS16T
DW-BJNAS20T
Default login Information for Blackjack
Username : admin
Default login Information for Blackjack
Username : admin
RAID1
Extended
DW-BJNAS8TR
DW-BJ2NAS8T
DW-BJ2NAS12T
DW-BJNAS12TR
DW-BJ2NAS16T
DW-BJNAS16TR
DW-BJ2NAS20T
DW-BJNAS20TR
Password : admin1234
®
NAS™
Password : admin1234
WHAT'S IN THE BOX
NAS
®
Raid1
DW-BJ2NASR4T
DW-BJ2NASR6T
DW-BJ2NASR8T
DW-BJ2NASR10T
®
NAS™
Quantity
1
User Manual
set
1 Set
digital-watchdog.com
1

Advertisement

Table of Contents
loading

Related Manuals for Digital Watchdog Blackjack NAS

Summary of Contents for Digital Watchdog Blackjack NAS

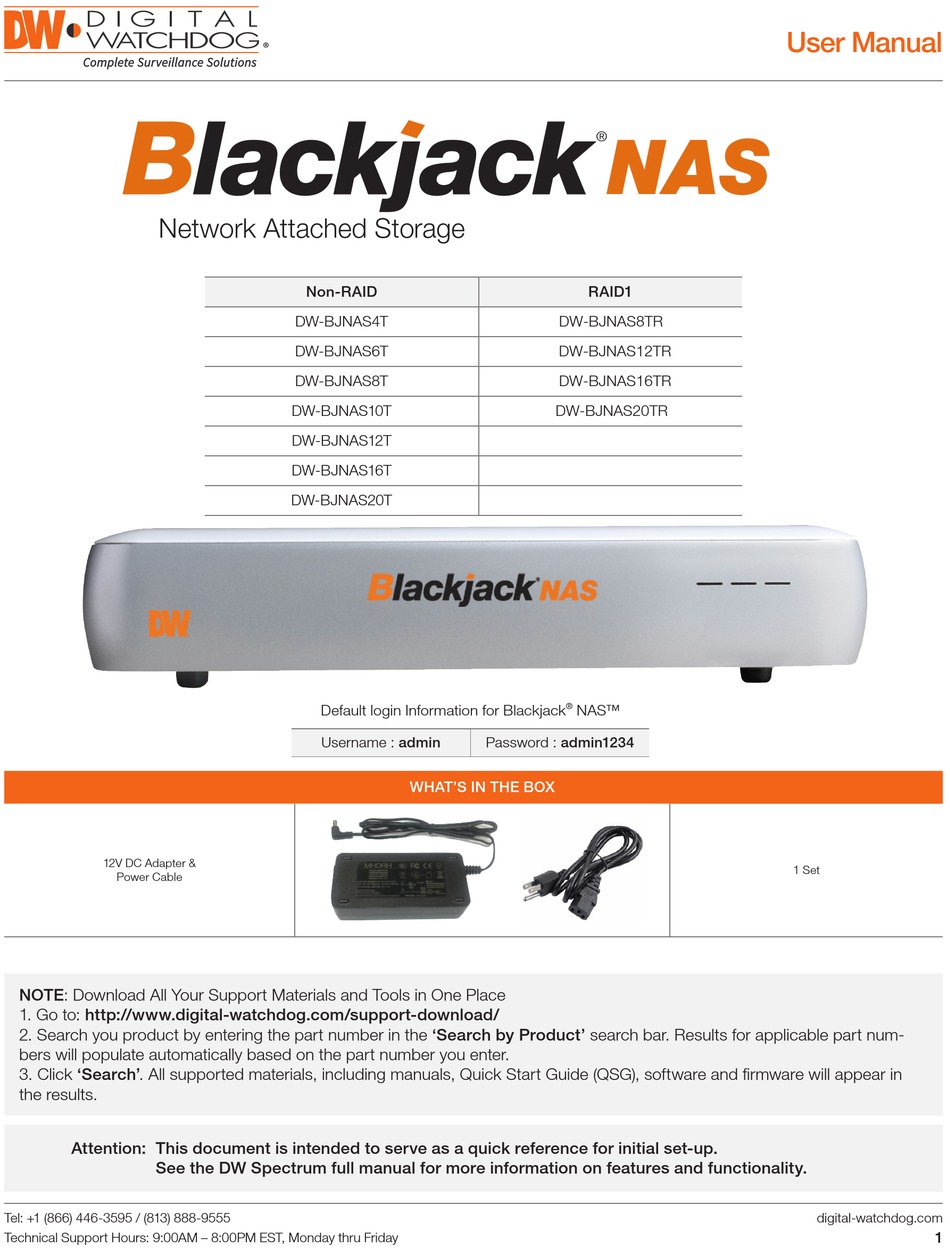

  • Page 1 User Manual ® Network Attached Storage Non-RAID RAID1 Single Extended Raid1 DW-BJNAS4T DW-BJNAS8TR DW-BJ1NAS4T DW-BJ2NAS8T DW-BJ2NASR4T DW-BJ1NAS6T DW-BJ2NAS12T DW-BJ2NASR6T DW-BJNAS6T DW-BJNAS12TR DW-BJ1NAS8T DW-BJ2NAS16T DW-BJ2NASR8T DW-BJNAS8T DW-BJNAS16TR DW-BJ1NAS10T DW-BJ2NAS20T DW-BJ2NASR10T DW-BJNAS10T DW-BJNAS20TR DW-BJNAS12T DW-BJNAS16T DW-BJNAS20T ® Default login Information for Blackjack NAS™...
  • Page 2 Important Read Before System Operation. Follow these details to prevent material damage or personal injury. Warning 1. Use the power cord, which is supplied or recommended by the supplier, or it may cause fire. 2. Do not disassemble or reassemble the product. It may cause malfunction or fire. 3.

  • Page 3: Table Of Contents

    User manual Table of Contents Getting started..........................4 1.1. Checking supplied items ......................4 1.2. Blackjack ® NAS hardware overview....................4 Setup ............................... 5 2.1. Setting up the Blackjack ® NAS ...................... 5 2.2. Add storage to DW Spectrum ® IPVMS ..................

  • Page 4: Getting Started

    User manual 1. Getting started 1.1. Checking supplied items Make sure that you have following items supplied. If any of these items are missing or damaged, notify your vendor immediately. Keep the packing utilities for moving or storage purposes. Items Photo Quantity 12V DC Adapter &...

  • Page 5: Setup

    4. The software will scan your network for all supported cameras and display the results in the table. Allow up to 5 seconds for the IP Finder to find the camera on the network. 5. Find “Blackjack NAS” on the devices list, click on the “Click” button in the column of “IP Conf.” NOTE Initial network information •...

  • Page 6: Add Storage To Dw Spectrum Ipvms

    User manual 2.2. Add storage to DW Spectrum ® IPVMS 1. Open DW Spectrum ® Client by double click on the DW Spectrum ® icon 2. Right click on the name of the server you want to assign the external storage to. The server’s name will be listed on the resources panel.
  • Page 7 Login name: admin, Password: admin1234 6. If you are adding a Blackjack ® NAS model with 2HDDs (DW-BJNAS12T, DW-BJNAS16T and DW-BJNAS20T), add the second external storage by using the following URL:\\(Blackjack NAS IP Address)\Recording2 E.g. \\192.168.0.212\Recording2 7. Click on the “OK” button.

  • Page 8: Web Manager

    User manual 3. Web manager The Blackjack ® NAS web manager allows you to check on the status of the unit and change settings remotely with no need to install a separate application. 3.1. Web login ① Open a web browser and enter the address below in the address bar. The login screen below will be displayed.

  • Page 9: Storage Management

    User manual 3.2. Storage management ① To manage the storage setting, click on the “Storage” tab. You can view the storage mode, usage, connection information and internal HDDs information. ② To format the HDDs, click on the “FORMAT” button. The storage format screen will pop up. a.
  • Page 10 User manual ④ To view the status of the SAMBA connections, click on the “SAMBA CONNECTION STATUS” button. ⑤ To View the S.M.A.R.T. information of the HDD, click on the link of the health status in the column of the “Health”.

  • Page 11: General Management

    ② To update a firmware, click on the “UPDATE” button. a. Select the firmware update file. b. Click on the “OK” button. c. After updating the firmware, the Blackjack NAS will restart. ③ To restore Blackjack ® NAS to default settings, click on the “FACTORY RESET” button. The confirmation window below will pop up.

  • Page 12: Network Management

    User manual 3.4. Network management ① To manage the network setting, click on the “System” tab and then click on the “Network”. a. Select the network type “Static” or “Dynamic”. b. If you select the “Static” option, you need to manually enter the IP address, subnet mask and default gateway information.

  • Page 13: Smtp (E-Mail) Management

    User manual 3.5. SMTP (e-mail) management ① To manage the SMTP (e-mail) settings, click on the “System” tab and then click on the “SMTP (e- mail)”. ② To send a notification email to a designated email account when an event occurs, such as device malfunction, check the “Use”...

  • Page 14: Log Management

    User manual a. To setup the time zone, select the time zone. b. To setup time manually, check the “Manual” option and select date and time. c. To synchronize with a time server (NTP), check the “synchronize with time sever (NTP)” option and enter the address of the time server.
  • Page 15 User manual East Coast Headquarters Office: 5436 W Crenshaw St, Tampa, FL 33634 West Coast Headquarters Office: 16220 Bloomfield Ave., Cerritos, CA 90703 PH: 866-446-35951 FAX: 813-888-9262 www.Digital-Watchdog.com Technical Support: USA & Canada 1+ (866) 446-3595 International 1+ (813) 888-9555 French Canadian 1+ (514) 360-1309 Support Hours: Monday-Friday 9:00am to 8:00pm EST...
