Assembly Instructions
Caution: You must read this before you proceed
Please look in the First Support Leg for hardware packs.
Sun Lounger
Caution: This Sun Lounger is NOT a TOY
Keep your child/ children at bay during the assembly process.
Whenever lifting or moving the Sun Lounger and to prevent damage to the
Sun Lounger, two adults may be needed to execute these actions.
Noble House Home Furnishings LLC
Page 1 of 22

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sun Lounger and is the answer not in the manual?

Questions and answers

Related Manuals for Noble House Home Furnishings Sun Lounger

Summary of Contents for Noble House Home Furnishings Sun Lounger

  • Page 1 Caution: This Sun Lounger is NOT a TOY Keep your child/ children at bay during the assembly process. Whenever lifting or moving the Sun Lounger and to prevent damage to the Sun Lounger, two adults may be needed to execute these actions.

  • Page 2: Part List

    Part List Label Picture Description Right Foldable Seat Panel Left Foldable Seat Panel Upper Seat Bar Lower Seat Bar First Leg Second Leg First Support Leg Noble House Home Furnishings LLC Page 2 of 22...
  • Page 3 Second Support Second Leg Bar First Leg Bar Long Top Bar Short Top Bar Noble House Home Furnishings LLC Page 3 of 22...
  • Page 4 Label Picture Description ① Bolt (M6x30mm) ② Bolt (M6x45mm) ③ Bolt (M6x70mm) Sleeve Nut ④ (M6x15mm) Screw ⑤ (M6x50mm) Screw ⑥ (M6x65mm) Screw ⑦ (M6x80mm) Screw ⑧ (M6x100mm) ⑨ Allen Wrench Page 4 of 22 Noble House Home Furnishings LLC...

  • Page 5: Assembly Preparation

    Assembly Preparation Before Beginning Assembly: Noble House Home Furnishings LLC Page 5 of 22...

  • Page 6: Assembly Steps

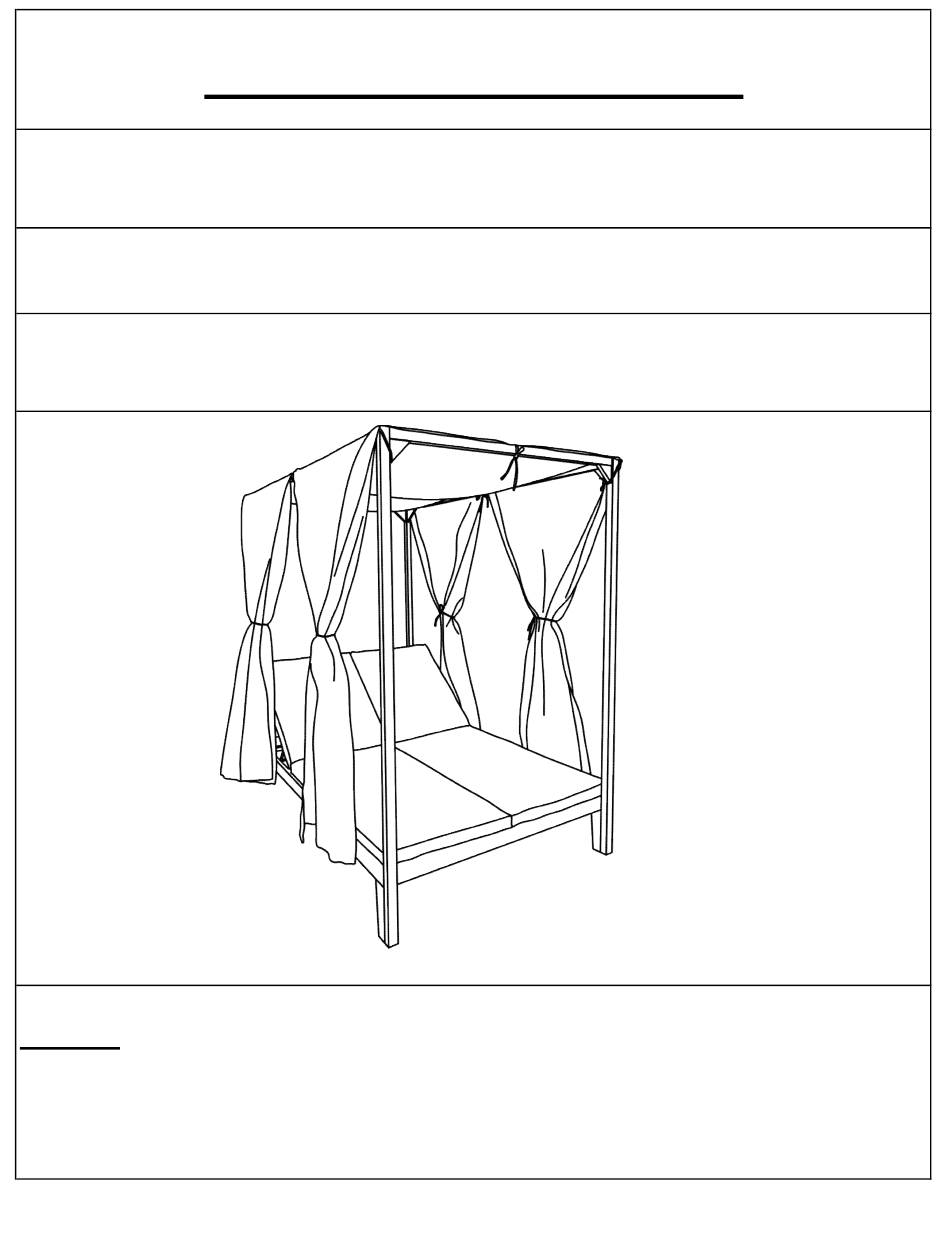

    This Sun Lounger has multiple parts and may require up to 70 minutes to assemble. To give you an overview of the Sun Lounger parts, the above picture is to help you put the various parts into perspective. Please read through the instructions below to familiarise yourself with the parts and steps before assembly.
