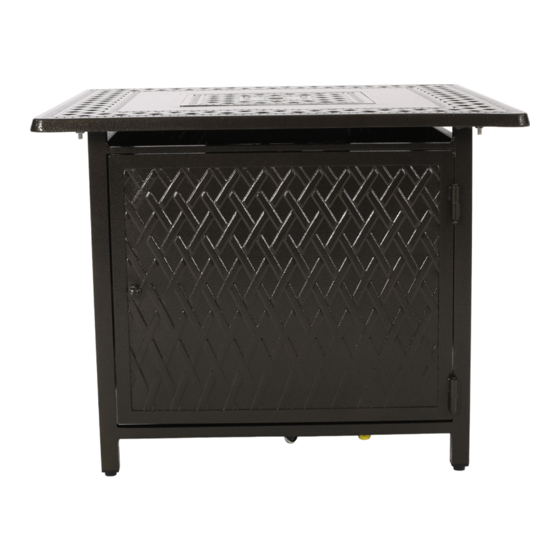

- Page 1 Page 1 of 27 OWNER's INSTRUCTIONS MANUAL Gas Fire Table User's Guide and Instruction Manual ITEM#69012.00BZE-37K Noble House Home Furnishings LLC Page 1 OF 27...
- Page 2 Page 2 of 27 Noble House Home Furnishings LLC Page 2 OF 27...
-
Page 3: Limitation Of Warranty And Liability
This Limitation of Warranty and Liability may not be amended by any oral or written agreement. Noble House Home Furnishings LLC Page 3 OF 27... - Page 4 3. Move yourself and all persons away from the immediate area. 4. Only when everyone is at a safe distance away from the Fire Table / Column, contact your Gas Supplier or Fire Department for help. Noble House Home Furnishings LLC Page 4 OF 27...
- Page 5 • DO NOT sit or rest hands or feet on this Fire Table / Column. • Never place hands or fingers onto upper portion of this unit while in use. • Keep all electrical cords and fuel supply hose away from heated surfaces. Noble House Home Furnishings LLC Page 5 OF 27...
- Page 6 • DO NOT set the Protective Cover(C) over the unit until the Fire Table / Column is turned off and completely cooled down (where applicable). • Check for leaks after not using the unit for long periods of time. Noble House Home Furnishings LLC Page 6 OF 27...
- Page 7 The appliance should be inspected before use. If you suspect there are issues, contact a Qualified Service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners and circulating airways of the appliance are kept clean. Noble House Home Furnishings LLC Page 7 OF 27...
- Page 8 Herebelow is an exact visual display of the Operation Tablet as found on your Fire Table / Column. Read carefully before using. For Technical Support, please call: 1-818-435-3985 Monday-Friday 8 a.m. to 5 p.m. PST Noble House Home Furnishings LLC Page 8 OF 27...
- Page 9 In some cases, some Customers purchases separate Gas Tank Holder to hold the Gas Tank. In this case, the 5 feet distance between the Fire Table/Column to the Gas Tank applies too. Noble House Home Furnishings LLC Page 9 OF 27...
- Page 10 If you smell gas or a leak is discovered, IMMEDIATELY turn the gas valve off, and disconnect the Propane Gas tank. Do not use the appliance until the leak is repaired. Noble House Home Furnishings LLC Page 10 OF 27...
- Page 11 Technical Support and / or seek a Qualified Service Technician. The line art below demonstrates the internal components of the Burner. For your convenience, all of the above components are individually described here below. Noble House Home Furnishings LLC Page 11 OF 27...
- Page 12 Ground Wire Ignition Pin Burner Plate Main Frame of Fire Table Door Burner Ring Nozzle Corrugated Pipe Switching Valve Regulator Valve with Gas Hose Control Knob Ignitor Adjustable Leveller CSA Warning Label Noble House Home Furnishings LLC Page 12 OF 27...
-
Page 13: Assembly Instruction
If any parts are missing or damaged, DO NOT attempt to assemble the product. Part H. Assembly Instruction Part list Item Picture Description Lava Rocks 2.5kg AAA Battery Protective Cover Removable Burner Cover Burner Table Top Door Panel Noble House Home Furnishings LLC Page 13 OF 27... - Page 14 Picture Description ① Stud(M8x30mm) ② Washer(M8) ③ Spring Washer(M8) ④ Nut(M8) ⑤ Bolt(M6x25mm) ⑥ Bolt(M6x18mm) ⑦ Washer(M6) ⑧ Rubber Cap(M8) ⑨ Wrench ⑩ Allen Key ⑪ Screwdriver ⑫ Extra Adjustable Leveller Noble House Home Furnishings LLC Page 14 OF 27...
-
Page 15: Assembly Steps
Noted: After assembling frame, the mounting position at the bottom of Side Panel(H) should face down. Mouning Position far away from Door Panel(G) Mouning Position near ⑩ Door Panel(G) side Bottom Mouning Position far away from Door Panel(G) Mouning Position near Door Panel(G) Noble House Home Furnishings LLC Page 15 OF 27... - Page 16 Stand the table right side up.Now, fully and securely, tighten all nuts and bolts, at all joints. Add a Rubber Cap(⑧) on all bolt ends to protect skin or clothing from getting snagged. Noble House Home Furnishings LLC Page 16 OF 27...
- Page 17 8.Adjust the Legs' pre-installed Levellers until the Table is level with the ground. An Extra Adjustable Leveller(⑫) is available if needed. Caution: This Fire Table can only be used on a flat, level surface. Noble House Home Furnishings LLC Page 17 OF 27...
- Page 18 Make sure the bottom of the Gas Tank is placed completely into the Tank Support Ring(K). Turn the preassembled wing screw in a clockwise direction into the Nut to secure the Propane Gas Tank tightly. Noble House Home Furnishings LLC Page 18 OF 27...
- Page 19 6. Remove the Electronic Ignitor Cap(14) on the electronic Ignitor(14) by unscrewing and slide the Battery(B) into the battery slot(14). Make sure the positive side of the Battery( B ) faces outwards. Screw the Electronic Ignitor Cap(14) over the battery, tightly. Noble House Home Furnishings LLC Page 19 OF 27...
- Page 20 Note: Do not place more than 2.5KG of lava rocks above the burner holes. Doing so will suffocate the flame. To ensure proper functioning, the Guard(01) on the Burner(08) should never have lava rocks(A) covering it. Noble House Home Furnishings LLC Page 20 OF 27...
-
Page 21: Safety Information
Before each use, inspect the Gas Hose(12). Replace the Gas Hose(12) if there are any signs of cutting, wear or abrasion. Before you light your Fire Table / Column, please proceed / adopt the following steps : Noble House Home Furnishings LLC Page 21 OF 27... - Page 22 1. Turn Control Knob(13) clockwise to the “OFF” position. 2. Close the Cylinder Valve(19) on the Propane Gas tank if you DO NOT intend to use it for a long time. Noble House Home Furnishings LLC Page 22 OF 27...
- Page 23 Column would still require proper care and maintenance to ensure the integrity of the surface. • Please see below for recommendations on maintaining your Fire Table / Column surface for years of extended use: Noble House Home Furnishings LLC Page 23 OF 27...
-
Page 24: Troubleshooting
Below is a simple guide on frequently asked questions / frequently occurring issues. Read through carefully and execute accordinlgy and adequately. Whenever you are uncertain, please contact Qualified Technician Services and/or your local Fire Department. Noble House Home Furnishings LLC Page 24 OF 27... - Page 25 High or gusting winds Check that the Gas tank isn’t empty. Flame blows out No Gas flow easily See ‘Sudden drop in gas flow’ above Excess flow safety valve has been activated Noble House Home Furnishings LLC Page 25 OF 27...
-
Page 26: Warranty
Please contact the manufacturer for replacement parts. CONTACT Part Q. If you have any questions or concerns, our Trained Staff are ready to assist you. Contact: 1-818-435-3985 Monday-Friday 8 a.m. to 5 p.m. PST Noble House Home Furnishings LLC Page 26 OF 27... - Page 27 Page 27 of 27 Noble House Home Furnishings LLC Page 27 OF 27...
