Summary of Contents for Retevis RB35

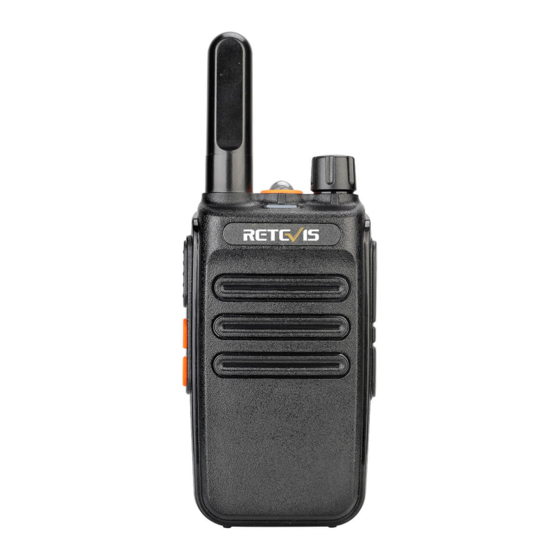

- Page 1 RB35 TWO WAY RADIO USER’S MANUAL UHF(462.5500-462.7250MHz) Super Receiving Scanning Torch Alarm Function Channel Lockout Monitor High-Low Power Selection Busy Channel Lockout Low Battery Warning Special Signaling 50 CTCSS/208 DCS...
-
Page 2: Charging The Battery
Charging the Battery 1.The battery is not charged in the factory, please charge the battery under the environmental temperature 5—40℃ before using. 2.After purchasing or long-term storage(more than two months),charging the battery for the first time can not reach its saturation capacity,repeat charge/discharge for twice or three times to make battery capacity achieve the best state. - Page 3 ·Torch Press 【UP】 key for two seconds to turn on the flashlight, press 【 DOWN】key to turn it off. ·Channel Lockout Press both【UP】【DOWN】keys to lock; Operate them again to unlock. ·Scanning It is convenient for the user to search for calls from other channels. When defined the side key down button on the software with the scan function, long press down button for 2 seconds, radio will active the scan function.
- Page 4 · VOX This function can be voice activated so the user doesn’t have to press the PTT key. Switch to Channel 7, turn off the transceiver, then press the 【 UP】 key and turn on the transceiver at the same time to switch between the ON and OFF of the VOX function.
-
Page 5: Technical Parameters
Technical Parameters SPECIFICATIONS Frequency Range 462.5500-462.7250MHz Supply Power DC3.7V Memory Channel Antenna Configuration Integrated antenna Work Mode Co/Differ-frequency Simplex Communication Ground Method Cathode Dimension 109.8*57.5*32mm TRANSMITTER Output Power ≤2W Modulation Mode FM(F3E) Max.Frequency Deviation ≤5KHz Sparious Radiation ≤7.5μW Preemphasis Character Per Octave 6dB Emission Current ≤1000mA... -
Page 6: Rf Energy Exposure And Product Safety Guide For Portable Two-Way Radios
RF energy, which when used improperly, can cause biological damage. All Retevis two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios. - Page 7 Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.
- Page 8 FCC Requirements: This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. (Licensed radios are applicable); This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (Other devices are applicable) (1) This device may not cause harmful interference, and...
- Page 9 —Consult the dealer or an experienced radio/TV technician for help. CE Requirements: •(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
- Page 10 (rechargeable batteries) must be taken to designated collection locations at the end of their working life. Do not dispose of these products as unsorted municipal waste. Dispose of them according to the laws in your area. IC Requirements: Licence-exempt radio apparatus This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’...
- Page 11 •During transmissions, your radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. •DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.
-
Page 12: Hand-Held Mode
•When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits. -
Page 13: Electromagnetic Interference/Compatibility
Phone Mode •When placing or receiving a phone call, hold your radio product as you would a wireless telephone. Speak directly into the microphone. Electromagnetic Interference/Compatibility NOTE: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. -
Page 14: Protect Your Hearing
•Turn off your radio in any facility where posted notices instruct you to do so, hospitals or health care facilities (Pacemakers, Hearing Aids and Other Medical Devices) may be using equipment that is sensitive to external RF energy. •Turn off your radio when on board an aircraft. Any use of a radio must be in accordance with applicable regulations per airline crew instructions. -
Page 15: Safety Operation
Avoid Burns Antennas •Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with the skin when the radio is in use, a minor burn can result. Batteries (If appropriate) •When the conductive material such as jewelry, keys or chains touch exposed terminals of the batteries, may complete an electrical circuit (short circuit the battery) and become hot to... - Page 16 Retevis accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations. • For a list of Retevis-approved accessories for your radio model, visit WARNING the following website: http://www.Retevis.com...
- Page 17 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: •...
- Page 18 Shenzhen Retevis Technology Co.,Ltd. Add: 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web: www.retevis.com E-mail: info@retevis.com Facebook: facebook.com/retevis Made In China...
