Retevis RB89 User Manual

Hide thumbs

Advertisement

Quick Links

RB89
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the RB89 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Retevis RB89

Summary of Contents for Retevis RB89

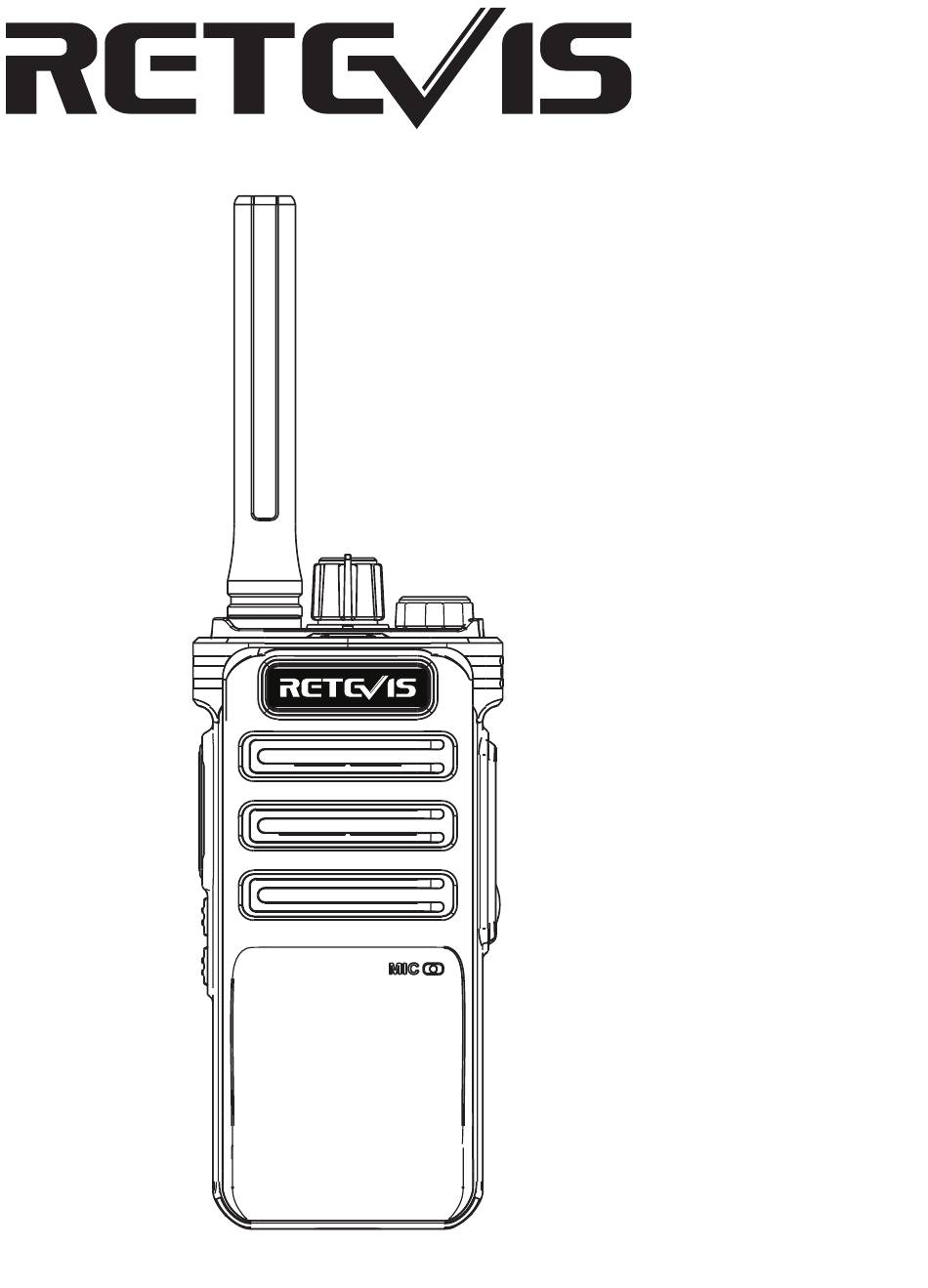

  • Page 1 RB89 USER’S MANUAL...

  • Page 2: Table Of Contents

    Function operation -------------------------------------------------------------------02 Factory setting -----------------------------------------------------------------------05 Technical Indicators -----------------------------------------------------------------06 WARNING -----------------------------------------------------------------------------07 For downloading further resources: Brochures, Software/Firmware, Manual etc, Pls contact your direct reseller first OR go to website retevis.com and check “support” in the each product link to download it.

  • Page 3: Warning

    Warning Please read this manual carefully before using this radio. Please do not charge the radio in flammable, explosive, and no radio signal places (such as gas stations and the airport). Please do not operate the radio without a license to the extent prohibitive by law. Please do not expose to sunlight for long and keep away from heating equipment.

  • Page 4: Familiar With This Radio

    Familiar with this radio. Antenna Volume / power knob Flashlight Indicator remote headset / programming PTT button cable connector Speaker PF1 button / channel up PF2 button / channel down Charging instruction Charging mode: Plug the radio into a charger. The indicator flash red in charging, and fully charging turns green. charging indicator...

  • Page 5: Function Operation

    Function operation 1. Power on/off 1.1 Turn the Power switch/Volume control clockwise. You will hear a click indicating the transceiver is ON. 1.2 Turn the Power switch fully counterclockwise to turn the radio OFF. 2. Volume adjustment 2.1 In receiving status, clockwise the volume/power knob to increase volume. 2.2 In receiving status, counterclockwise the volume/power knob to down the volume.
  • Page 6 the channel is locked. 14. Scan (Carrier Scan) Defined the PF1/PF2 button is the Scan function in the software. Long press the PF1/PF2 button, start scanning after a beep, receiving when scanning a valid signal, and re-enter the scanning mode after 5 seconds when the signal disappears. Long press the PF1/PF2 button again, and turn off the scan function after a beep tone.

  • Page 7: Factory Setting

    Charging: Red light. Full charge: Red light off. 18. Pairing your radio with the Bluetooth headset operation steps 1. Press the power on/off button for 5 seconds on your Bluetooth headset in power-off status, red blue lights flash and go into pairing mode. 2.

  • Page 8: Technical Indicators

    Technical Indicators Frequency range GMRS Channel number Audio distortion <5% Operating temperature －20℃+50℃ Antenna impedance 50Ω Transmit power ≤5W Frequency stabilization ±2.5ppm Maximum Deviation Wideband: ≤5kHz; Narrowband: ≤2.5kHz Stray radiation TX≤0.25uW@-36dBm; RX≤2nW@-57dBm Modulation mode Wideband：16KφF3E；Narrowband：11 KφF3E Emission current ≤1500mA Receiver Sensitivity Wideband: ≤0.
  • Page 9 Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.
  • Page 10 —Consult the dealer or an experienced radio/TV technician for help. CE Requirements: •(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
  • Page 11 When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits.

  • Page 12: Warning

    •The adapter shall be installed near the equipment and shall be easily accessible Approved Accessories •This radio meets the RF exposure guidelines when used with the Retevis accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations.
  • Page 13 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: ・Contact the seller where you buy.
  • Page 14 Shenzhen Retevis Technology Co.,Ltd. 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web:www.retevis.com E-mail:kam@retevis.com Facebook:facebook.com/retevis MADE IN CHINA...
  • Page 15 说明书要求 尺寸：120*160mm 印刷：黑白印刷 装订：胶黏订 纸张材质：双胶纸 本页无需印刷...
