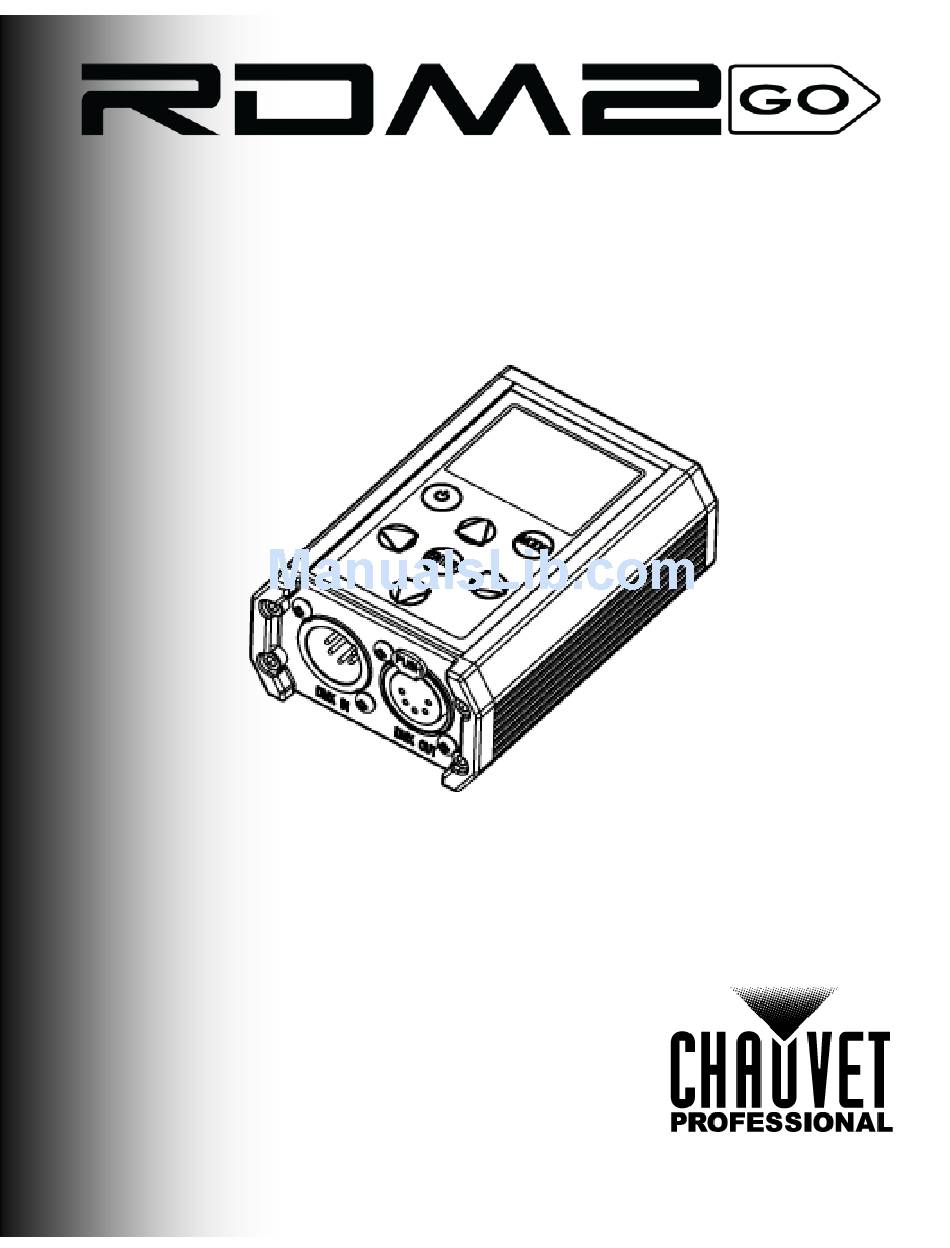

- Page 1 User Manual...
- Page 2 Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions..
-
Page 3: Table Of Contents
Send Options ..................................... 14 Receive DMX ................................15 View incoming DMX Values ............................... 15 Cable Test................................... 15 Using the Cable Tester ................................15 Power Options ................................15 Using the Power Options ................................15 Information .................................. 15 RDM2go User Manual Rev. 1... - Page 4 Table of Contents 5. Technical Information ..........................16 Product Maintenance ..............................16 6. Technical Specifications ......................... 17 Returns ..................................18 Contact Us ..............................19 -ii- RDM2go User Manual Rev. 1...
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Safety Notes
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs. -
Page 7: Introduction
The RDM2go also features a built in DMX cable integrity checker, and an easy to read OLED display. The RDM2go easily recharges via a standard micro USB jack and comes with a convenient carry pouch and connector convertors. -
Page 8: Overview
Introduction Overview Micro USB Input Power On Control Panel Top View DMX In Front View Bottom View DMX Out Cable Storage 5-to 3-pin Adaptor 3-to 5-pin Adaptor Carry Pouch RDM2go User Manual Rev. 1... -
Page 9: Dimensions
Introduction Dimensions 2.76 in 70 mm 3.93 in 1.53 in 100 mm 39 mm 6.46 in 164 mm 4.80 in 122 mm RDM2go User Manual Rev. 1... -
Page 10: Setup
Charge or discharge the battery to approximately 50% of capacity at least once every six months. · Charge or discharge the battery to approximately 50% of capacity before storage. · Store the battery at temperatures between 41 °F and 68 °F (5 °C and 20 °C). RDM2go User Manual Rev. 1... -
Page 11: Connection
Setup You can link the RDM2go to other DMX controlled products using a 5-pin DMX connection. If Connection using other DMX-compatible products with the RDM2go, you can control each individually with a single DMX controller. If you are not familiar with or need more information about DMX standards, Master/Slave connectivity, or the DMX cables needed to link this product to a DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com. -
Page 12: Operation
Press <ENTER> to select. In this case, if there is another programming level, you will see that first option, or you will see the selected value. · Press <MODE> repeatedly to exit to the previous level. RDM2go User Manual Rev. 1... -
Page 13: Menu Map
COOL WARM Determines the white balance when RGBTOW AMBE RGBTOW is active Dimmer works in linear mode DIM 1 DIMMER DIM 2 Dimmer works in non-linear mode, from fast to slow DIM 3 DIM 4 RDM2go User Manual Rev. 1... -
Page 14: Menu Map (Cont.)
End Of Set-up and edit the DMX sequence Sequence – Sequence – Delete Sequence No/Yes Deletes/reset the DMX sequence Store Scene Records current DMX values Scene 1–32 Load Scene Loads a previously recorded scene -10- RDM2go User Manual Rev. 1... -
Page 15: Menu Map (Cont.)
Product is powered off after 5 min of Options inactivity 10 Minute Product is powered off after 10 min of inactivity Cable Test Chart Bad Pin 2 Good Pin 1 Shorted to Pin 3 RDM2go User Manual Rev. 1 -11-... -
Page 16: Rdm
RDM compatible products. 1. Go to the RDM main level. 2. The RDM2go will scan for RDM compatible products, Discovering... will display on the screen. a. No Fixtures Found – No RDM compatible products were found. Be sure your connected products are RDM compatible check all connections and try again. -
Page 17: Dmx Values
6. Repeat steps 2 through 5 for the other white colors. 1. Go to Iumicode > SETTINGS > RESET. Reset to Factory 2. Select an option (YES/NO). Settings Details: The product will assume its default values as per the corresponding manual. RDM2go User Manual Rev. 1 -13-... -
Page 18: Send Dmx
8. Press <ENTER> 9. Repeat Steps 3 through 8 for additional channel adjustment. The RDM2go stores the last scene that was changed. To start with a clean scene, refer to Clear All Channels section to set all the DMX channels to 0. -
Page 19: Receive Dmx
Tester 3. Press <ENTER>. This Main Level selection sets the amount of time the RDM2go remains turned on after the last Power Options user input. This auto-off option can be set to 1 Minute, 5 Minute, 10 Minute, or Off. Choosing Off means the product will stay on until the battery is exhausted. -
Page 20: Technical Information
6. Wipe any dirt or grime to the outside edges of the lens surface. 7. Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. -16- RDM2go User Manual Rev. 1... -
Page 21: Technical Specifications
Power cord plug USB-A Male USB-A Male Thermal Max. External Temperature Cooling System 113 °F (45 °C) Convection I/O Connectors Connector Type 5-pin XLR Sockets Ordering Product Name Item Code UPC Number RDM2go 03081093 781462214418 RDM2go User Manual Rev. 1 -17-... -
Page 22: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number. DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label. -
Page 23: Contact Us
Voice: (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com EUROPE General Information - Chauvet Europe BVBA Technical Support Address: Stokstraat 18 Email: Eutech@chauvetlighting.eu 9770 Kruishoutem Belgium World Wide Web www.chauvetlighting.eu Voice: +32 9 388 93 97 General Information - Chauvet Europe Ltd.
