General
3.4

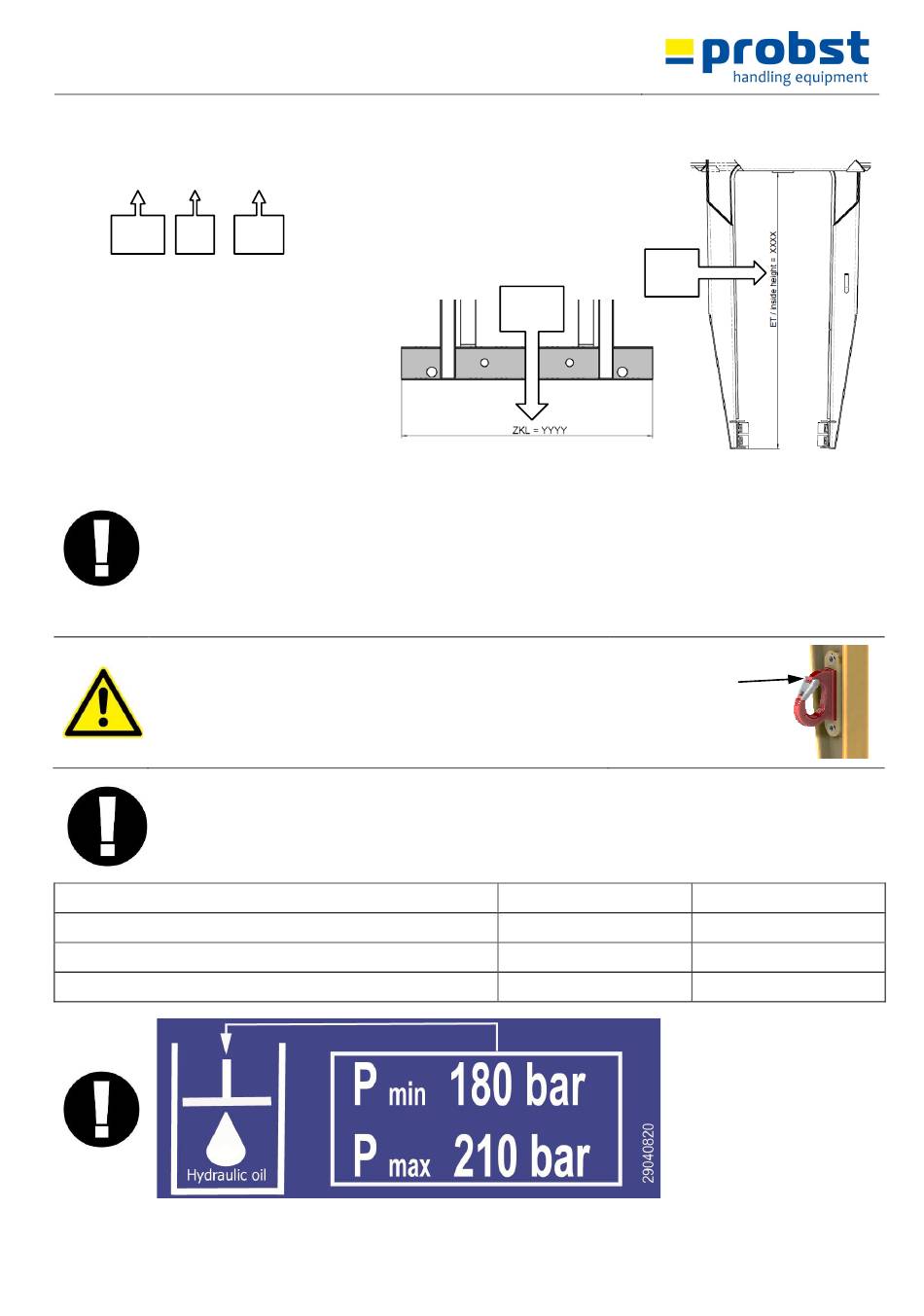

Explanation of the article number (see order)

5610 XXXX - YYYY
1 2
AKZ ET
1
Device type (short description)
2
Inside Height ET (mm)
3
Gripper Base Length ZKL (mm)
* The load capacity depends on:
•
Surface condition of the material to be gripped
•
Size of the individual stones
•
parcel size
•
Type of packaging
The load capacities do not apply to stacks of low, unbundled stones, e.g. paving stones!
When hanging loads on the optional hanging eyes, the load
capacity (WLL) of 750 kg per hanging eye must not be exceeded!
When using all 4 hanging eyes, the maximum allowable working
load limit (WLL) of the unit (AKZ) must be noted!
Otherwise, there is a risk of damage of the hanging eyes and a
danger of falling of the lifted load. DANGER TO LIFE!
To ensure a perfect and safe operating state of the device the following setting values have to be
observed:
Setting value
Output of truck loading crane [l/min]
Operating pressure of truck loading crane [bar]
Back pressure [bar]
56101230-1000
3
ZKL
3
ZKL
optimal / minimum
25 optimal
180 minimum
0 optimal
13 / 24
2
ET
Suspension
hooks for
ropes or belts
maximum
75
210
5
