Pulsar AWO610 Quick Start Manual

General purpose metal enclosures, with DIN rails
CODE:
NAME:
Can be used for mounting transformers or power supply units:
Empty
mounting plate

Intended use:

Due to its design, the AWO610 enclosure can be used as an integrating part of installation systems, such
as: CCTV, KD, SSWiN, etc. The enclosure is to be used for mounting (depending on configuration):
system KD controller and additional modules or other devices adjusted for mounting on a TH35
·
(35mm) DIN rail
transformer, series: TRP, TRZ, TOR
·
enclosed power supply units, series: PS, PSB
·

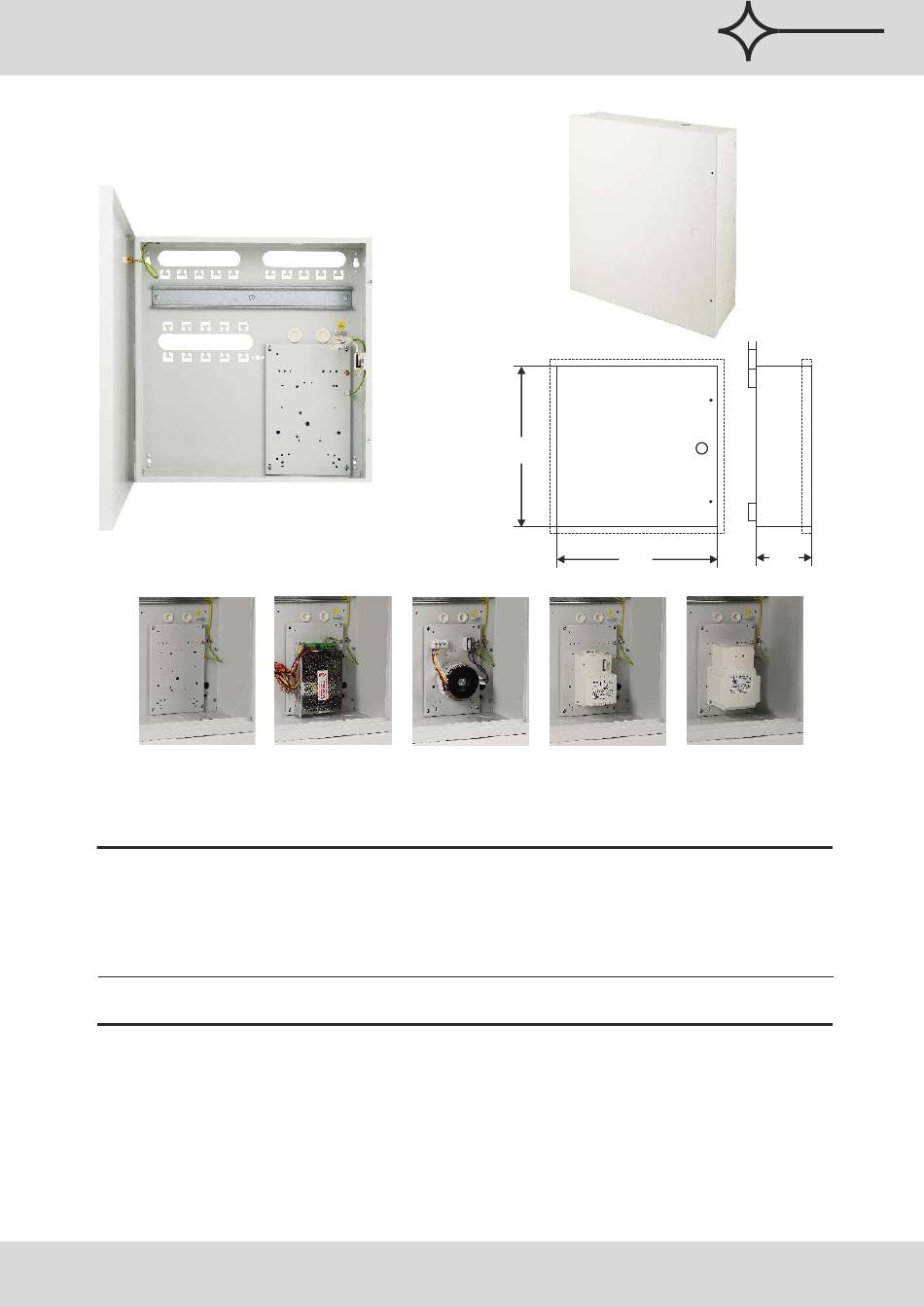

Product description:

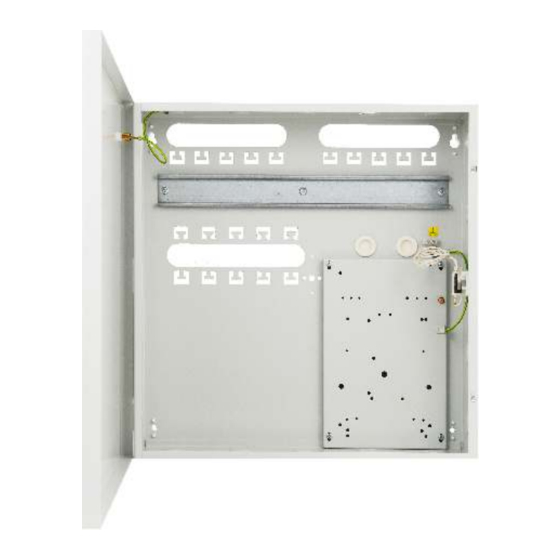

The enclosure includes a 315mm-long Din rail mounted to the bottom.
It is equipped with a mounting plate, which is to mount transformers or power supply units.
The enclosure accommodates a 17Ah/12V battery. Anti-tampering system indicates an unauthorized
opening of the enclosure. There is also a possibility to mount an additional anti-tampering system, which
would prevent the device from being ripped off the wall (PKAZ005). In a basic version, the enclosure is
bolted in the faceplate with 2 screws. The faceplate is embossed so that a lock assembly can be fitted. The
lock can have the same code: MR027, or a different one: Mr008.There is an 8mm space between the
enclosure and the wall for the cables of the device accommodated by the enclosure.
Tel. 0048-(0)-14-610-19-40, fax: 0048-(0)-14- 610-19-50, www.pulsar.pl, e-mail: sales@pulsar.pl
AWO610
v.1.0
Enclosure DIN1
Enclosed PSU
Transformers
series: PS..., PSB...
series: TOR...
355
345
Transformers
series: TRP...
Pulsar
8
80
Transformers
series: TRZ...
®
