1. Application:
Due to its construction, the AWO624 enclosure can be used as an element integrating electrical systems, automation
systems, CCTV, Access Control Systems, IDS, etc. It is dedicated to equipment mounted on a DIN rail (TH35mm). The
devices that can be mounted in the enclosure (depending on the configuration) are listed below:
1. Electric fuses of the „S" type
2. Transformers of the following series: TRP, TRZ, TOR
3. Power supplies of the following series:
PS-15xxxx, PS-40xxxx, PS-60xxxx, PS-100xxxx, PS-150xxxx, PS-200xxxx
DINxxxx
4. Built-in buffer power supplies of the following series:
PSB-25xxxx, PSB-35xxxx, PSB-50xxxx, PSB-75xxxx, PSB-100xxxx, PSB-155xxxx
PSBOC25xxxx, PSBOC35xxxx, PSBOC50xxxx, PSBOC75xxxx, PSBOC100xxxx, PSBOC155xxxx
ADOC55xxxx, ADOC155xxx
5. Buffer power supply modules of the following series:
MSRDxxxx
2. Product description

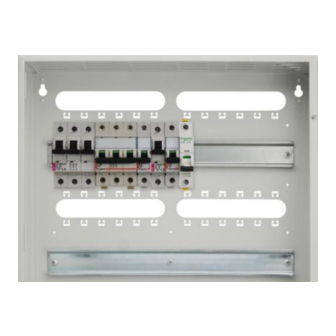

The enclosure is fitted with 4 DIN rails with a length of 330mm, which corresponds to 18 fields of the "S" fuse.
Battery space for two 17Ah / 12V batteries.
Tamper protection (opening of the housing) included. In the standard version, the housing is screwed with 2 screws from
the front. The front of the housing is fitted with an opening for the lock which allows installation of a lock with the same
code MR027 or with a different code MR008. The 8mm distance from the wall at the bottom makes the wires easier to
connect to the devices mounted in the enclosure.
3. Mounting:
The enclosure is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and
required for a given country) for 230V/AC in and low-voltage installations.
The enclosure should be mounted in confined spaces with normal relative humidity (RH=90% maximum, no
4. Technical parameters
TECHNICAL PARAMETERS
TAMPER output load- max
Operation temperature
Relative humidity RH – max.
Internal dimensions
Possibility to mount
additional equipment
condensation) and temperature range from -10°C up to +40°C.
Battery space
Tamper protection
Enclosure: IP
(W x H x D)
INSTALLATION MANUAL
ENGLISH
Code: AWO 624
Name: DIN 4/90 enclosure 370x640x90mm
Metal enclosure for: Access Control Systems, IDS....
Edition: 2 from 31.08.2015
Supercedes edition: 1 from 10.09.2014
2 x 17Ah/12V
1x – enclosure opening
500mA@50Vdc
IP 20
-10ºC÷40ºC
90 [%]
370 x 640 x 90
[-/+2] [mm]
Lock with the same code MR027
Lock with a different code MR008
IM624
