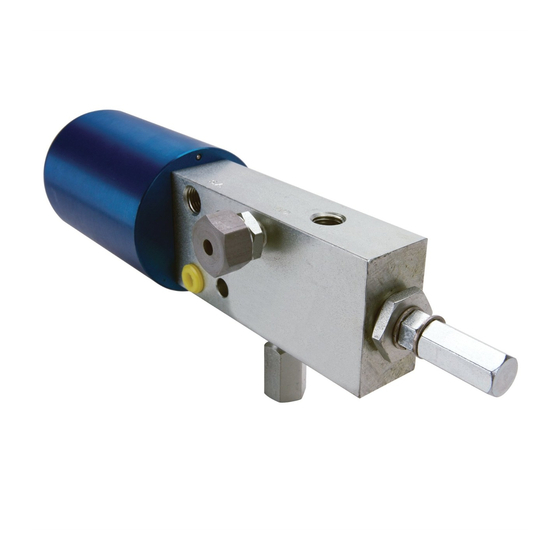

Graco MSA-10 Installation And Parts

Air operated pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

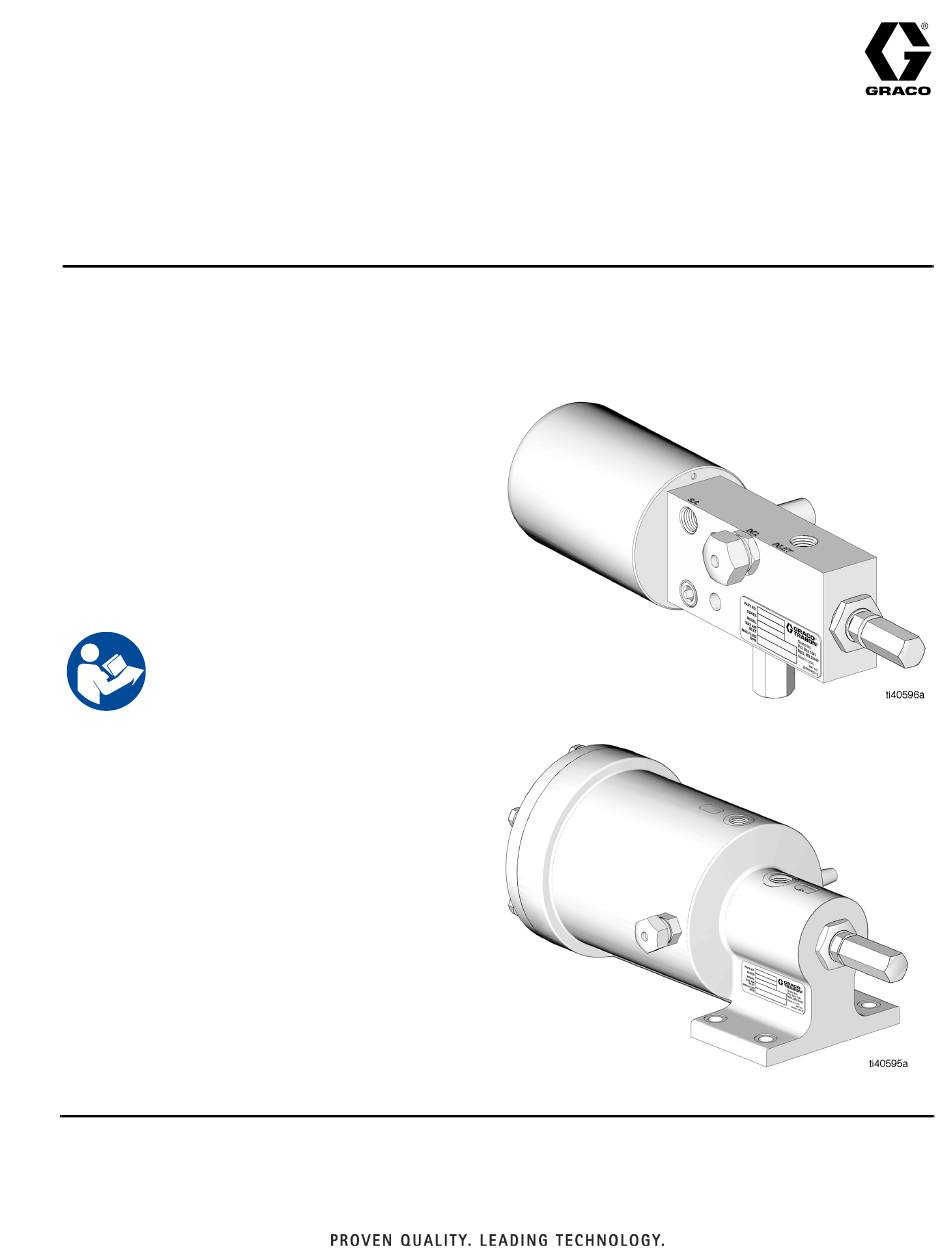

Instruction - Installation and Parts
MSA-10 and MSA-100
Air Operated Pump
For dispensing oil or grease up to NLGI#2 in series progressive lubrication systems. For
professional use only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Models:
MSA-10 (562854)
MSA-10: 1450 psi (9.997 MPa, 99.97 bar) Maximum
Working Pressure
MSA-100 (562855)
MSA-100: 3000 psi (20.68 MPa, 206.8 bar) Maximum
Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment.
Save these instructions.
MSA-10
MSA-100
332023A
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSA-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco MSA-10

Summary of Contents for Graco MSA-10

  • Page 1 For dispensing oil or grease up to NLGI#2 in series progressive lubrication systems. For professional use only. Not approved for use in explosive atmospheres or hazardous (classified) locations. Models: MSA-10 (562854) MSA-10: 1450 psi (9.997 MPa, 99.97 bar) Maximum Working Pressure MSA-100 (562855) MSA-100: 3000 psi (20.68 MPa, 206.8 bar) Maximum Working Pressure...

  • Page 2: Fire And Explosion Hazard

    Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.

  • Page 3: Personal Protective Equipment

    Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.

  • Page 4: Component Identification

    Component Identification Component Identification MSA-10 Air Operated Pump . 1: Component Identification Key: Air piston Pump piston Chamber Outlet hole Undercut Piston return spring Single-acting port Double-acting port Mounting holes Lube inlet Lube outlet External check valve Adjustment screw Adjustment screw cap...
  • Page 5 Component Identification MSA-100 Air Operated Pump . 2: Component Identification Key: Air piston Pump piston Chamber Outlet hole Undercut Rupture to atmosphere indicator Piston return spring Single-acting port Double-acting port Adjustment cap Adjustment screw Lube outlet Lube inlet Mounting holes Air muffler 332023A...

  • Page 6: Installation

    5. Adjust the pump output: Both the MSA-10 and the MSA-100 are supplied as a a. Remove the adjustment screw cap (P). single acting pump and can be field-converted to a double-acting pump.
  • Page 7 Installation MSA-100 Air Operated Pump See F . 2 for reference letters used in this section. 1. Mount the pump to a flat, sturdy surface using four (4) 3/8 in. screws through the mounting holes (P). 2. Connect the lubrication inlet and outlet lines to the pump inlet (N) and outlet (M).

  • Page 8: Recycling And Disposal

    Recycling and Disposal Recycling and Disposal End of Product Life At the end of the product’s useful life, dismantle and recycle it in a responsible manner. • Perform the Pressure Relief Procedure. • Drain and dispose of fluids according to applicable regulations.
  • Page 9 Parts Parts MSA-10 Air Operated Pump Part Number/Description Ref. Part Description Qty. 555648 O-ring 555651 O-ring 555715 O-ring 555716 O-ring 556545 O-ring 556597 O-ring 563207 VALVE, check, 1/4 npt, 5000 557571 SPRING, piston, AL-50 pump 555364 BALL, 440 SST, .125 grade 100...
  • Page 10 Parts MSA-100 Air Operated Pump 2, 9, 10 Part Number/Description Ref. Part Description Qty. 101947 BALL, bearing 131495 FITTING, keeper, 1/4 NPSF 556503 RETAINER, spring 555688 O-ring, -115 Viton-A 75 DURO 555689 O-ring, -118 Viton-A 75 DURO 556566 O-ring, -345 Viton-A 75 DURO 556591 RING, backup -048 PTFE 556708 SEAL, washer, 1/2 stat-o-seal SPRING, compression, check...
  • Page 11 Dimensions Dimensions MSA-10 Air Operated Pump Shown in inches (mm) 332023A...
  • Page 12 Dimensions MSA-100 Air Operated Pump Shown in inches (mm) 332023A...

  • Page 13: Technical Specifications

    Technical Specifications Technical Specifications MSA-10 Air Operated Pump Metric Output per Stroke 0.040-0.120 cu.in 0.66-1.97 cm³ Max Pump Stroke Per Min Single-Acting Double-Acting Operating Pressure Air inlet 40-150 psi 0.28-1.03 MPa, 2.76 - 10.4 bar Max Lube Inlet* 500 psi 3.45 MPa, 34.5 bar...

  • Page 14: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
