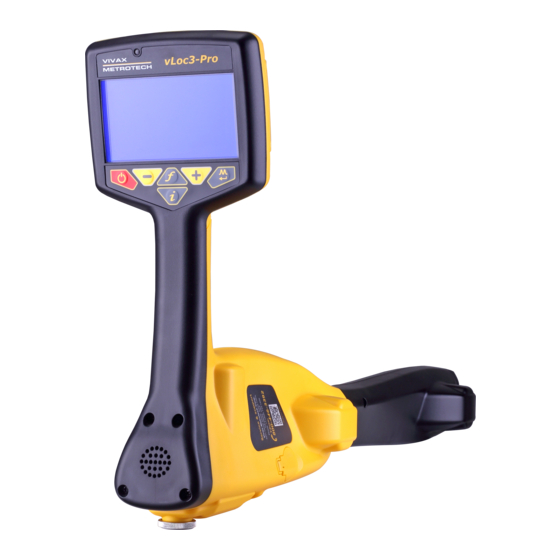

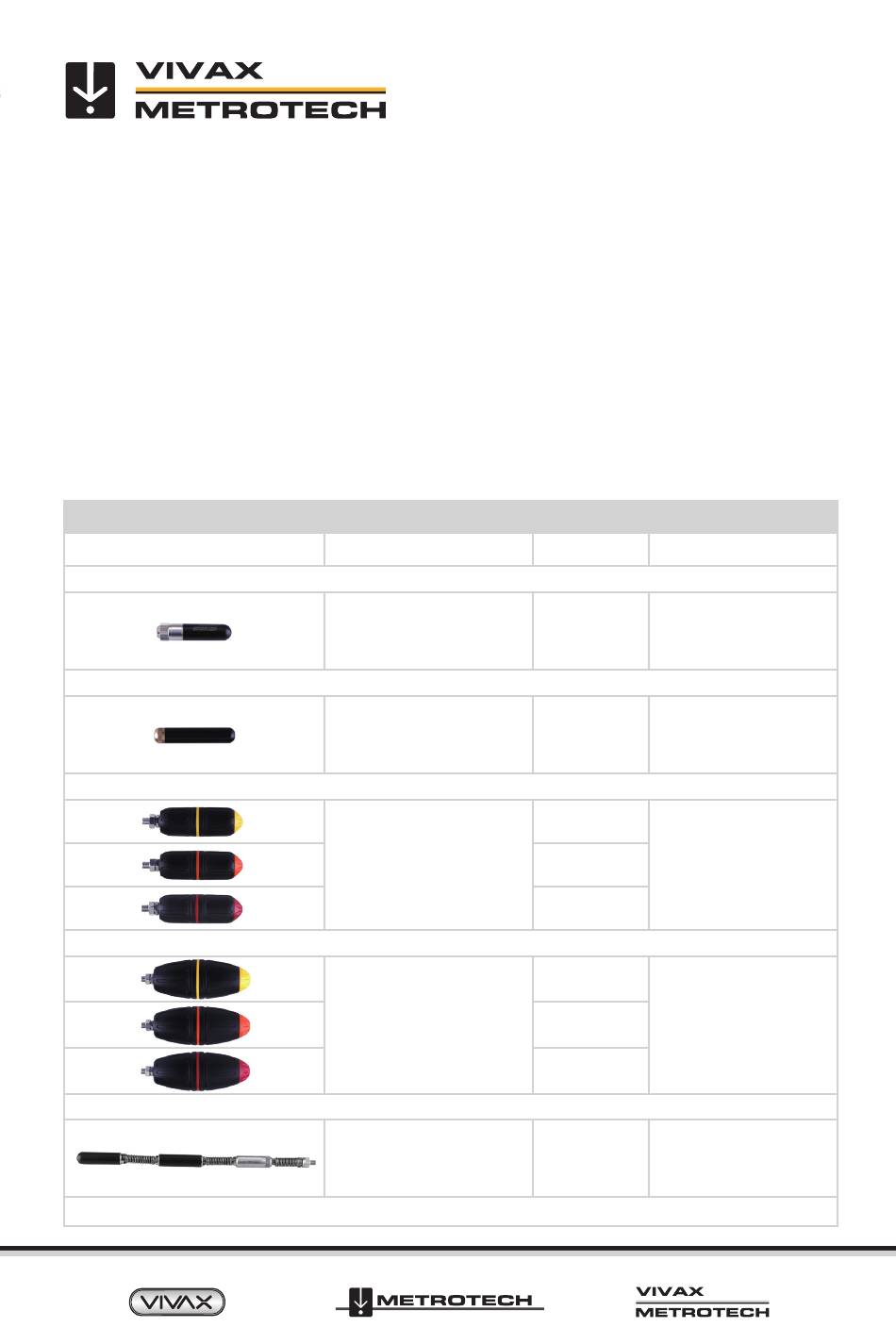

vLoc3 Series Sonde Locating Quick Guide V1.4
Sondes
Sondes are small self-contained battery powered transmitters that are propelled through pipes
and ducts and can be located on the surface by a sonde locator or buried utility locator with a
sonde mode. Sondes are also built into other products such as a sewer camera, robotic crawler
camera, or attached to a jetter hose. Low-frequency versions (512Hz/640Hz) can transmit
through some metallic pipes such as cast iron which is why they are frequently used with sewer
inspection cameras.
Sondes are available in a variety of sizes and depth ranges. Different frequencies are available to
suit different locator models.
Model
D18 Sonde
D22 Sonde
D38 Sonde
D64 Sonde
D23 Sonde
Please visit our website for full specifications on our sonde range.
P/N:4.04.000125
Sonde Range
Depth and Dimensions
Depth: 15ft / 4.5m
0.72" x 3.2"
18.5 x 79mm
Depth: 8ft / 2.4m
0.87" x 4.5"
22 x 114mm
Depth: 16ft / 5m
1.4" x 5.2"
38 x 132mm
Depth: 26ft / 8m
2.5" x 7.1"
64 x 179mm
Depth: 22ft / 7m
0.90" x 17.3"
23 x 440mm
Frequency
Battery Type
33kHz
2 x SR44 Button cells
9.8kHz
4 x LR43 Button cells
83kHz
33kHz
9.8kHz
1 x AA Alkaline
83kHz
33kHz
9.8kHz
1 x 9 Volt Alkaline
83kHz
512Hz
1 x AA Alkaline
640Hz
™
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivax Metrotech vLoc3 Series
Summary of Contents for Vivax Metrotech vLoc3 Series
- Page 1 Series Sonde Locating Quick Guide V1.4 Sondes Sondes are small self-contained battery powered transmitters that are propelled through pipes and ducts and can be located on the surface by a sonde locator or buried utility locator with a sonde mode. Sondes are also built into other products such as a sewer camera, robotic crawler camera, or attached to a jetter hose.
- Page 2 Locating sondes with a vLoc3 series receiver The vLoc3-Cam Display Peak signal detector Signal strength bar graph Sonde icon 67.2 3’9’’ 25dB 8kHz Null point Direction to sonde Frequency selection Numeric signal level (mirrors the bar graph) Depth Reading Gain setting...
- Page 3 The vLoc3 series receivers detect the presence of the two null signals and the main peak position. It uses this information to provide a reliable and efficient method of sonde location.
- Page 4 Keeping the null indicator on the vertical line, walk toward the arrow. A Sonde icon will soon appear replacing the arrow. Keeping the locator vertical, carry on walking toward the sonde until it is positioned on the crosshairs. The locator is now directly over the sonde.
