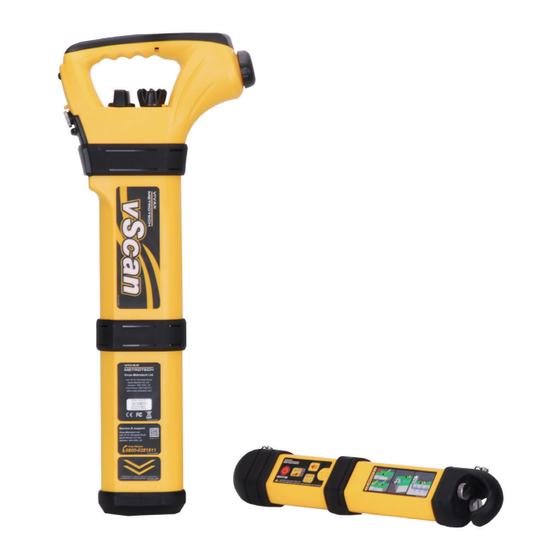

Vivax Metrotech vScan User Handbook Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

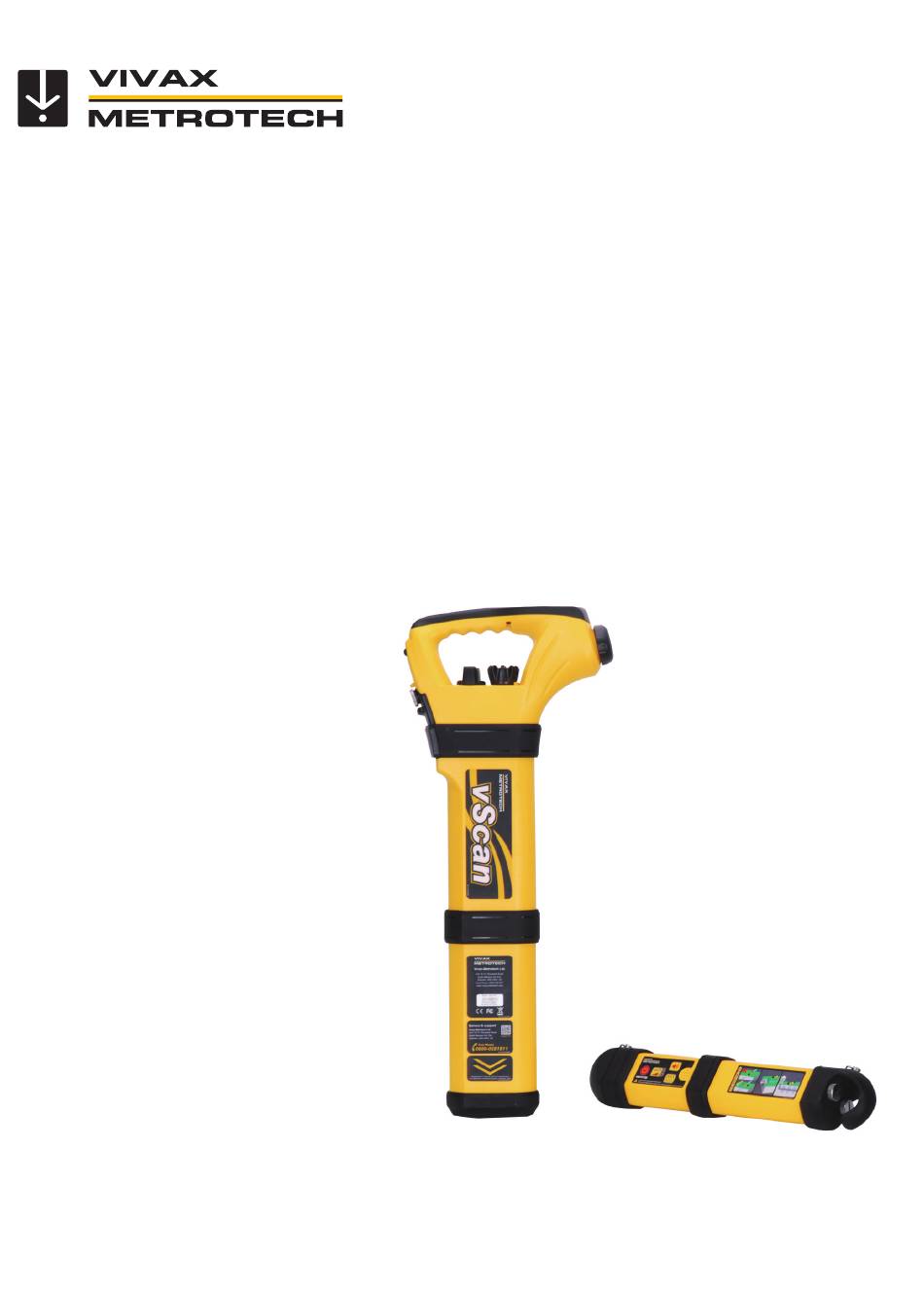

vScan User Handbook
(English Edition)
Version 1.5
P/N: 4.04.000051

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the vScan and is the answer not in the manual?

Questions and answers

Related Manuals for Vivax Metrotech vScan

Summary of Contents for Vivax Metrotech vScan

  • Page 1 User Handbook (English Edition) Version 1.5 P/N: 4.04.000051...
  • Page 3 “intrinsically safe” approvals. • Vivax-Metrotech vScan products using Lithium-ion batteries are classified as "not • The equipment should not come in contact with corrosive or hazardous chemicals, restricted", they can be shipped normally by road/rail/sea & air (passenger & freight gases or dust.

  • Page 5: Table Of Contents

    3.1.3.3 Signal Overload Alert.......................... 6 3.1.3.4 Overhead Signal Alert ........................6 Transmitter ................................... 8 4. Locating ....................................9 Switching the vScan Locator On and Off ........................9 Passive Locating ................................9 4.2.1 Detecting Radio Signals ..........................10 4.2.2 Detecting Power Signals ..........................11 Active Locating ................................
  • Page 6 4.12 Creating “Points of Interest” (POI) ..........................26 4.13 Bluetooth .................................. 26 4.14 MyvScan................................... 28 4.14.1 Using MyvScan ............................28 4.14.2 Navigating around MyvScan ........................29 5. Glossary ....................................31 ™...

  • Page 7: Service & Support

    Service & Support 1. Service & Support Serial Number and Software Revision Number Always quote your receiver and transmitter model number, serial number and software revision number when requesting product support. They can be found as follows: (for reference only) Model &...

  • Page 8: Distributors And Service Centers Closest To You

    Service & Support Distributors and Service Centers Closest to You: Worldwide Sales Offices and Service Centers World Headquarters, United States of America Central/South America and the Caribbean Vivax-Metrotech Corporation Ventas para América Latina 3251 Olcott Street, Santa Clara, CA 95054, USA 3251 Olcott Street, Santa Clara, CA 95054, USA T/Free : 1-800-446-3392...

  • Page 9: Power Supplies

    2.1.1 Alkaline Batteries The vScan requires six AA type alkaline batteries. To replace the batteries, unscrew the ¼ turn fastener of the battery compartment and open the internal battery door. Remove the battery holder and replace all the batteries. Mixing good and discharged batteries may result in excessive heat or even fire.

  • Page 10: Vscan Transmitter Batteries

    The active LED pulses in the same way as sounder. • Transmitted signal has slow pulse, in the same way as the sounder. (This informs the vScan receiver operator that the transmitter batteries have a low charge.) 2.2.1 Alkaline Batteries The vScan transmitter requires four D type alkaline batteries.

  • Page 11: User Controls/Connections

    User Controls/Connections 3. User Controls/Connections Receiver 3.1.1 Display The display has a dot matrix format. The contents of the screen are dependent on the function being performed. Details of these screens are revealed further in the user handbook. Bluetooth icon Peak level indicator Compass (line direction indicator) Battery level indicator (also alert indicator)

  • Page 12: Warnings/Alerts

    The signal overload alert will trigger if the input signal exceeds the allowable limits. This situation is very unusual and will only occur in extreme situations. 3.1.3.4 Overhead Signal Alert The overhead signal alert is triggered if vScan detects a significant signal radiating from above, for instance an overhead cable. ™...
  • Page 13 User Controls/Connections Warnings If configured in MyvScan, the startup screen will indicate the number of days to next service, such as: OVERDUE 10 DAYS Other warnings will be displayed during start up if configured in MyvScan. These warning icons will continue to be displayed until the relevant action is taken. If desired, the MyvScan desktop application can be used to configure these warnings so that if no action is taken the unit will shut down.

  • Page 14: Transmitter

    User Controls/Connections Transmitter Automatically selects direct connection or signal clamp, when connected. Always Direct connection socket ensure weather proof bung is replaced when not in use. If the connection socket is not being used, induction mode is selected automatically. On/Off pushbutton Long press to switch on.

  • Page 15: Locating

    Locating 4. Locating Switching the vScan Locator On and Off To switch on, momentarily press the On/Off button. Allow a short period for the startup screen to show similar to the one below. 10 DAYS To switch off, press the On/Off button until the screen shows “Standby”.

  • Page 16: Detecting Radio Signals

    4.2.1 Detecting Radio Signals Switch on the vScan receiver and select Radio mode using the mode paddle. Hold the vScan vertically and away from likely positions of cables or pipes. Adjust the sensitivity control so that the bar graph reading is just starting to show some movement. The sensitivity control should be at or close to maximum sensitivity.

  • Page 17: Detecting Power Signals

    If at any time, the meter reading starts to increase, carefully move the locator forward and back to detect the maximum signal. Use the peak level indicator to help confirm the correct position. Rotate the vScan on its axis to obtain the maximum signal. The vScan is now directly over the line and with the blade across the line.

  • Page 18: Active Locating

    To inject a signal requires the use of the vScan transmitter. The signal can be injected, or applied, to the target line in a variety of ways.

  • Page 19: Signal Clamp

    Locating When connecting to a ferrous material, it is sometimes not possible to find a suitable projection to apply the connection clip. If this is the case, use the magnet supplied to make contact to the line and then clip the red clip to the magnet. A good example of this is to make a connection to a street lighting circuit.

  • Page 20: Induction (33 Khz)

    With no direct connection lead or signal clamp connected, the transmitter will automatically start to radiate a signal around the transmitter. These signals will penetrate the ground and couple onto buried lines. The signal will then travel along the line which can be detected with the vScan locator. Applying an induction signal to a line.

  • Page 21: Detecting Active Signals

    Move the locator backward and forward to ensure a maximum signal is detected. Use the peak level indicator to assist. With the maximum signal found and the compass running across the bar graph, the vScan is now directly over the line and exactly across it.

  • Page 22: Taking Depth And Current Measurements

    If the depth measurement feature is activated, it is possible to take depth measurement estimations. To take a depth measurement, first pinpoint the position of the line as above. Place the tip of the vScan on the ground making sure it is vertical and across the line.

  • Page 23: Metal Locate Mode (Vscanm Cover Detector)

    Locating Metal Locate Mode (vScanM Cover Detector) The metal locate mode is used to detect buried manhole covers. For this feature, be sure to order vScanM. The cover locator has been designed to respond to most metal covers. 4.6.1 Locating a Buried Cover Before locating a buried cover it is necessary to perform a simple set up procedure.

  • Page 24: Locating Non-Metallic Pipes Or Ducts

    Switch on the Sonde by connecting the battery. Connect it to the pushrod and place it in the start of the pipe run. Switch on the vScan and select Sonde mode using the mode paddle. The Sonde icon will now be visible on the screen.
  • Page 25 Now sweep left and right over the Sonde to obtain a second peak. Note that there are no ghost signals when sweeping left to right over the Sonde. Finally check that the vScan is in line with the Sonde by rotating it on its axis to obtain a peak signal. The vScan is now over the Sonde and in line with it.

  • Page 26: Advanced Locating Techniques

    This is an induction method technique and is used to quickly check an area for any metallic services. Method: Select the area to be checked. One person holds the transmitter and the other holds the vScan receiver. Attach the carry strap to the transmitter. This is important as it makes carrying the transmitter more comfortable and allows the transmitter to be held close to the ground ensuring maximum coupling to the services below.

  • Page 27: Nulling Out A Signal (Induction Mode)

    Locating Position the vScan receiver approximately 10m from the transmitter and with the flat of the blade pointing directly at the transmitter. Switch it on and adjust the sensitivity so that approximately 20% reading is observed. Walk slowly around the transmitter watching for an increase in signal level. At an increase, pinpoint the source of the signal and mark the ground at the maximum point.

  • Page 28: Capacitive Coupling

    Locating Now position the vScan receiver exactly over the unwanted signal. The person at the transmitter end can now hold the transmitter vertically over the position of the unwanted signal. Move the transmitter side to side across the line of the unwanted service whilst asking the person at the receiver end to indicate when the signal is “nulled out”.

  • Page 29: Self-Test/Calibration Check

    4.9.1 The vScan Receiver The vScan has been designed to be a robust and stable avoidance tool. However, as with all safety equipment it is advisable to check the functionality of the equipment. As the receiver is the signal processing part of the kit, Vivax-Metrotech has designed into the equipment a calibration and functionality check.

  • Page 30: Vscan Transmitter Check

    Note that this test does not test the metal cover detector of the vScanM. To check this, simply check that the unit detects a 6” (150mm) metal cover at a range exceeding 6” (150mm). 4.9.2 vScan Transmitter Check As the transmitter is not a measuring device, it is not necessary to perform calibration checks on the equipment. However, it is advisable to perform this quick and easy functionality check.

  • Page 31: Using An External Gps

    Note that there will be no satellite access within buildings. The vScan has quick start up circuitry for the GPS. It works by holding power to the GPS circuitry for a period of 30 minutes (or as set by MyvScan) after switch off. The circuitry is activated when the unit is put into the “Standby” mode. If the unit is switched back on, from the “Standby”...

  • Page 32: Creating "Points Of Interest" (Poi)

    The Bluetooth feature enables the vScan to communicate with external devices, such as high accuracy GPS and data logging devices, via a radio link. Before data can be exchanged with the external device, the two units need to be electronically paired. The vScan screen shows the status of the Bluetooth via the Bluetooth icon: •...
  • Page 33 On/Off button to exit the menu) Unless changed in the menu, the vScan will automatically pair with the external device at subsequent start-ups. When the Bluetooth icon is flashing, the Bluetooth module is emitting strong radio signals that will interfere with the Radio mode.

  • Page 34: Myvscan

    For more details on the vScan data stream visit www.vivax-metrotech.com. 4.14 MyvScan MyvScan is a powerful software package which supports features available in the vScan receiver product range including vScan and vScanM. MyvScan can be downloaded from the website: www.vivax-metrotech.com MyvScan enables the user to: •...

  • Page 35: Navigating Around Myvscan

    Switch on the locator and the text will turn green and display “Connected” as below. Note that the software revision of MyvScan (not to be confused with the locator software) will also be displayed together with the vScan lock status. To unlock or lock the vScan requires the use of the lockout dongle.
  • Page 36 Locating • To the right is a first time use page that helps describe the features available. Checking the “Do not show this again” box will prevent it from displaying on future when switched on. Clicking one of these will also reveal a sub menu relating to these topics. To the right the black area is your work area relating to the selection you have made on the left.The right hand side also has some navigation aids: The arrows to the left and right allow you to navigate to the next or previous screen.

  • Page 37: Glossary

    Glossary 5. Glossary Active Locate A locate where a transmitter is used to apply a signal to a buried pipe or cable, the position of which is then located by a receiver tuned to the same frequency. Active Signal A signal applied by the locator transmitter to a buried line. Typically this is a very precise frequency. Attenuation The reduction of an electromagnetic signal from a pipe or cable.
  • Page 38 Notes: Vivax-Metrotech Corporation 3251 Olcott Street, Santa Clara, CA 95054, USA Toll Free: 1-800-446-3392 Phone: +1 (408) 734-1400 Website: www.vivax-metrotech.com ™...
