Required Equipment and Software

To configure your SGX 5150 and test its operation you need:
1. SGX 5150 Serial Device Server (normally installed in the data logger enclosure)
2. A USB to Serial Adapter, Lantronix Serial Port adapter cable
3. Computer with a Wi-Fi network adapter (most laptops have built in Wi-Fi and USB Wi-Fi adapters are
readily available to add Wi-Fi capability to a desktop)
4. Data logger (normally installed in the data logger enclosure)
−
Note The data logger system should have the serial cable which connects the SGX 5150 serial port to the data
logger serial port already installed.
SGX 5150 Connections
Note - Serial 1 and Serial 2 are sometimes referred to as "Line 1" and "Line 2" by Lantronix.
Using the Lantronix SGX 5150 Serial Device Server

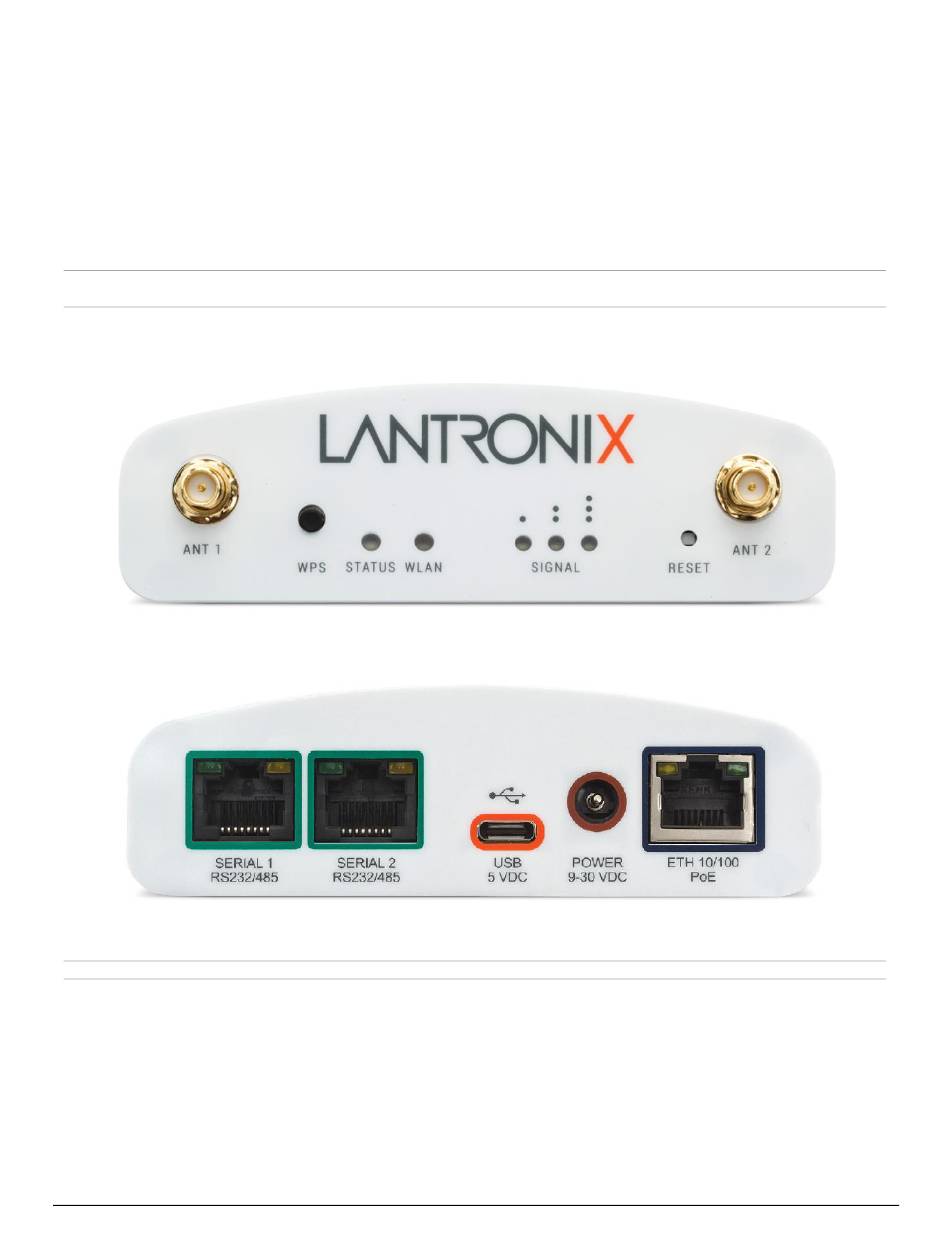

(Figure 1 - Front view of the Lantronix SGX 5150)
(Figure 2 - Rear view of the Lantronix SGX 5150)
