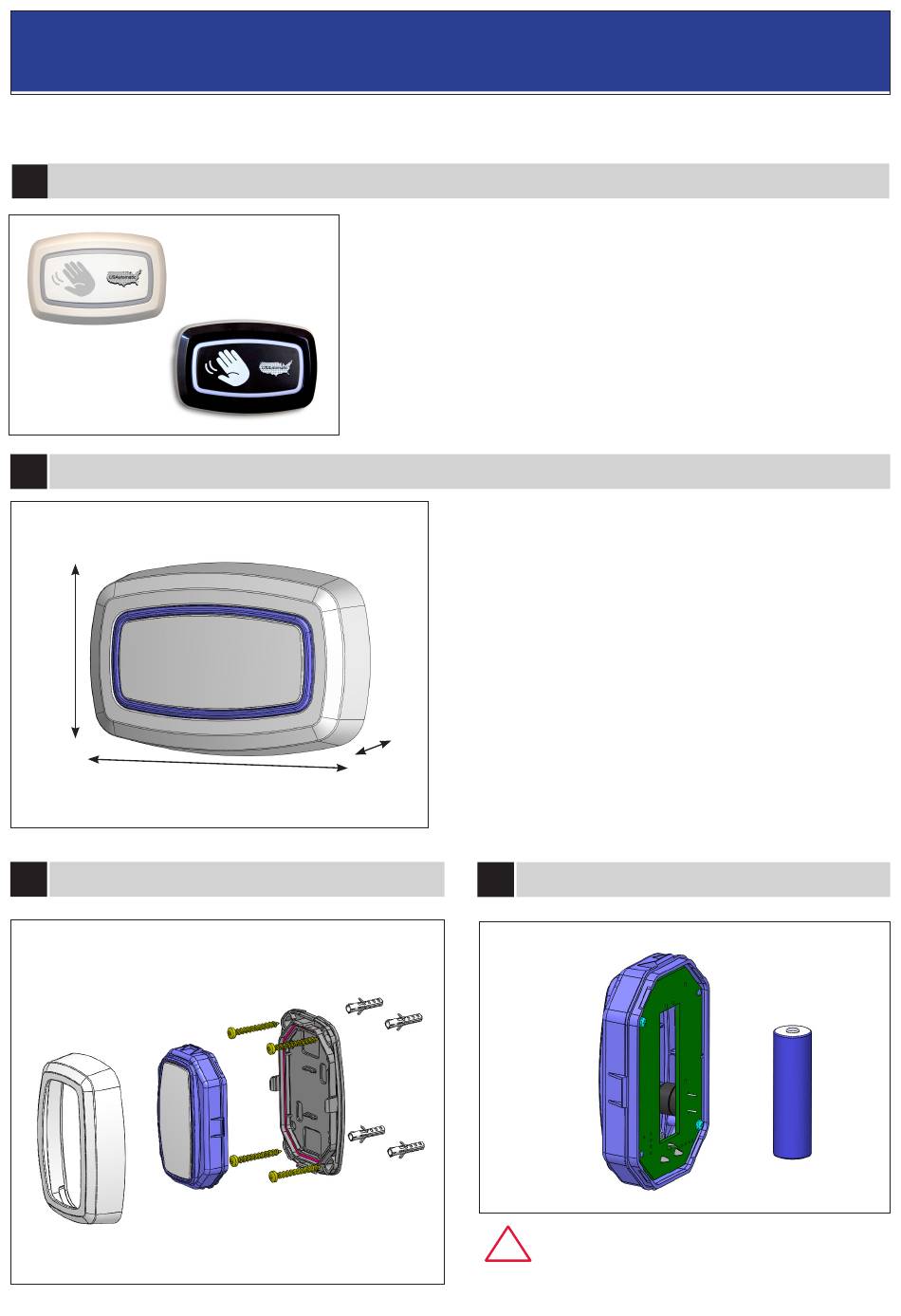

USAutomatic PN-030215 B Use And Installation Manual

1

Introduction

2

Technical Specifications

70mm
2.76 in
105mm
4.134 in
Fig. 2
3

Mounting

PUSH TO OPERATE WIRELESS BUTTON
PN-030215 B (B for black housing)
PN-030215 W (W for White housing)
Use and Installation manual
The push-to-operate wireless button operates at 433.92 MHz in AM/ASK
modulation.
It's mainly composed by a capacitive touch sensitive circuit and by a radio
trans-mitter. It can be used to operate gates, doors or garage doors or any
device with the corresponding compatible 433 MHz receiver.
The security protocol is fixed with 19683 code combinations .
A special sensor lights the led frame when the hand approaches the device
at about 10 cm and triggers the radio transmission when it touches the front
surface. The enclosure allows outdoor installations ( IP55).
Each product is already factory programmed with a different security code.
The transmitter is supplied with a ER14505 lithium battery for ~2 years of life.
23.5mm
.93 in
Fig. 3
Carrier frequency ..............................433.92 MHz
Modulation ........................................AM/ASK
N° channels ......................................1
E.r.p. .................................................300 uW
Battery type ......................................ER14505 Lithium
Operating voltage .............................3.6 Vdc
Current consumption ........................2 µA : stand-by
..........................................................60 mA : transmission
Battery life:........................................ ~2 years
Security protocol ...............................fixed code
Code combinations ...........................3exp9
Typical range in open space.............~200m / ~656 feet
Operating temperature .....................-20°/+80°C
Enclosure IP grade ...........................IP55
Dimensions (mm) .............................105 x 70 x 23.5
Dimensions (in) .............................4.134 x 2.76 x .935
Weight ( gr. / oz) .....................................100 / 3.53
4

Battery replacement

Replace the battery with ER14505 or equivalent
!
respecting the polarity as shown above
NOTE: Please dispose of the batteries correctly, they are
hazardous waste.
+
_
ER14505
Fig. 4
3.6 V
