- Page 1 Quick Start Guide TSL2540 EVM TSL2540 ALS, Light-to-Digital Sensor Evaluation Kit Version 1.0...
- Page 2 TSL2540 EVM Getting Started Guide Contents Out of the Box ........................3 Software Installation ......................3 Connect Hardware ....................... 5 Start the Application ......................5 Uninstall Application ......................6 Contact and Support ......................6 Page 2...

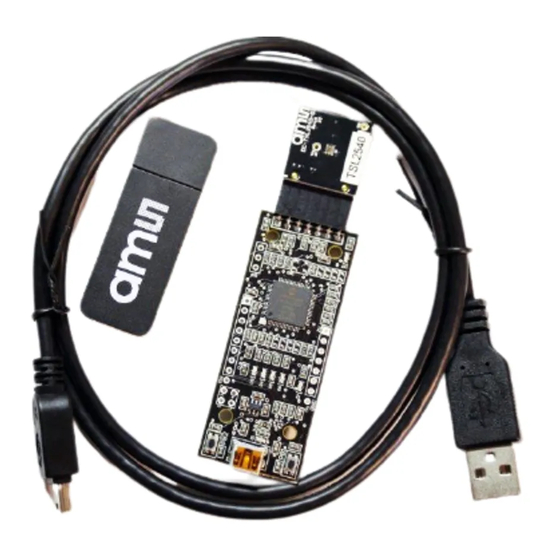

- Page 3 Figure 1. Evaluation Kit Contents Software Installation 1. Plug in the ams flash drive into an unused USB port. 2. Double-click the Setup.exe file on the flash drive, or click Start > Run and type E:setup.exe and press Enter. IMPORTANT: Use the appropriate drive letter in the above command to install the software.
- Page 4 TSL2540 EVM Getting Started Guide Figure 2. Welcome Screen Figure 3. Liability Disclaimer Figure 4. Select Installation Folder Figure 5. Select Start Menu Folder Figure 6. Installation in Progress Figure 7. Information Screen Page 4...
- Page 5 LED still does not flash, check the PC for USB error messages. Start the Application To start the application select ams > TSL2540 EVM > TSL2540 EVM on the All Programs menu. The default installation directory depending on the device and the operating system you are using...
- Page 6 TSL2540 EVM or use the Windows Control Panel. Figure 9. Remove Installation Contact and Support For detail in using the TSL2540 EVM please refer to the User’s Guide included in the documents. If any technical difficulties are encountered, use the Tech Support page at www.ams.com/Support...
