AMS T 2672 Series Quick Start Manual

Txx2672 EVM
Quick Start Guide

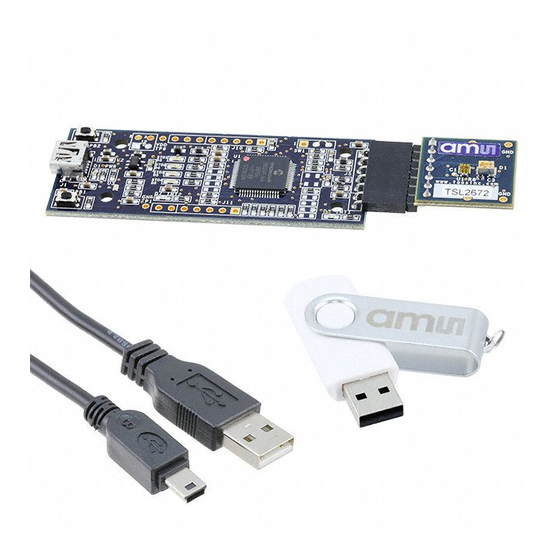

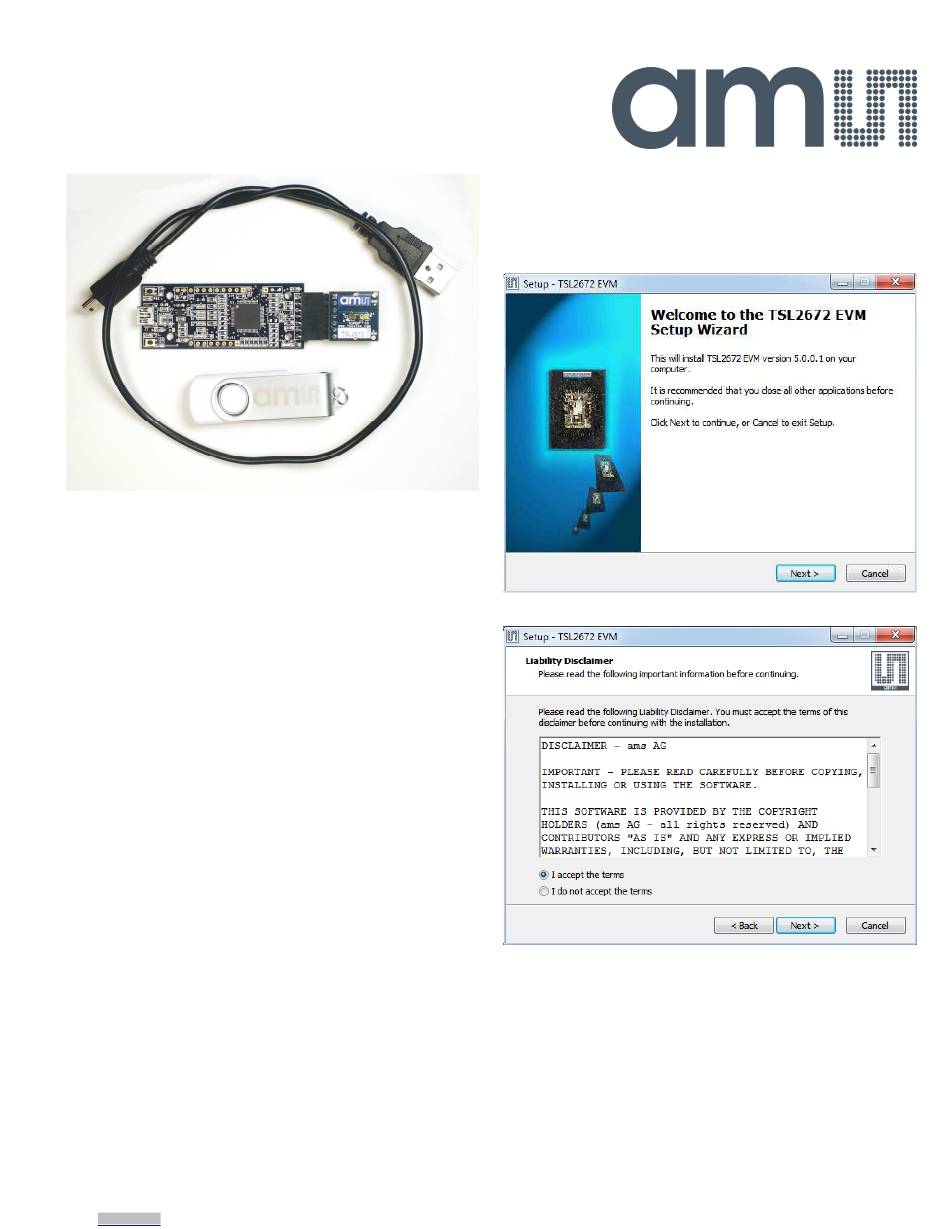

Figure 1: TSL2672 EVM Kit (shown)
This Quick Start Guide applies to the TSL2672 and TMD2672 EVM
kits. The illustrations in this guide show the TSL2672 EVM kit, but
the instructions apply to all of the kits.
O B
UT OF THE OX
Each Txx2672 EVM comes with the following components:
•
Controller board v2.1
•
Txx2672 Daughterboard
•
USB Cable with A connector and mini B connector
•
Flash Drive with Application Software and Documents
•
Quick Start Guide (not shown)
S I
OFTWARE NSTALLATION
Most PCs should have one or more Universal Serial Bus (USB)
ports. Install the
ams
1. Double-click the Setup.exe file on the flash drive, or
2. Click Start -> Click Run -> Type E: setup.exe and press
Enter. IMPORTANT: Use the appropriate drive letter in
the above command to install the software. Flash Drive
will commonly be assigned the next available drive letter
for example C: hard drive D: CD-ROM E: flash drive
The Digital Light Sensor Setup Wizard will open and guide you
through the installation of the Txx2672 host software. (Figures 2
through 8). To re-install, run the setup.exe file again. To remove
the software from your computer (Figure 9), select
Txx2672 EVM -> Uninstall Txx2672 EVM (where "xx" is replaced
with "SL" or "MD" as appropriate) or use the Windows Control
Panel.

Connect Hardware

Plug the Txx2672 Daughterboard into the Controller board. (Figure
1) Always use ESD procedures when handling the EVM.
Using the enclosed USB cable, plug the mini-B connector into the
EVM module. Using the other end of the cable, plug the USB A-
connector into a USB port on the computer.
Rev 1.1
Arrow.com.
Downloaded from
flash drive into an unused USB port.
ams

Start Application

Click the Digital Light Sensors icon on the desktop.
->
Figure 2: Welcome Screen
Figure 3: Liability Disclaimer
