Summary of Contents for AMS TSL2541

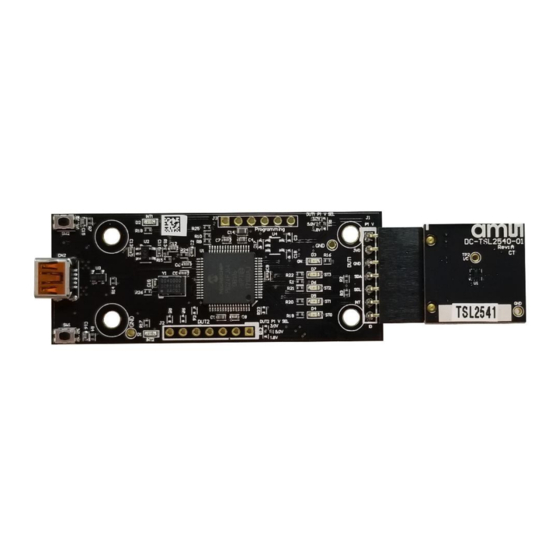

- Page 1 Quick Start Guide TSL2541 EVM TSL2541 ALS, Light-to-Digital Sensor Evaluation Kit Version 1.0...
- Page 2 TSL2541 EVM Getting Started Guide Contents Out of the Box ........................3 Software Installation ......................3 Connect Hardware ....................... 5 Start the Application ......................5 Uninstall Application ......................6 Contact and Support ......................6 Page 2...
- Page 3 Flash Drive will commonly be assigned the next available drive letter for example C: hard drive D: CD-ROM E: flash drive 3. The Setup Wizard will open and guide you through the installation of the TSL2541 host software, (Figure 2 through 8).
- Page 4 TSL2541 EVM Getting Started Guide Figure 2. Welcome Screen Figure 3. Liability Disclaimer Figure 4. Select Installation Folder Figure 5. Select Start Menu Folder Figure 6. Installation in Progress Figure 7. Information Screen Page 4...
- Page 5 LED still does not flash, check the PC for USB error messages. Start the Application To start the application select ams > TSL2541 EVM > TSL2541 EVM on the All Programs menu. The default installation directory depending on the device and the operating system you are using...
- Page 6 TSL2541 EVM or use the Windows Control Panel. Figure 9. Remove Installation Contact and Support For detail in using the TSL2541 EVM please refer to the User’s Guide included in the documents. If any technical difficulties are encountered, use the Tech Support page at www.ams.com/Support...
