- Page 1 Edge VS5010 and VS5051 User Manual PDK-13010-v.6.0 Edge VS5010 and VS5051 User manual...
-
Page 2: Table Of Contents
11.5 Perform full test and confirmation of alarms ........10 12 Specifications ..................11 13 Safety ....................12 14 Conformance ..................13 15 Contact ....................13 15.1 Installation and Service Support ............13 15.2 Sales enquiries ................13 16 Disclaimer ....................13 17 Copyright ....................14 page 2 PDK-13010-v.6.0 Edge VS5010 and VS5051 User manual... -
Page 3: About This Manual

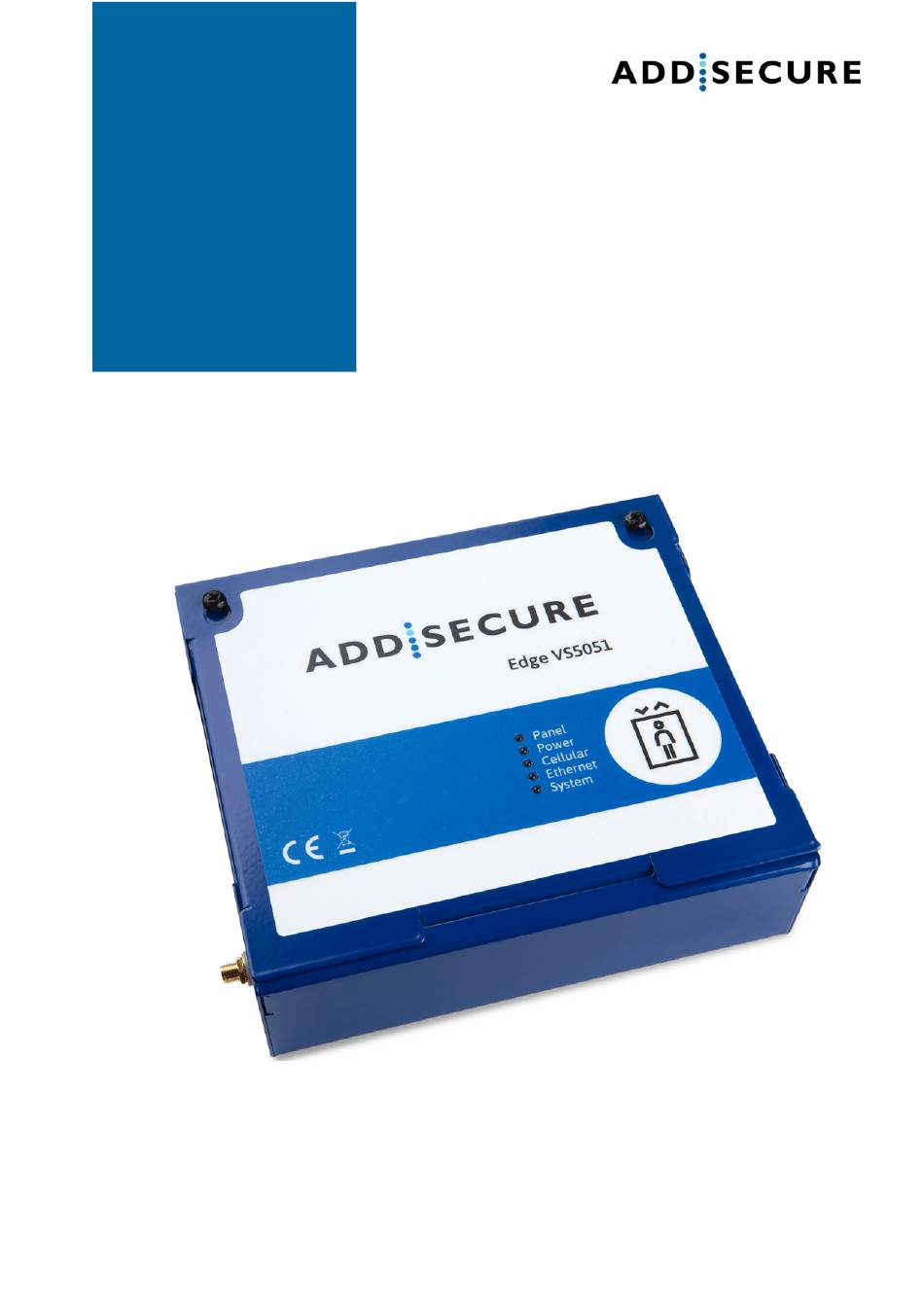

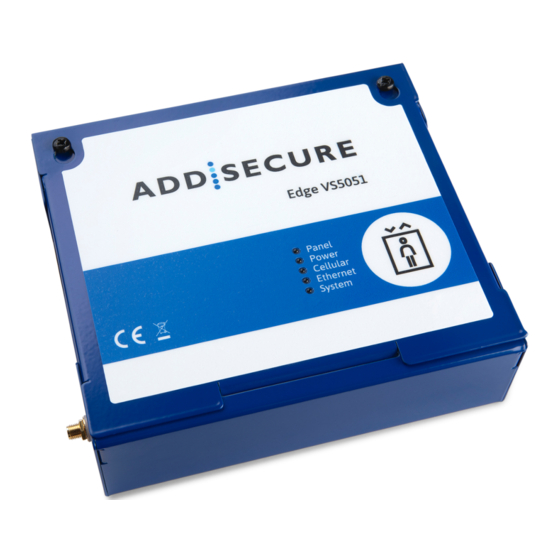

Edge terminals, based on the successful range of AoIP Alarm over IP (AoIP) terminals from AddSecure, offer a new concept in AoIP, providing cost effective VoIP/AoIP for alarm systems. Both the Edge VS5010 and the Edge VS5051 are based on the Edge VS5000 motherboard. This motherboard is a... -
Page 4: Before You Start
ARC, have signed up for a subscription with AddSecure that defines the chosen service at the agreed subscription grade. For elevator alarms, AddSecure the grade is set at EU – Grade 2. A connection to one selected ARC is included in the basic subscription. Additional ARCs are optional. -
Page 5: Board Configuration
⑱ PSU sense ⑤ SIM card slot ⑲ Outputs (3) ⑥ Primary cellular antenna port (TX/RX) ⑳ RS485 port ⑦ Test Button (Signal Strength) Dial capture port ⑧ USB port (diagnostics) Battery port PDK-13010-v.6.0 Edge VS5010 and VS5051 User manual page 5... -
Page 6: Installation
Ensure that the interface cables are not close to any power cables as this could cause interference from electrical noise. Position and affix the VS5000 terminal in the enclosure using the fixing kits supplied. page 6 PDK-13010-v.6.0 Edge VS5010 and VS5051 User manual... -
Page 7: Connecting Power
Connect the internal battery to the PCBA battery connector (22), see section 6, “Board Configuration”. Note: Only use battery packs provided by AddSecure. 7.6 Connecting voice panels and alarm transmitters All voice panels or alarm panels sited in elevators use the two-wire Dial Capture port (21), see section 6, “Board Configuration”. -
Page 8: Powering Up The Terminal
The terminal is now installed, so the power supply can now be connected. Switch the power on and check that the indicator “SYS LED” is flashing (top green LED on PCBA). If it does not, you need to contact AddSecure. 8 Configuring the terminal The terminal does not need to be configured. -
Page 9: Configuration Of The Voice Panels
1 to 5 as shown in the table below. These are used to report status locally and to allow the installer to install the terminal correctly so it can signal to the AddSecure Connect platform. Flicker on... -
Page 10: Maintenance Routine
If the self- test finds the battery faulty, the Power LED will flicker. Also, a message will be sent through AddSecure Connect to the ARC. The battery should then be replaced with a new battery from AddSecure. -
Page 11: Specifications
Alarm protocols supported SIA (level 1 to 3) reference SIA DC-03-1990.01(R2003.10) Contact ID reference SIA DC-05-1999.09 FF (Scancom) Robofon (Dial capture only) Telim (Dial capture only) CESA (Dial capture only) Panel protocols supported PDK-13010-v.6.0 Edge VS5010 and VS5051 User manual page 11... -
Page 12: Safety
In order to avoid safety hazards, care should be taken when connecting telecommunications equipment to ensure that only compatible interfaces are connected. This is measured using SELV values. These are defined as a page 12 PDK-13010-v.6.0 Edge VS5010 and VS5051 User manual... -
Page 13: Conformance
+47 911 33 700 +46 8 685 15 10 Telephone: Email: Email: sales.support.no@addsecure.se sales.support.se@addsecure.se 16 Disclaimer The information contained in this document is supplied without liability for any errors or omissions. PDK-13010-v.6.0 Edge VS5010 and VS5051 User manual page 13... -
Page 14: Copyright
17 Copyright No part of this document may be reproduced or used except as authorized by contract or other written permission from AddSecure. The copyright and foregoing restriction on reproduction and use extend to all media in which the information may be embedded.
