  • Page 1 Edge RT7020 Enterprise User manual (EN) Edge RT7020 Enterprise User manual (EN) PDK-15369-v.2.1 2021-03-31...

  • Page 2: Table Of Contents

    3.1 Digital inputs ..................4 3.2 Analogue alarm from connected panel ........... 4 3.3 Alarms over IP .................. 4 Connecting an analogue dialer to the Edge RT7020 Enterprise ....5 Special considerations when connecting an Edge RT7020 Enterprise to a fire panel ....................5 Edge RT7020 Enterprise–...

  • Page 3: Document Information

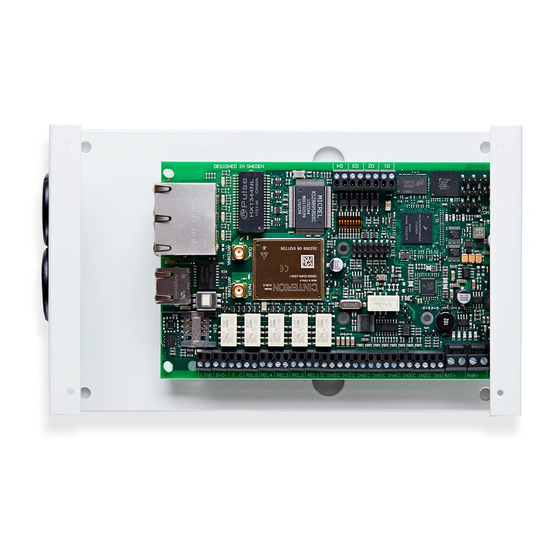

    The lid of the cabinet is then mounted with four screws, one in each corner. 3 Edge RT7020 Enterprise – System description Edge RT7020 is primarily used as an external dialer and/or IP-converter in fire and intrusion system installations. It offers secure communication over fixed line Ethernet (primary) or cellular via 2G, 3G or 4G networks (secondary).

  • Page 4: Digital Inputs

    Digital inputs Edge RT7020 is in its standard configuration equipped with 8 digital inputs (screw terminals) used for activation of alarm transmission. Each of the inputs to be used are to be configured with event codes during the system configuration. The inputs are activated by either potential free closing or opening to the system ground plane, depending on system configuration.

  • Page 5: Connecting An Analogue Dialer To The Edge Rt7020 Enterprise

    4 Connecting an analogue dialer to the Edge RT7020 Enterprise The Edge RT7020 simulates an analogue telephone line on the connector block marked “LINE”. Here two wires are connected to an analogue dialer’s line connector (ex Tx & Rx). The Edge RT7020 receives numbers dialed by the dialer and delivers a start tone for SIA.

  • Page 6: Edge Rt7020 Enterprise- Programming And Commissioning

    For instance, to test the alarm for Ethernet error, remove the Ethernet cable from its connector block. 6 Edge RT7020 Enterprise– programming and commissioning All programming files for the Edge RT7020 are created in the web portal Edge Manager. The Edge RT7020 is then programmed and commissioned easily directly from the portal.

  • Page 7: Programming Of The Edge Rt7020 Enterprise

    Edge RT7020 will still function since the terminal automatically choses to use the radio path instead. Communication via fixed Ethernet has advantages over radio with greater speed and reduced data traffic. Programming of the Edge RT7020 Enterprise • Create the programming file in the web portal https://edgemanager.addsecure.com...

  • Page 8: The Button "New Hardware

    Please note that if the PCB is exchanged on the unit a new activation of the terminal towards the Connect platform, and the Alarm Receiving Centre, must be performed. Therefore AddSecure and the ARC must be contacted. • Check that the replacement product is of the same type and model as the product it’s replacing.

  • Page 9: Technical Specifications Edge Rt7020 Enterprise

    8 Technical Specifications Edge RT7020 Enterprise Connections Connection Function LINE Simulated telephone line for connecting of analogue dialer. Designed for a local direct connection, i.e. not for connections between buildings. D+ D- RS-485 interface for communication to/from external equipment. T: For connecting external tamper (if such is present) C: Common (GND) REL5 Normally open.

  • Page 10: Dip Switches

    Please note that the screw terminals are specified for AWG 16-30 which means that cables of 0,5-0,75mm shall be used. Please also note that all connected cables to the Edge RT7020 shall be secured in such a way that they are prevented from coming loose or have the cable isolation damaged. In case cables are inserted into the enclosure via the membrane, holes in the membrane shall be done using an awl and not by knife.

  • Page 11: Power Supply, Consumption And Working Temperature

    Power supply, consumption and working temperature 8.4.1 Power supply Max 11-30 VDC, fused with external fuse 1A. When mounting the Edge RT7020 in its own standard enclosure the power supply must be limited to max 4A. This is required for both PWR and BAT separately. 8.4.2 Power consumption In normal operation approximately 200 mA @ 12 VDC...
