Summary of Contents for AddSecure Edge VS5010

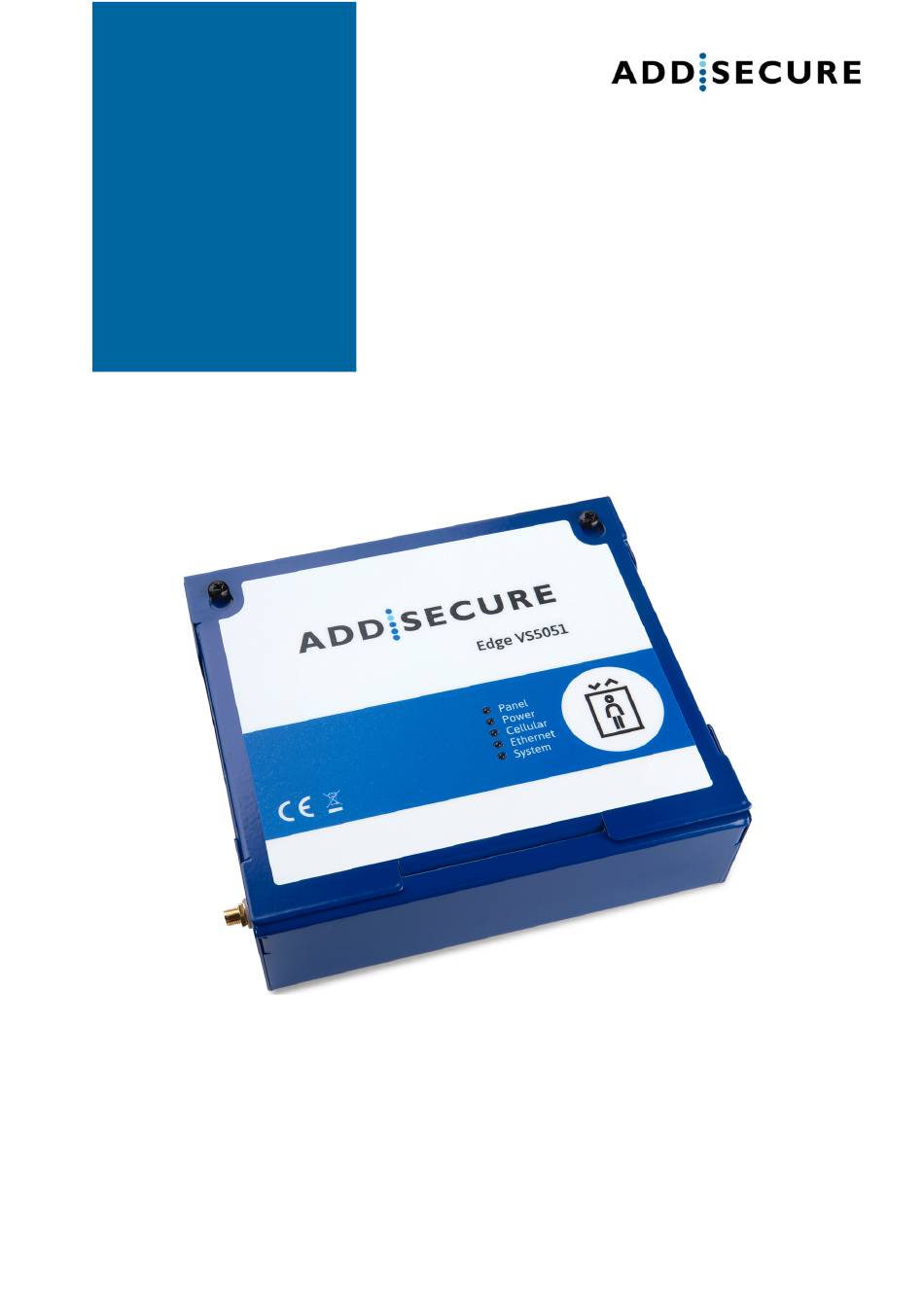

- Page 1 Connect Intercom User manual PDK-15088-v.2.0 Connect Intercom User Manual.docx...
-
Page 2: Table Of Contents
Table of Contents About this manual ...................3 Target group ....................3 Introduction ....................3 3.1 Presentation of Connect Intercom ..........3 3.2 Presentation of Addsecure connect ..........3 Before you start ..................3 Board (PCBA) configuration ..............4 Installing the terminal ................5 6.1 Mounting the terminal ..............5 6.2 Connecting power ................5... -
Page 3: About This Manual
3.1 Presentation of Connect Intercom Connect Intercom is a managed service solution for your door intercom system. It uses either an Edge VS5051 terminal or an Edge VS5010 terminal installed adjacent to and connected to a new or existing door intercom. It provides a replacement IP telephony service using Session Initiation Protocol (SIP) for existing telephony that uses PSTN or ATA technology. -
Page 4: Board (Pcba) Configuration
Board (PCBA) configuration ① Ethernet 1 ⑨ Power out: Vout3 (Call Connect) ② Ethernet 2 ⑩ Power out: Vout2 (Buzzer) ③ LEDs ⑪ Power out: Vout1 (Emergency Light) BT = Not in use ⑫ DC power in PNL = Panel LED ⑬... -
Page 5: Installing The Terminal

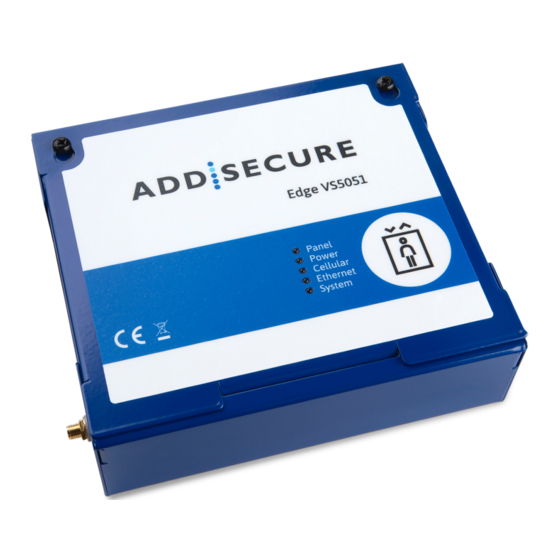

Installing the terminal 6.1 Mounting the terminal The Edge VS5010 is not supplied with an enclosure, so the PCBA must first of all be installed in a suitable enclosure. The Edge VS5051 comes pre-installed in an enclosure. The enclosure containing the terminal should be positioned close to the intercom box and where there is a good cellular connection. -
Page 6: Configuring The Terminal
The terminal does not need to be configured. All the configuration is done by AddSecure directly to the unit. Commissioning VS5051 terminals do not require manual programming. All required information for configuration will have been provided when the AddSecure Subscription Application 5t was completed. Purpose Single Path “Status OK”... -
Page 7: Communication Test
If the self- test finds the battery faulty, the Power LED will flicker, (see section 9 “Commissoning”) and a message will be sent through AddSecure Connect to the ARC. The battery should then be replaced with a new battery from AddSecure. -
Page 8: Specifications
TCP ports (outbound) 53165 (Alarms & Polling), 51292 (Diagnostic & Reflashing), 10001 (Upload/Download) Alarm transmission interfaces Interface to ARC AddSecure Connect Dial capture interface to voice Two-wire interface via terminal block. panel Serial interfaces RS485, TTL (max 3 metres), RS232 (max 3 metres) -
Page 9: Safety
Section Details Output voltage 12V DC Total output current (shared, 500mA continuous rating) Current protection 1.5A electronic protection, 2.2A polyfuse Number of switchable outputs Voltage at which fault is reported Voltage at which fault is restored Power storage device Type 7.2V NiMH rechargeable batteries Capacity 3000mAh... -
Page 10: Contact
16 Copyright No part of this document may be reproduced or used except as authorised by contract or other written permission from AddSecure. The copyright and foregoing restriction on reproduction and use extend to all media in which the information may be embedded.
