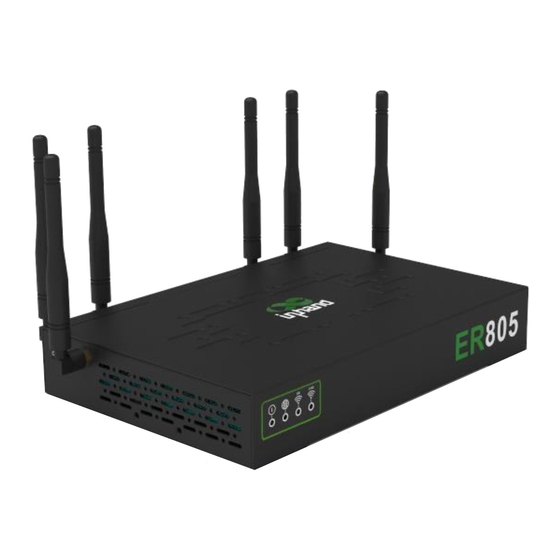

InHand ER805 5G Edge Router
Quick Installation Manual
V1.3—2021.09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER805 and is the answer not in the manual?

Questions and answers

Related Manuals for InHand ER805

Summary of Contents for InHand ER805

  • Page 1 InHand ER805 5G Edge Router Quick Installation Manual V1.3—2021.09...

  • Page 2: Table Of Contents

    5.1 Restore to Factory Setting ......................11 5.1.1 Web Setting .......................... 11 5.1.2 Hardware Restore ........................ 12 5.2 Import/Export Configuration ......................12 5.3 Log and Diagnose Record ......................12 5.4 Connect to InHand platform ......................13 6 Description of Panel Indicator ........................13...

  • Page 3: Overview

    Overview This manual is a guide for the installation and operation of ER805 series routers from InHand Networks. Please confirm the product model and packaging accessories (power terminal, antenna), and purchase SIM cards from local network operators All statements, information and recommendations in this manual do not constitute any expressed or implied warranty.
  • Page 4 Magnetic antenna, can change to stick Wi-Fi antenna antenna optionally Power cable Power adaptor 2 hangers and 2 wall mounting lugs Panel mounting lug SIM card needle/slot Rubber pad Certificate and product warrant card...

  • Page 5: Panel Introduction And Structural Size

    2 Panel Introduction and Structural Size 2.1 Panel Introduction...

  • Page 6: Structural Size

    ● Check for cables and connectors required for installation. 3.1 SIM card Installation ER805 supports dual Nano SIM card. Eject SIM card slot by stabbing the hole in the left via needle or other pointed thing, and then install SIM card.

  • Page 7: Antenna Installation

    Internet via cellular, please disable the "dial-up interface", otherwise the device will restart after trying dial up and fail for several times. 4.1 Wired to Internet Step 1: Connect power and Ethernet cable to ER805, connect WAN port to public network, and one of LAN to PC.
  • Page 8 Step 4: Create a WAN port in “Internet” in the left menu. ER805 wiill enable WAN1 as DHCP mode by default. It will connect to Internet is the upstream device also works in DHCP mode.
  • Page 9 There are two methods to obtain IP address: Dynamic DHCP (recommend) and Static IP (save after configure manually). Obtain IP address by Dynamic Address (DHCP) Obtain IP address by Static IP Step 5: Check the connectivity in “System >> Tools >> Ping”.

  • Page 10: Sim Card Dialup

    4.2 SIM Card Dialup Step 1: Insert the SIM card when device is power off. Connect 4 4G/5G antennas to the router, and connect PC to router. Then power on. Note: When insert or plug out SIM card, please unplug the power cable to prevent data loss or damage the router.

  • Page 11: Wi-Fi To Internet

    Step 1: Connect Wi-Fi antenna, and connect PC to the device. Access to router’s WEB management page. (refer to 4.1) Step 2: Choose the frequent band of Wi-Fi. ER805 supports 2.4G and 5G Wi-Fi. These two Wi-Fi can work independently at the same time. 2.4G Wi-Fi has higher penetration while 5G Wi-Fi has higher transmission speed.
  • Page 12 SSID name and encryption authentication mode, and terminal devices will need to input password when connecting. Client mode: ER805 connects to other AP Wi-Fi device to access the Internet. Click Add button in “Internet” page, select “Wi-Fi(STA)” and then configure other parameters.

  • Page 13: Quick-Use Guidance

    5 Quick-Use Guidance 5.1 Restore to Factory Setting 5.1.1 Web Setting Login to the WEB management page, click "System" in the left menu. Click "Restore to factory" button in “Device Options”, router will restore to default settings after reboot.

  • Page 14: Hardware Restore

    5.1.2 Hardware Restore To restore to default settings via the reset button, please perform the following steps: 1. Press the RESET button immediately after power on the device. 2. System indicator will blink after a few seconds, and after blinking for about half a minute, it will be steady on.

  • Page 15: Connect To Inhand Platform

    5.4 Connect to InHand platform Access to Incloud Manager (star.inhandcloud.com), follow the prompts to register an account and then login. Click "Add" in "Device" page, enter "Device name" as you wish and enter the "Serial Number" in router’s "Dashboard" page. Click "Save". Platform will verify the serial number and add the device to your account.
  • Page 16 ER805 LED Status and Definition Indicator Steady off --- Power off. Blinking in blue --- System starting. System Steady in blue --- System operates properly. Blinking in --- System faults. Blinking in green --- System upgrading. Blinking in --- Network connection lost.
