- Page 1 InHand ER805-NRQ3 User Manual InHand ER805-NRQ3 5G Edge Router User Manual V1.0—2021.09 www.inhand.com.cn Beijing InHand Networks Technology Co., Ltd.
- Page 2 The contents of this manual cannot be copied or reproduced in any form without the written permission of InHand. Due to continuous updating, InHand cannot promise that the contents are consistent with the actual product information, and does not assume any disputes caused by inconsistency of technical parameters.
-
Page 3: Table Of Contents
InHand ER805-NRQ3 User Manual CONTENTS 1 Overview ......................1 2 Hardware ......................2 2.1 Indicator Description ....................2 2.2 Restoring to Default Settings via the Reset Button ........3 2.3 Antenna……………………………………………………………………………………………..4 3 Default Settings ....................5 4 Login and Network Access ................6 4.1 Network Access via Ethernet ................ - Page 4 InHand ER805-NRQ3 User Manual 11 Security ......................27 11.1 Inbound/Outbound Rules ................27 11.2 Port Forwarding ....................28 12 Services ......................30 12.1 Interface Management ..................30 12.2 DHCP server ......................30 12.3 Fixed Address List ....................30 12.4 Static Routes......................31 13 System ......................
-
Page 5: Overview

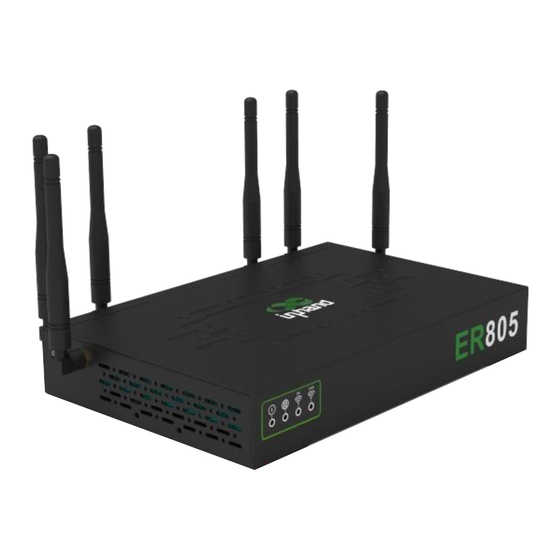

1 Overview InHand ER805-NRQ3 5G Edge Router is a new generation 5G edge router launched by InHand Networks. With 4G / 5G wireless network and a variety of broadband services, this product can provide Internet access for all industries of IoT. The product adopts SD-WAN technology to provide uninterrupted data communication link experience for industry applications. -
Page 6: Hardware
InHand ER805-NRQ3 User Manual 2 Hardware 2.1 Indicator Description ER805-NRQ3 LED Status and Definition Indicator Steady off --- Power off. Blinking in blue --- System starting. System Steady in blue --- System operates properly. Blinking in --- System faults. Blinking in green --- System upgrading. -
Page 7: Restoring To Default Settings Via The Reset Button
InHand ER805-NRQ3 User Manual 2.2 Restoring to Default Settings via the Reset Button To restore to default settings via the reset button, please perform the following steps: 1. Press the RESET button immediately after power on the device. 2. System indicator will blink after a few seconds, and after blinking for about half a minute, it will be steady on. -
Page 8: Antenna
InHand ER805-NRQ3 User Manual 2.3 Antenna: List of antenna： Type of Antenna Model Number Manufacturer Max Gain 5G Sucker antenna GY-XDK-OCL2-B2JG24.1 ShenZhen GuYou Technology Co., Ltd. 5dBi WiFi Sucker GY-XPF-BCL2.5-GJG22 ShenZhen GuYou Technology Co., Ltd. 3dBi antenna Note: 1. Cellular1 is the main antenna of the 3/4G, Cellular2 is the AUX antenna of the 3/4G. -
Page 9: Default Settings
Function Default Settings Cellular Dual SIM card enabled, use SIM1 by default. − Wi-Fi 2.4G AP mode enabled, SSID: ER805-NRQ3- − followed with the last 6 letters of the AP MAC. Wi-Fi 5G AP mode enabled, SSID: ER805-NRQ3-5G- − Wi-Fi followed the last 6 letters of the AP MAC. -
Page 10: Login And Network Access
Access 4.1 Network Access via Ethernet Step 1: Connect power and Ethernet cable to ER805-NRQ3, connect WAN port to public network, and one of LAN to PC. Step 2: Configure PC to be in the same network segment as the IP address of the router. - Page 11 InHand ER805-NRQ3 User Manual Obtain an IP address automatically/manually Step 3: Access to the default IP address 192.168.2.1 in a browser, enter username and password(adm/123456 by default) then access to router’s WEB management page. If the browser alarms the connection is not private, show advanced, and proceed to access to the address.
- Page 12 InHand ER805-NRQ3 User Manual Step 4: Create a WAN port in “Internet” in the left menu. ER805-NRQ3 wiill enable WAN1 as DHCP mode by default. It will connect to Internet is the upstream device also works in DHCP mode. There are two methods to obtain IP address: Dynamic DHCP (recommend) and Static IP (save after configure manually).
- Page 13 InHand ER805-NRQ3 User Manual Obtain IP address by Static IP Step 5: Check the connectivity in “System >> Tools >> Ping”.
-
Page 14: Network Access Via Sim Card
When insert or plug out SIM card, please unplug the power cable to prevent data loss or damage the router. ER805-NRQ3 supports 4 antennas, please connect all antennas to obtain high communication quality. Step 2: Open a browser and access to router’s WEB management page. (refer to 4.1) - Page 15 InHand ER805-NRQ3 User Manual within a few minntes. If the device cannot connect to Internet, please disable and restart dialup. (If you use a private network SIM card, you also need to configure APN parameter) Step 4: Check the dialup status in “Dashboard >> Interface Status”, if it shows green in Cellular icon, the router has connected to Internet by SIM card.
-
Page 16: Network Access Via Wi-Fi
Step 1: Connect Wi-Fi antenna, and connect PC to the device. Access to router’s WEB management page. (refer to 4.1) Step 2: Choose the frequent band of Wi-Fi. ER805-NRQ3 supports 2.4G and 5G Wi-Fi. These two Wi-Fi can work independently at the same time. 2.4G Wi-Fi has higher penetration while 5G Wi-Fi has higher transmission speed. - Page 17 InHand ER805-NRQ3 User Manual Client mode: ER805-NRQ3 connects to other AP Wi-Fi device to access the Internet. Click Add button in “Internet” page, select “Wi-Fi(STA)” and then configure other parameters.
- Page 18 InHand ER805-NRQ3 User Manual...
-
Page 19: Dashboard
InHand ER805-NRQ3 User Manual 5 Dashboard Click “Dashboard” in the left menu to access to Dashboard, and check Device Information, Interface Status, Traffic Statistics and other information of the device. Click interface icon in Interface Status, and check detailed information of... -
Page 20: Status
6.2 Clients Check the information like name, IP address or MAC address of the device connected to ER805-NRQ3 in Clients page. 6.3 VPN Check the status and the traffic consume of the VPN in ER805-NRQ3 in VPN page. - Page 21 InHand ER805-NRQ3 User Manual...
-
Page 22: Internet
User can check the status of the upstream link interface, add or delete WAN2 or Wi-Fi (STA) interface and edit or set policy for these interface. ER805-NRQ3 support up to two WAN interface, LAN1 will change to WAN interface if open WAN2. -
Page 23: Optimal Forwarding & Load Balancing
ER805-NRQ3 supports working at optimal forwarding mode or load balancing mode, and use optimal forwarding by default. Optimal Forwarding: ER805-NRQ3 will choose the best available link to forward data traffic in this mode. Load Balanciing: ER805-NRQ3 will distribute data traffic to all available... -
Page 24: Local Network
Name, VLAN, DHCP server and other parameters of this new network. Please ensure the amount of existed LAN in ER805-NRQ3 is less than 16, and the new LAN’s IP address or VLAN will not be clashed with other existed LAN. - Page 25 InHand ER805-NRQ3 User Manual...
-
Page 26: Wi-Fi
9 Wi-Fi Client devices can use Wi-Fi to connect to ER805-NRQ3 to access to Internet, or ER805-NRQ3 can use Wi-Fi to connect to other AP. User can check, add or configure Wi-Fi network in Wi-Fi page. Edit Wi-Fi: Click Edit button in the right, configure SSID, password or other... - Page 27 InHand ER805-NRQ3 User Manual Add Wi-Fi: Add a new Wi-Fi by clicking Add button in the left. If there is a Wi-Fi (STA) interface use the same frequency with the new Wi-Fi, the Status of the new Wi-Fi will be disable and not able to change.
- Page 28 InHand ER805-NRQ3 User Manual...
-
Page 29: Vpn
InHand ER805-NRQ3 User Manual 10 VPN VPN is intended to establish a private network on the public network for encrypted communication. A VPN router enables remote access by encrypting data packets and converting the destination address of data packets. VPN can be realized by a server, hardware, or software. - Page 30 InHand ER805-NRQ3 User Manual...
-
Page 31: Security
InHand ER805-NRQ3 User Manual 11 Security Click “Security” in the left menu to enter Security page, and configure Inbound/Outbound rules and port forwarding. 11.1 Inbound/Outbound Rules User can set rules to control data traffic based on interface. For example: User can use inbound rules to forbid some of IP addresses to access to router when under attack from such IP. -
Page 32: Port Forwarding
11.2 Port Forwarding When outside network accesses to some of ports of the router, ER805-NRQ3 will transfer this data to corresponding ports of inside device according to port forwarding rules. So that the service deployed in LAN can be available for public network, and one public IP can access to plenty of services by using multiple port forwarding rules. - Page 33 InHand ER805-NRQ3 User Manual...
-
Page 34: Services
DHCP realizes the dynamic configuration of the IP address. ER805-NRQ3 builds DHCP service based on internet list. DHCP server will be deleted if corresponding LAN is deleted. Local network should be under IP mode so that can enable DHCP server, VLAN only mode will not have DHCP server. -
Page 35: Static Routes
InHand ER805-NRQ3 User Manual ER805-NRQ3 will distribute IP address based on MAC address by using fixed address list. Distributed IP address should in the range of IP address of the local network. 12.4 Static Routes ER805-NRQ3 will forward data by specific route or interface after configure static routes in this page. -
Page 36: System
InHand ER805-NRQ3 User Manual 13 System 13.1 Cloud Management User can select which InHand platform to connect to in this page, and also disable InStarCloud service this page. 13.2 Change the Password The default username and password of ER805-NRQ3 is adm/123456. Please change the password for securiry. -
Page 37: Remote Access Control
13.3 Remote Access Control User can allow or forbid public network to access to ER805-NRQ3 and which port for public network to access to ER805-NRQ3 in this page. This rule will not influence LAN device to access to ER805-NRQ3. ER805-NRQ3 supports HTTP and HTTPS when access to its web configuration page. -
Page 38: Device Options
InHand ER805-NRQ3 User Manual NTP server: Configure domain name and port of the NTP server, ER805-NRQ3 will connect to this server to get correct time. 13.5 Device Options Reboot, upgrade firmware or reset to default factory settings in this page. -
Page 39: Device Alarms
ER805-NRQ3 will still record alarm events in “Status >> Events” even user does not select alarm events in this page. ER805-NRQ3 supports to record and alarm these events at present. -
Page 40: Tools
InHand ER805-NRQ3 User Manual 13.8 Tools 13.8.1 Ping Use ICMP protocol to check the connectivity to other IP address or domain name. Enter IP address or domain name in “Target”, and click “Start” to start ping. 13.8.2 Traceroute... -
Page 41: Capture
InHand ER805-NRQ3 User Manual Enter target IP address or domain name, select interface, and click “Start”. ER805-NRQ3 will trace link situation from itself to the target. 13.8.3 Capture User can use this feature to catch the data forwarding through one of the interfaces. - Page 42 InHand ER805-NRQ3 User Manual FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 43 InHand ER805-NRQ3 User Manual IC STATEMENT This device complies with Industry Canada license-exempt RSS standard(s): Operation is subject to the following Two conditions: (1) this device may not cause interference, and Frequency band 5150-5250 MHz restricted for indoor use only.
