Ojmar LOCKR COMBI 8001 Assembly Instructions page 3

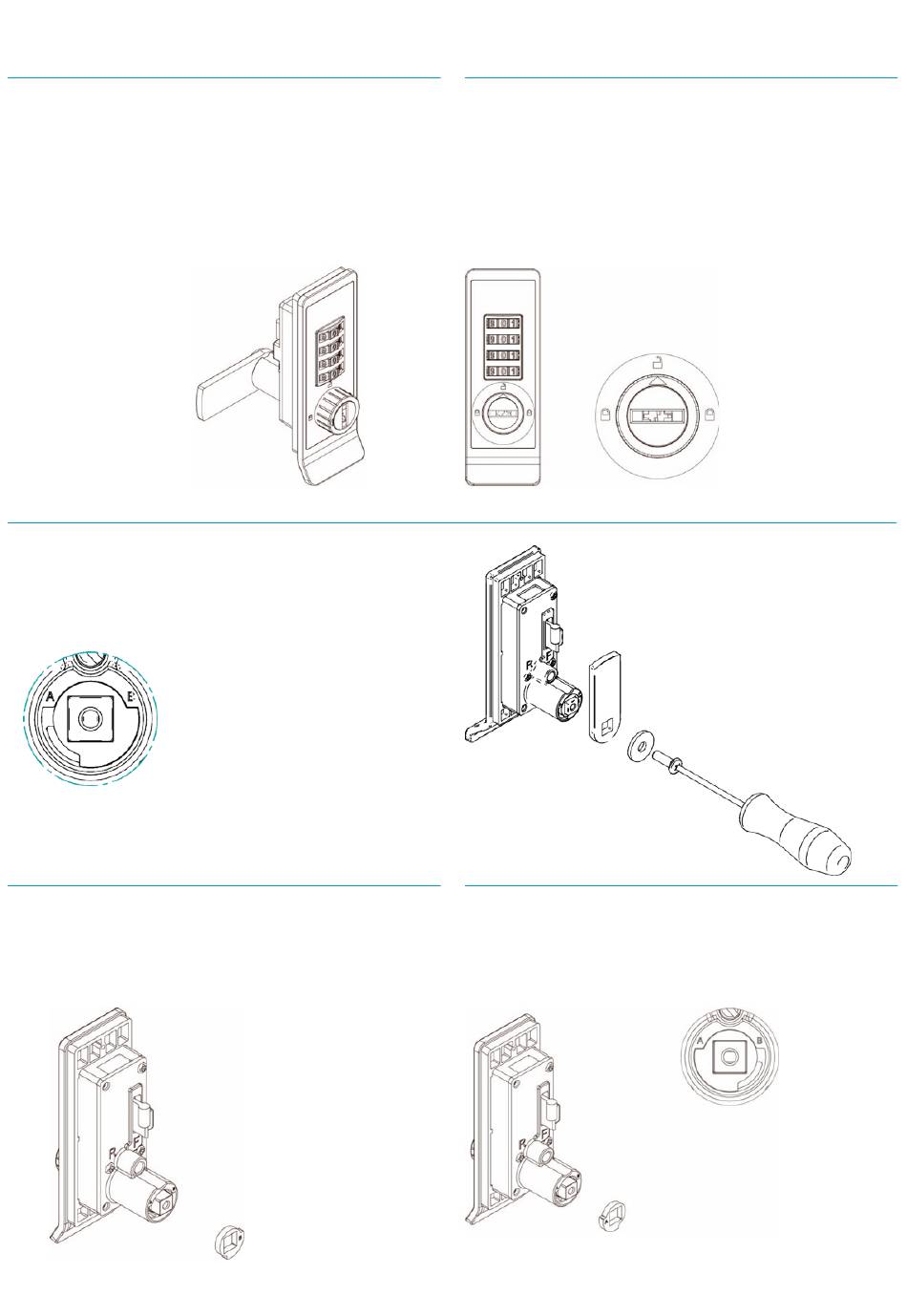

HOW TO CONVERT A RIGHT HAND (RH) LOCK TO A
LEFT HAND LOCK (LH).
IMPORTANT!
Please note all locks are supplied as stardard as RH. (See
diagram bellow) If LH locks are required please change hand
before fitting.
Before converting to a LH lock please ensure key cylinder is
inserted.
Right Hand
Lock (RH)
2.
Unscrew the fixing screw from the cam, removing both the cam and
washer. Do not turn. Please note position of end cap. See diagram
below:
A
Note position of
end cap in place
for RH operation
3.
Remove end cap.
1.
Ensure that the lock is in the open position with the cam
and the blue indicator in the unlocked position. See diagram
below:
4.
Turn end cap horizontally 180º and replace.
Please note position of end cap. See diagram below:
B
Note position of
end cap in place
for LH operation
