Installation and Operation, cont'd

IR 102 remote control connection

The SW8/12 VGA Ars switcher can be controlled via its RS-232 port and an infrared
signal. The IR 102 Remote Control Kit (part #70-224-01) is required.
To connect an IR 102 Receiver to an SW8/12 VGA Ars switcher:
1.
2.
100-240V 50/60Hz
I
N
P
U
T
S
1.2A MAX

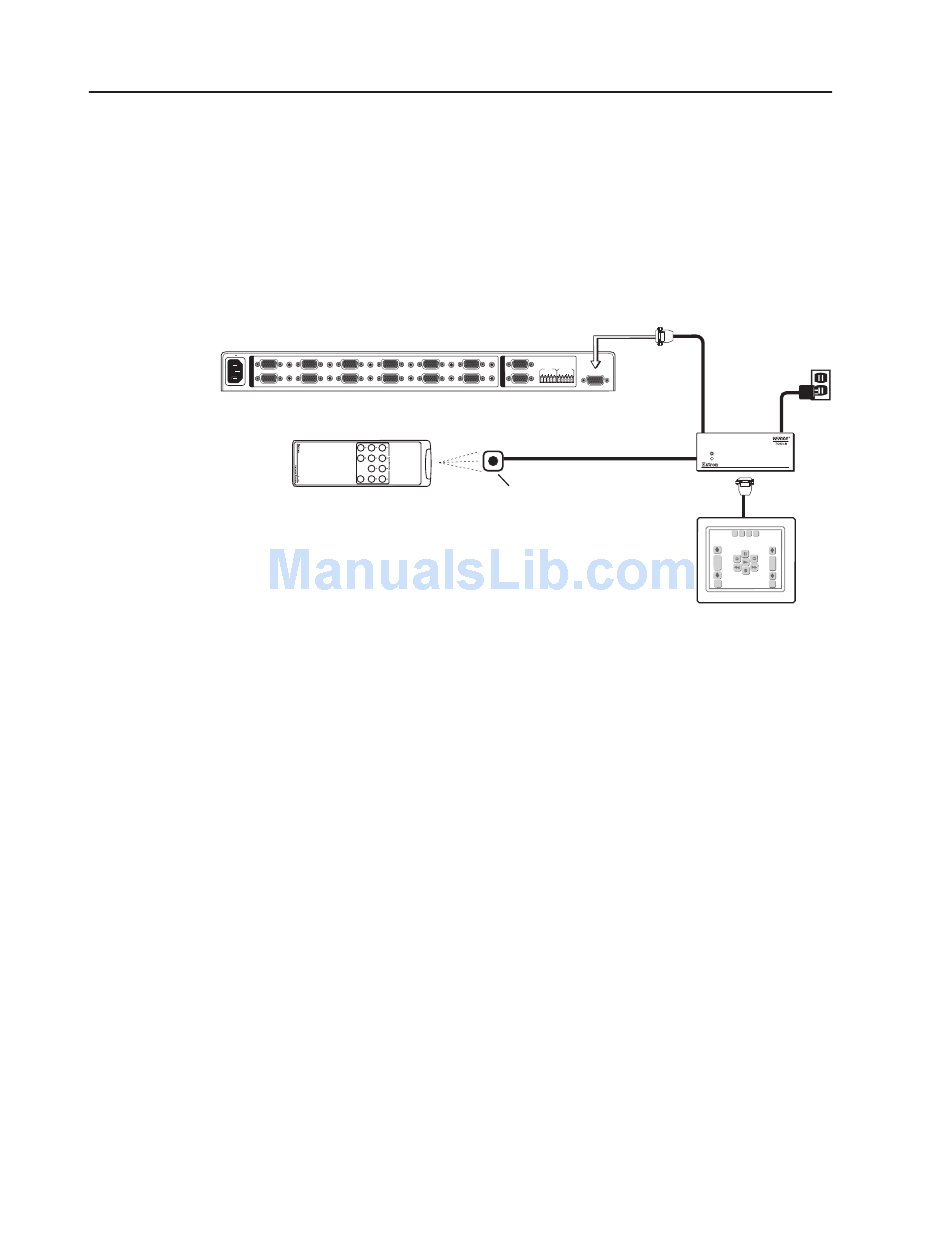

Figure 2-16 — A typical switcher application w/IR 102 remote control
2-12 SW8/12 VGA Ars • Installation and Operation
Connect a 9-pin serial cable, with only conductors 2, 3, and 5 connected, to the
RS-232 output port on the IR 102 receiver.
Connect the serial cable to the RS-232 port on the switcher's rear panel.
SW12 VGA Ars Switcher
1 3 5 7 9
2 4 6 8 10
IR Detector
IR 102 Remote Control
O
11 1 SW12 VGA Ars
U
T
FIXED VARIABLE
P
RS-232
L R L R
12 U 2
T
S
6.5' Cable
6' Cable
IR 102 Remote
Control Receiver
RS-232
Control
Power
Supply
IR-102
