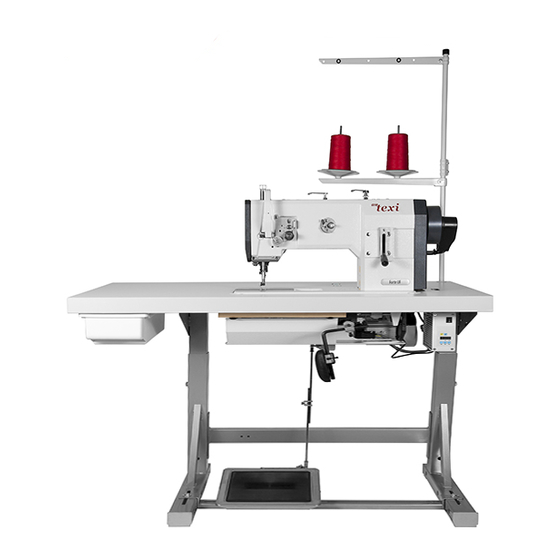

Index Contents ..................Page Adjustment ......................... 32 Notes on adjustment ......................32 Tools, gauges and other accessories for adjusting ............. 32 Abbreviations ........................32 Explanation of the symbols ....................32 Adjusting the basic machine ....................33 .05.01 Positioning the feed dog across the direction of sewing ............. 33 .05.02 Positioning the feed dog in the direction of sewing ............
= bottom dead centre Explanation of the symbols In this adjustment manual, symbols emphasize operations to be carried out or important in- formation. The symbols used have the following meaning: Note, information Service, repair, adjustment, maintenance Texi HD Forte UF instruction manual...
Loosen screws 1 and 2. Laterally align rock shaft 3 in accordance with the requirement. Now tighten screws 1. 1 and rock shaft 3 must exhibit neither play nor stiffness. Screws 2 remain loose for the following adjustments.. Texi HD Forte UF instruction manual...
Fig. 13 - 02 Set the longest stitch. Adjust rock shaft 1 in accordance with the requirement and tighten screws 2. Texi HD Forte UF instruction manual...
TDC. Fig. 13 - 03 Set stitch length "0". Bring the bottom feed dog to its TDC by turning the handwheel. Adjust feed dog carrier 1 (screws 2) in accordance with the requirement. Texi HD Forte UF instruction manual...
With the needle bar at BDC, the distance between the needle bar and the needle plate must be 15 mm. Fig. 13 - 04 Move needle bar 1 (screw 2) in accordance with the requirement without moving it laterally. Texi HD Forte UF instruction manual...
Position stop 8 so that it is touching needle bar frame 7 and tighten screw 6. The movement of needle bar frame 7 in guide 9 and of the top feed drive bars must not be stiff. Texi HD Forte UF instruction manual...
Turn feed lifting eccentric 1 (screws 2) in accordance with requirement 1. In this position, tighten the accessible screw 2 until feed lifting eccentric 1 can be turned Turn feed lifting eccentric 1 a little further in accordance with requirement 2. Tighten both screws 2. Texi HD Forte UF instruction manual...
Turn the feed driving eccentric 2 so that its eccentricity is facing downwards. Now turn it a little in the direction of rotation in accordance with the requirement. In this position, tighten screws 1. Carry out a check in accordance with the requirement. Texi HD Forte UF instruction manual...
Position the adjustable clamp against the feeler gauge and screw it tight. Remove the feeler gauge and turn the balance wheel in its direction of rotation until the adjustable clamp is touching the needle bar bearing. Texi HD Forte UF instruction manual...
Page 41
Position retaining collar 7 so that it rests on bevel gear 6 and tighten screws 3. Adjust the needle height in accordance with requirement 2. Align needle guard 5 in accordance with requirement 3. Texi HD Forte UF instruction manual...
Bring presser foot 1 to rest on the needle plate. Turn the handwheel in the direction of rotation until vibrating presser foot 2 has reached its highest point. Turn crank 3 (screws 4) in accordance with the requirement.. Texi HD Forte UF instruction manual...
Allow presser foot 1 to rest on the needle plate. Loosen screws 2 until feed lifting eccentric 3 Turn feed lifting eccentric 3 in accordance with the requirement. Tighten screws 2. Carry out a check in accordance with the requirement. Texi HD Forte UF instruction manual...
Thread the machine, insert test material and allow the presser foot to rest on the needle plate. Sew a few stitches by turning the handwheel and carry out a check in accordance with the requirement. Turn bobbin-case opener 1 (screw 2) in accordance with the requirement. Texi HD Forte UF instruction manual...
A description of how to snap the clutch back in follows. Fig. 13 - 12 Remove the jammed thread. Press piston 1 and turn the handwheel until hook 3 of pawl 2 clicks into groove 4. Texi HD Forte UF instruction manual...
Raise the presser foot using the hand lever. Align the compression plate 1 behind the tension bearing board 2 in accordance with the requirement. If the tension is correct, release pin 3 must not be under pressure. Texi HD Forte UF instruction manual...
Due to technical reasons, the length of the thread-check spring path can vary a little in either direction. Fig. 13 - 14 Adjust stop 1 (screw 2) according to requirement. To adjust the pressure of the spring, turn screw 3 (screw 4). Texi HD Forte UF instruction manual...
1 mm from the edge of the bobbin. Fig. 13 - 15 Move drive wheel 1 (screws 2) in accordance with requirement 1 und 2. Move stop latch 3 (screws 4) in accordance with requirement 3. Texi HD Forte UF instruction manual...
Presser-foot pressure .05.16 Requirement The material must be fed reliably even at top sewing-speed. There mustn’t be pressure marks on the material. Fig. 13 - 16 Turn screw 1 in accordance with the requirement. Texi HD Forte UF instruction manual...
Page 50
In accordance with the CE machinery directive 98/37/CE, appendix II B, we hereby declare that the type of construction of the sewing machine (sewing head): Forte UF (MA1245-6/01 CLPMN8) As delivered has been designed and manufactured for fitting in a sewing unit or sewing system and that its commissioning is prohibited until such time as the sewing unit or sewing system in which the sewing machine head is to be fitted is found to comply with the provisions of CE machinery directive (98/37/CE).
