Summary of Contents for Texi Catenaccio

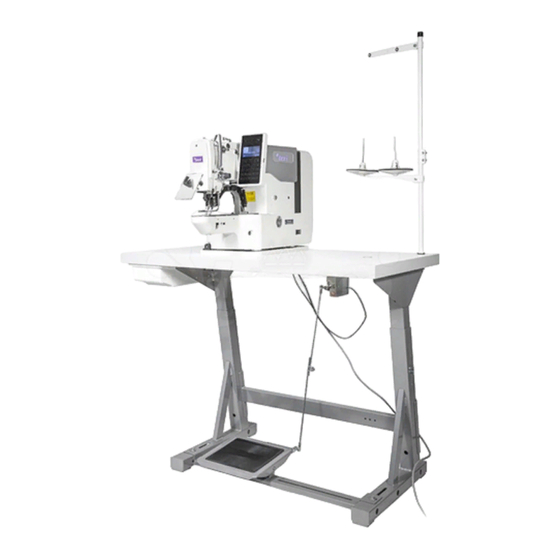

- Page 1 Operation manual High speed bartack sewing machine Catenaccio...
- Page 3 Texi Catenaccio – Operation manual 2019 [2] Safety Precautions Danger After closing the power switch and unplugging the power plug from the socket, wait for at least 5 minutes before opening the control box cover. Touching areas with high voltage can cause casualties.
- Page 4 Texi Catenaccio – Operation manual 2019 Be careful Sewing This sewing machine is only used by persons trained in safe During the sewing process, do not touch any moving parts operation. This sewing machine cannot be used for any or place the objects on the moving parts, because this will cause injuries to people or damage to the sewing machine.
- Page 5 Texi Catenaccio – Operation manual 2019 Maintenance and Inspection Only trained technicians can repair, maintain and inspect When the head of the sewing machine falls down, please sewing machines. make sure that the worktable is fixed and not moved at will.
-
Page 6: Table Of Contents
Texi Catenaccio – Operation manual 2019 TABLE OF CONTENTS I. EXPLANATION OF COMPUTER-CONTROLLED HIGH-SPEED LOCKSTITCH BAR TACKING MACHINE [1] SPECIFICATIONS................................1 [2] CONFIGURSTION................................2 1. Names of main unit..............................2 [3] INSTALLATION................................3 Attaching the connecting rod............................3 Installing the head support rod.............................3 Installation of the sewing machine head........................4 Installing the drain receiver............................5... -
Page 7: Explanation Of Computer-Controlled High-Speed Lockstitch Bartacking Machine
Texi Catenaccio – Operation manual 2019 Ⅰ. EXPLANATION OF COMPUTER-CONTROLLED HIGH-SPEED LOCKSTITCH BARTACKING MACHINE ［1］SPECIFICATIONS Sewing area : X (lateral) direction 40mm， Y (longitudinal) direction30mm Max. Sewing speed : 3200rpm (when sewing pitches are less than 5mm in X-direction and 3.5mm in Y-direction) Stitch length : 0.1-10mm (adjustable in 0.1mm step) -
Page 8: Configurstion
Texi Catenaccio – Operation manual 2019... -
Page 9: Installation
Texi Catenaccio – Operation manual 2019 ［3］INSTALLATION （1） FIX connecting rod① to installing hole B of pedal lever ② with nut③. When connecting rod ①is installed in installing hole A, the depressing stroke go the pedal is increased. （2） Secure the pedal④ with a wooden screw⑤... -
Page 10: Installation Of The Sewing Machine Head
Texi Catenaccio – Operation manual 2019 3. Installation of the swing machine head To prevent possible accidents caused by the full of the sewing machine, p erform the work b y two persons or more when the machine is (1).The oil plate ⑤ with wood screws ④ fixed in the corresponding position of the table. -
Page 11: Installing The Drain Receiver
Texi Catenaccio – Operation manual 2019... -
Page 12: Connecting The Operation Panel
Texi Catenaccio – Operation manual 2019 Please let the operation panel line connect with the electronic control box according to online identity, make sure the connection is correct. -
Page 13: Installing The Thread Stand
Texi Catenaccio – Operation manual 2019... -
Page 14: Attaching The Needle
Texi Catenaccio – Operation manual 2019 Pull out the thread by approximately 4cm from the needle after threading through the needle. ① .When the silicon oil is used, thread through thread guide for silicon I n s t a l l 2.Forthick thread, pass the thread through one hole only of needle bar thread... -
Page 15: Installing And Removing The Bobbin Case
Texi Catenaccio – Operation manual 2019 If the bobbin is installed in the bobbin case orienting the reverse direction, the bobbin thread pulling out will result in an inconsistent state. -
Page 16: Adjusting The Thread Tension
Texi Catenaccio – Operation manual 2019 6. Adjusting the thread tension If thread tension controller No.1①is turn clockwise, the length of remaining thread on the needle after thread trimming will be shorter. If it turned counterclockwise, the length will be longer. -
Page 17: Maintenance
Texi Catenaccio – Operation manual 2019 Bring needle bar ① to the lowest position of its stroke. Loosen needle bar connection screw ② and adjust so that upper marker line④ engraved on the needle bar aligns with the bottom end of needle bar bushing, lower ③. For F type only, adjust the needle bar to the position where it is lowered by 0.8 mm to 1 mm from the center of... -
Page 18: Adjusting The Lift Of The Work Clamp Foot
Texi Catenaccio – Operation manual 2019 Loosen setscrew ⑦of the shuttle, and ⑷. adjust the longitudinal position of the shuttle. To do this adjustment, turn shuttle race adjusting shaft ⑧clockwise or counterclockwise to provide a 0.05 to 0.1 mm clearance between needle ⑤ and the blade point of inner hook ④... -
Page 19: The Moving Knife And Counter Knife
Texi Catenaccio – Operation manual 2019... -
Page 20: Adjusting The Wiper
Texi Catenaccio – Operation manual 2019... -
Page 21: Replenishing The Designed Places With Grease
Texi Catenaccio – Operation manual 2019 8.Replenishing the designated places with grease When the sewing machine has been used for a certain number of times of sewing, error code No. E221 is displayed on the operation panel at the time of turning ON the power. - Page 22 Texi Catenaccio – Operation manual 2019...
-
Page 23: Adjusting The Position Of The Shear-Driving Pulley
Texi Catenaccio – Operation manual 2019... - Page 24 Texi Catenaccio – Operation manual 2019 Adjusting the wire-trimming safety sensor (1) Rotate the lift motor shaft to turn the lift cam to the lowest point of contact with the lift roller, this moment the screw is facing directly above, as shown in the figure a.
-
Page 25: Table Of The Standard Patterns And Standard Clamp Foot
Texi Catenaccio – Operation manual 2019... - Page 26 Texi Catenaccio – Operation manual 2019 10026247(L) 10026250(L) 10012344(L) 10026253(L) 10026256(L) 10026248(R) 10026251(R) 10012345(R) 10026254(R) 10026257(R) Work clamp foot 10026249 10026252 10012338 10026255 10026258 Without knurl Without knurl Without knurl Without knurl Without knurl Feed plate Sewing specification 10011556 guard...
-
Page 27: Table Of The Optional Parts
Texi Catenaccio – Operation manual 2019 ［7］Table of the optional parts Name of Parts Type Part No. Remarks Feed plate blank With knurl / processed 10012303 t=1.2 Sewing area lengthwise 20 X crosswise With knurl / processed 10014401 Sewing area lengthwise 30 X crosswise... -
Page 28: Troubles And Corrective Measures (Sewing Conditions)
Texi Catenaccio – Operation manual 2019 II. TROUBLES AND CORRECTIVE MEASURES (SEWING CONDITIONS) Trouble Cause Corrective measures ○ Adjust the clearance between the needle and ① Stitches are slipped at the shuttle to 0.05 to 0.1mm. start ○ Set soft-start sewing at the start of bar ②... - Page 29 Texi Catenaccio – Operation manual 2019 ⑤Needle thread is stepped on by the work clamp foot at the start of sewing (Needle bend) ①The counter knife is dull. ②The difference in level between the needle hole ○Replace the counter knife.
- Page 30 Texi Catenaccio – Operation manual 2019 7.Threads ①The moving knife has break at been improperly time of ○Correct the position of the moving knife. thread position。 trimming 8.Uneven ①The tension of thread ○Increase the tension of the thread take-up length of take-up spring is too spring.
-
Page 31: Iii. Drawing Of The Table
Texi Catenaccio – Operation manual 2019 III. DRAWING OF THE TABLE... - Page 32 Texi Catenaccio – Operation manual 2019...
