Summary of Contents for SeaLevel DUOCOM 3088

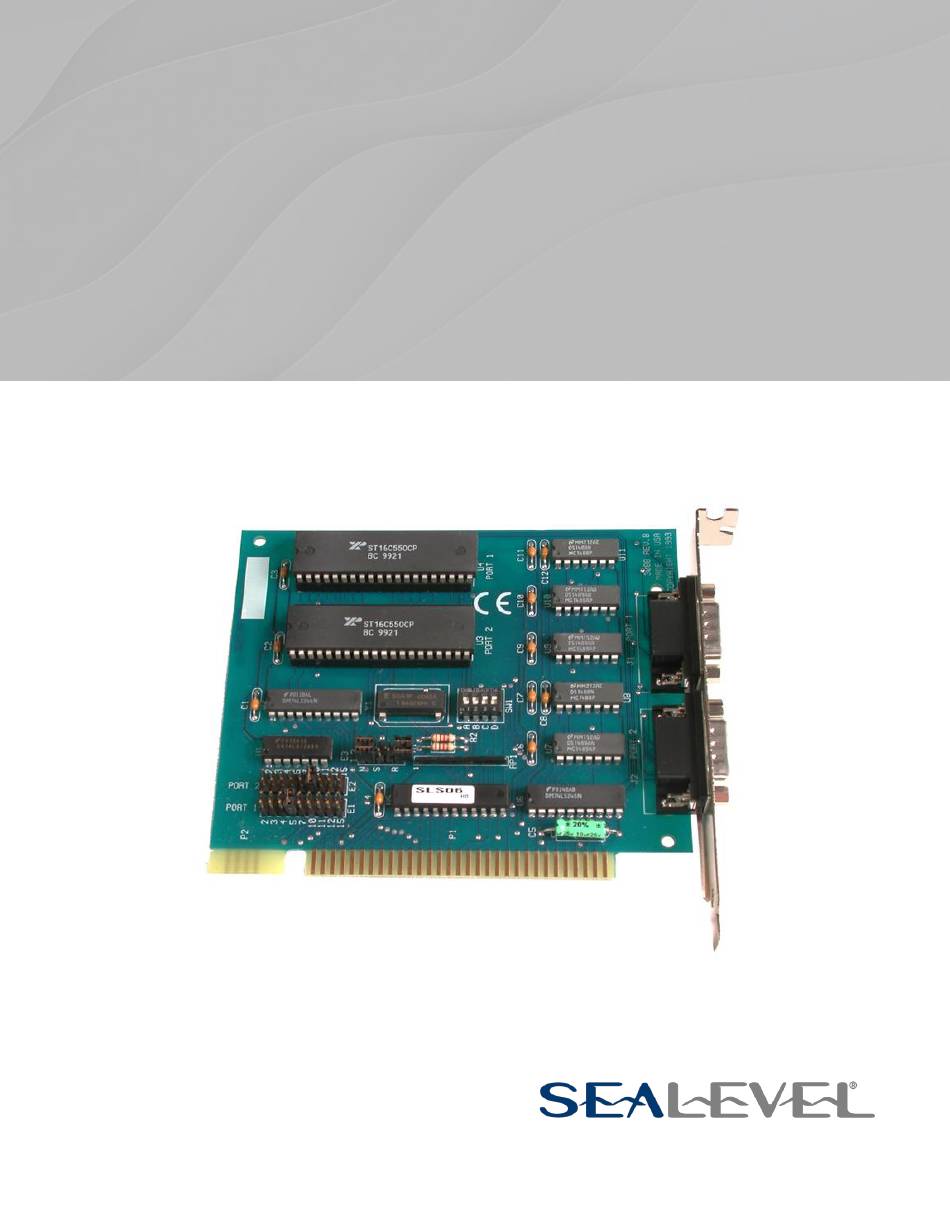

- Page 1 DUOCOM™ User Manual | 3088...
-
Page 2: Table Of Contents
Contents CONTENTS ................................2 INTRODUCTION ..............................3 BEFORE YOU GET STARTED ..........................4 CARD SETUP ................................ 6 SOFTWARE INSTALLATION ..........................9 HARDWARE INSTALLATION ..........................10 TECHNICAL DESCRIPTION ..........................11 SPECIFICATIONS ............................... 12 APPENDIX A – TROUBLESHOOTING........................ 13 APPENDIX B – HOW TO GET ASSISTANCE ..................... 14 APPENDIX C –... -
Page 3: Introduction
Introduction The Sealevel Systems DUOCOM: provides the PC with 2 Asynchronous serial ports providing a versatile interface for common RS-232 needs (i.e., modem, mouse, and plotters). -
Page 4: Before You Get Started
Before You Get Started What’s Included The DUOCOM is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. • DUOCOM Serial I/O Adapter Advisory Conventions Warning The highest level of importance used to stress a condition where damage could result to the product, or the user could suffer serious injury. - Page 5 Factory Default Settings The DUOCOM factory default settings are as follows: Port # Base Address Port 1 Port 2 To install the DUOCOM using factory default settings, refer to Installation. For your reference, record installed DUOCOM settings below: Port # Base Address...
-
Page 6: Card Setup
The following table shows the addressing options available with the standard PAL. If you do not see an address option that suits your needs, please contact Sealevel Systems Technical Support about a custom PAL option. Port1... - Page 7 Card Setup, Continuing IRQ Selection Headers E1 and E2 select the interrupt request for each serial port (E1 - Port 1, E2 - Port 2). If COM1: is selected, the corresponding jumper must be on the IRQ4 setting. If COM2: is selected, the corresponding jumper must be on IRQ3.
- Page 8 Card Setup, Continuing Interrupt Modes Header E3 selects the interrupt mode for each port. Each port must be set in the correct mode to insure proper installation. ‘N’ indicates the (N)ormal, single interrupt per port mode. ‘S’ Indicates the (S)hared interrupt mode, which allows more than one port to access a single IRQ.
-
Page 9: Software Installation
Do not install the adapter in the machine until the software has been fully installed. For Windows Users Begin by locating, selecting, and installing the correct software from the Sealevel software driver database. 1. Select the Part Number (3088) for your device from the listing. -
Page 10: Hardware Installation
Hardware Installation The DUOCOM: can be installed in any of the PC expansion slots, but to access the ‘AT’ or (E)ISA IRQs (10 - 15) it must be installed in one of the 16 bit slots. The DUOCOM: contains several jumper straps for each port which must be set for proper operation prior to installing the adapter into the computer. -
Page 11: Technical Description
Technical Description The DUOCOM: utilizes the 16550 UART. This chip features programmable baud rate, data format, interrupt control and a 16 byte input and output FIFO. Also available as an option is the 16C650 UART that provides a deeper FIFO (32 bytes) and enhanced clocking features. Features •... -
Page 12: Specifications
10 to 90% R.H. Non-Condensing Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Consumption... -
Page 13: Appendix A - Troubleshooting
No two adapters can occupy the same I/O address. 3. Make sure the Sealevel Systems adapter is using a unique IRQ The IRQ is typically selected via an on-board header block. Refer to the section on Card Setup for help in choosing an I/O address and IRQ. -
Page 14: Appendix B - How To Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.htm... -
Page 15: Appendix C - Electrical Interface
Appendix C – Electrical Interface RS-232 Quite possibly the most widely used communication standard is RS-232. This implementation has been defined and revised several times and is often referred to as RS-232 or EIA/TIA-232. The IBM PC computer defined the RS-232 port on a 9 pin D sub connector and subsequently the EIA/TIA approved this implementation as the EIA/TIA-574 standard. -
Page 16: Appendix D - Asynchronous Communications
Appendix D – Asynchronous Communications Serial data communications implies that individual bits of a character are transmitted consecutively to a receiver that assembles the bits back into a character. Data rate, error checking, handshaking, and character framing (start/stop bits) are pre-defined and must correspond at both the transmitting and receiving ends. -
Page 17: Appendix E - Silk-Screen
Appendix E – Silk-Screen 3.9" 5.0" 4.2"... -
Page 18: Appendix F - Compliance Notices
Appendix F – Compliance Notices Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. - Page 19 Caution Sealevel Systems, Inc. is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution of attachment of connecting cables and equipment other than those specified by Sealevel Systems. Such unauthorized modifications, substitutions, or attachments may void the user’s authority to operate the equipment.
-
Page 20: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
