SeaLevel ULTRA SIO-104 User Manual

Hide thumbs Also See for ULTRA SIO-104:
Table of Contents

Advertisement

Quick Links

Download this manual

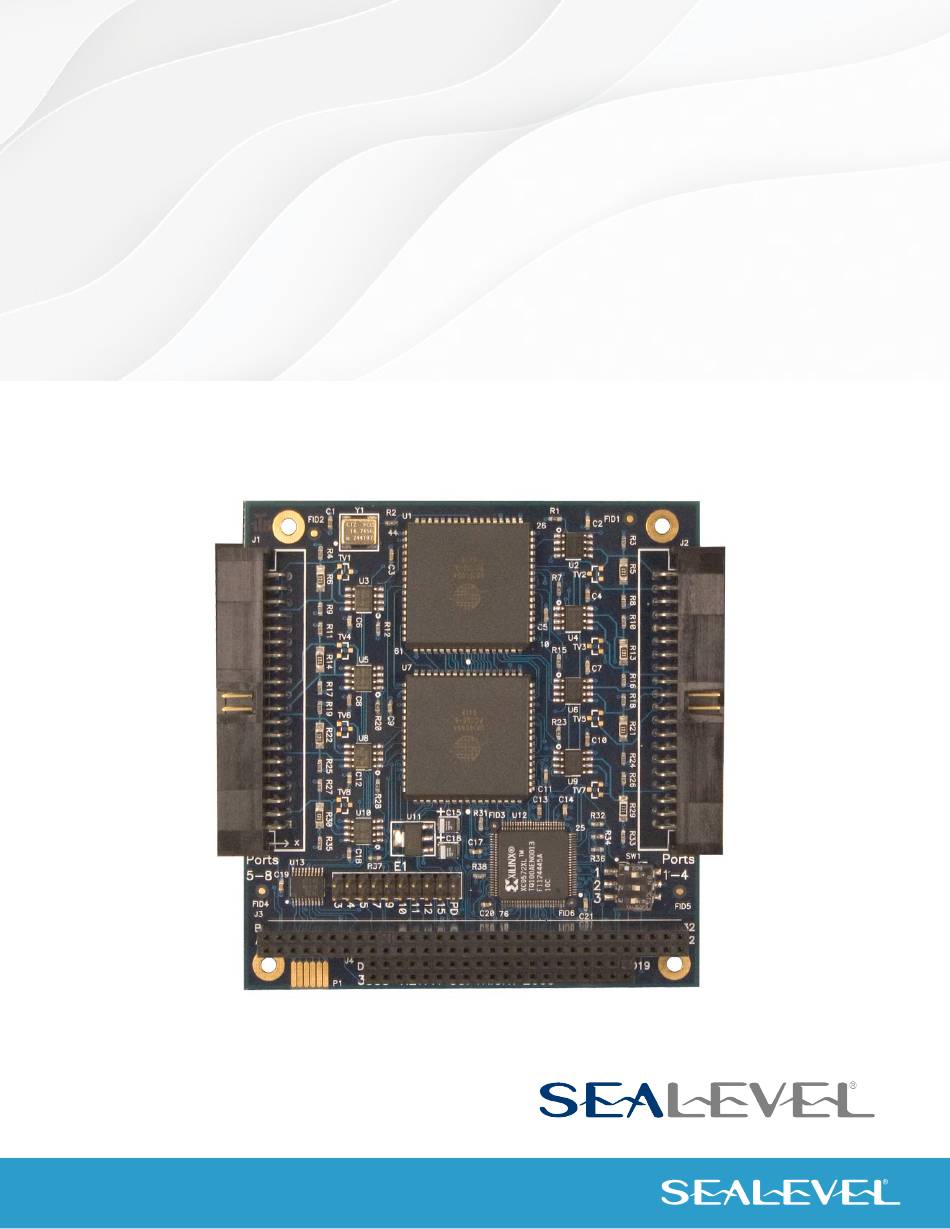

SIO-104+8.485
User Manual | 3588
1
© Sealevel Systems, Inc.
3588 Manual | SL9008
9/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRA SIO-104 and is the answer not in the manual?

Questions and answers

Related Manuals for SeaLevel ULTRA SIO-104

Summary of Contents for SeaLevel ULTRA SIO-104

  • Page 1 SIO-104+8.485 User Manual | 3588 © Sealevel Systems, Inc. 3588 Manual | SL9008 9/2022...

  • Page 2: Table Of Contents

    APPENDIX B – HOW TO GET ASSISTANCE ..................... 16 APPENDIX C – ELECTRICAL INTERFACE ......................17 APPENDIX D – ASYNCHRONOUS COMMUNICATIONS .................. 18 APPENDIX E – SILK SCREEN – 3588 PCB ....................... 19 WARRANTY ................................ 20 © Sealevel Systems, Inc. 3588 Manual | SL9008 9/2022...

  • Page 3: Introduction

    SIO-104+8.485 provides a variety of useful high-level function calls implemented as a Windows dynamic link library (DLL) and as a Linux kernel module and library. In addition to the API, SeaCOM includes sample code and utilities to simplify software development. Other Sealevel PC/104 Serial Products Model No. Part No.

  • Page 4: Before You Get Started

    Before You Get Started What’s Included The SIO-104+8.485 is shipped with the following items. If any of these items is missing or damaged, please contact Sealevel for replacement. • Item# 3588 – SIO-104+8.485 PC/104 Adapter Advisory Conventions Warning The highest level of importance used to stress a condition where damage could result to the product, or the user could suffer serious injury.
  • Page 5 Optional Items Depending upon your application, you are likely to find one or more of the following items useful with the SIO-104+8.485. All items can be purchased from our website (www.sealevel.com) or by calling our sales team at 864-843-4343. Cables Options •...

  • Page 6: Hardware Setup

    Be careful when selecting the base address as some selections conflict with existing PC ports. The following table shows the addressing options available. If different address options are required, please contact Sealevel Systems Technical Support about a custom option.
  • Page 7 (14.7456 MHz) should be entered into the ‘Advanced’ tab on the Device Manager applet. Typically this is done automatically when the Sealevel Software driver is loaded. When using Windows NT, the ‘Advanced Ports’ applet in the Control Panel should be launched and the oscillator value entered manually in the ‘Advanced’...
  • Page 8 120-ohm resistor is across each RS-485 input and a 510-ohm pull-down resistor combination that biases the receiver inputs. The board is not designed to have multiple adapters on the same RS-485 network. Contact Sealevel Technical Support if you have questions on how to remove this termination.

  • Page 9: Installation

    Only users running Windows 7 or newer should utilize these instructions for accessing and installing the appropriate driver via Sealevel’s website. If you are utilizing an operating system prior to Windows 7, please contact Sealevel by calling 864.843.4343 or emailing support@sealevel.com...
  • Page 10 3rd Party Software Support Third party software support for many HMI/MMI and other process control software is accessible through links on the Sealevel’s website. For the most up to date information on third party software support, please visit: https://www.sealevel.com/support/3rd-party-software-support/. For additional software support, including QNX, please call Sealevel Systems’ Technical Support, (864) 843- 4343.
  • Page 11 Retain any mounting hardware not used to allow for future expansion. 4. Remove the case cover (if applicable). 5. Connect the power cord and power up the machine. The SIO-104-+8.485 is now ready for use. © Sealevel Systems, Inc. 3588 Manual | SL9008 9/2022...
  • Page 12 DATA - DATA - DATA + DATA + DATA + DATA + DATA - DATA - DATA - DATA - DATA + DATA + All pins not listed are no connects. © Sealevel Systems, Inc. 3588 Manual | SL9008 9/2022...
  • Page 13 DATA - DATA - DATA + DATA + DATA + DATA + DATA - DATA - DATA - DATA - DATA + DATA + All pins not listed are no connects. © Sealevel Systems, Inc. 3588 Manual | SL9008 9/2022...

  • Page 14: Electrical Specifications

    3.55 inches (9.02 cm) Manufacturing All Sealevel Systems printed circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. © Sealevel Systems, Inc.

  • Page 15: Appendix A - Troubleshooting

    No two adapters can occupy the same I/O address. Try the Sealevel Systems adapter with a unique IRQ. While the Sealevel Systems adapter does allow the sharing of IRQs, many other adapters (i.e., SCSI adapters & on-board serial ports) do not.

  • Page 16: Appendix B - How To Get Assistance

    If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp.

  • Page 17: Appendix C - Electrical Interface

    (Tx+ to Rx+ and Tx- to Rx-). Four wire mode allows full duplex data transfers. RS-485 does not define a connector pin-out or a set of modem control signals. RS-485 does not define a physical connector. © Sealevel Systems, Inc. 3588 Manual | SL9008 9/2022...

  • Page 18: Appendix D - Asynchronous Communications

    The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e.,9600,N,8,1). © Sealevel Systems, Inc. 3588 Manual | SL9008 9/2022...

  • Page 19: Appendix E - Silk Screen - 3588 Pcb

    Appendix E – Silk Screen – 3588 PCB © Sealevel Systems, Inc. 3588 Manual | SL9008 9/2022...

  • Page 20: Warranty

    Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
