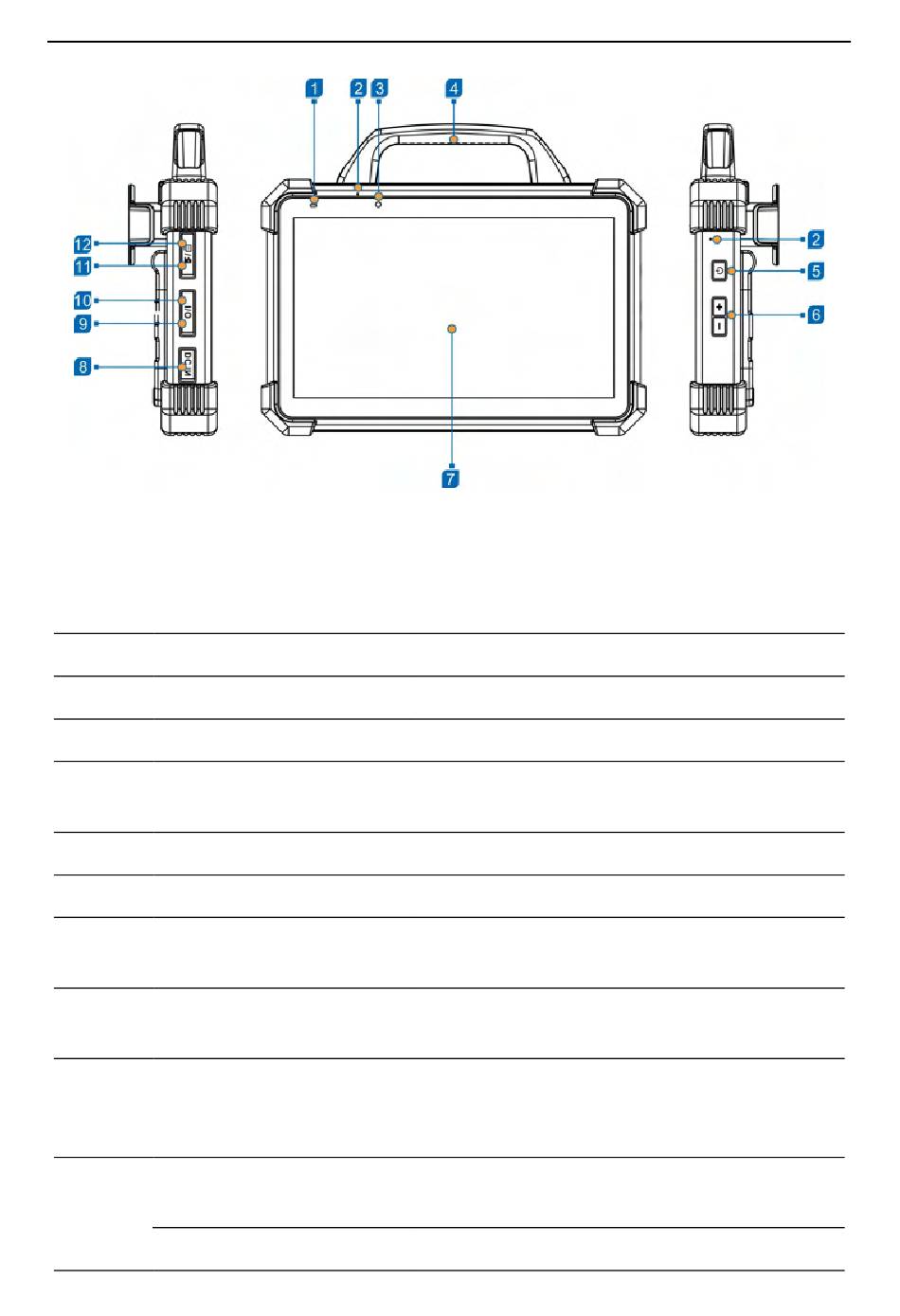

The following table formulates ports and indicators of display tablet:
Charging indicator
1
Microphone
2
Front Camera
3
4 Handgrip
Power/Screen Lock
5
Button
Volume Buttons
6
Display Screen
7
DC-IN Port
8
Type-C Data
9
Transmission Port
Type-A Port
10
Memory Card Slot
11
SIM Card Slot
X-431 Throttle III User Manual
It illuminates red while the tablet is charging.
Once charging is finished, it will illuminate
solid green.
To turn the tablet on/off with long press, or
lock the screen with short press.
To adjust the volume.
Connects the power adapter to charge the
tablet.
Connects it to the PC for data exchange.
Reserved for add-on modules (such as
Oscilloscope, Ignition, Sensor, Multimeter
etc), and other devices with similar port.
Stores the memory card for storage
expansion.
Disabled for this edition.
