BluDot Lake Rectangular Dining Table Assembly Notes

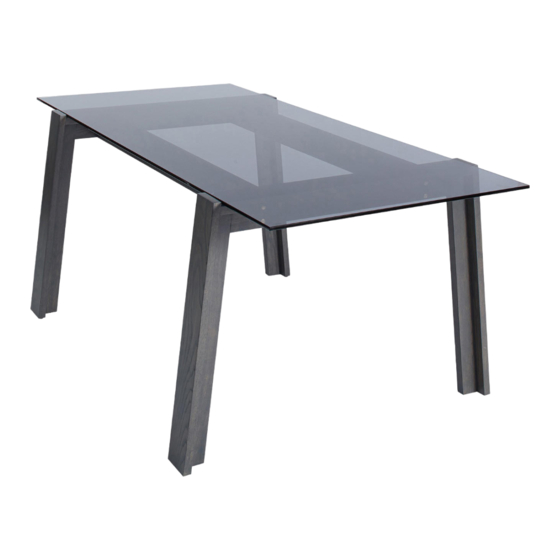

Lake Rectangular Dining Table

D E S I G N E D I N 2 0 1 3

A S S E M B LY N O T E S | R E V 0 1

D I V E I N .

Glass floats on a solid wood frame resulting in a seductive combination fit

for the boardroom, feats of molecular gastronomy, or Sunday night hotdish.

N E E D A H A N D ?

844.425.8368 for assistance.

Table of Contents

Need help?

Do you have a question about the Lake Rectangular Dining Table and is the answer not in the manual?

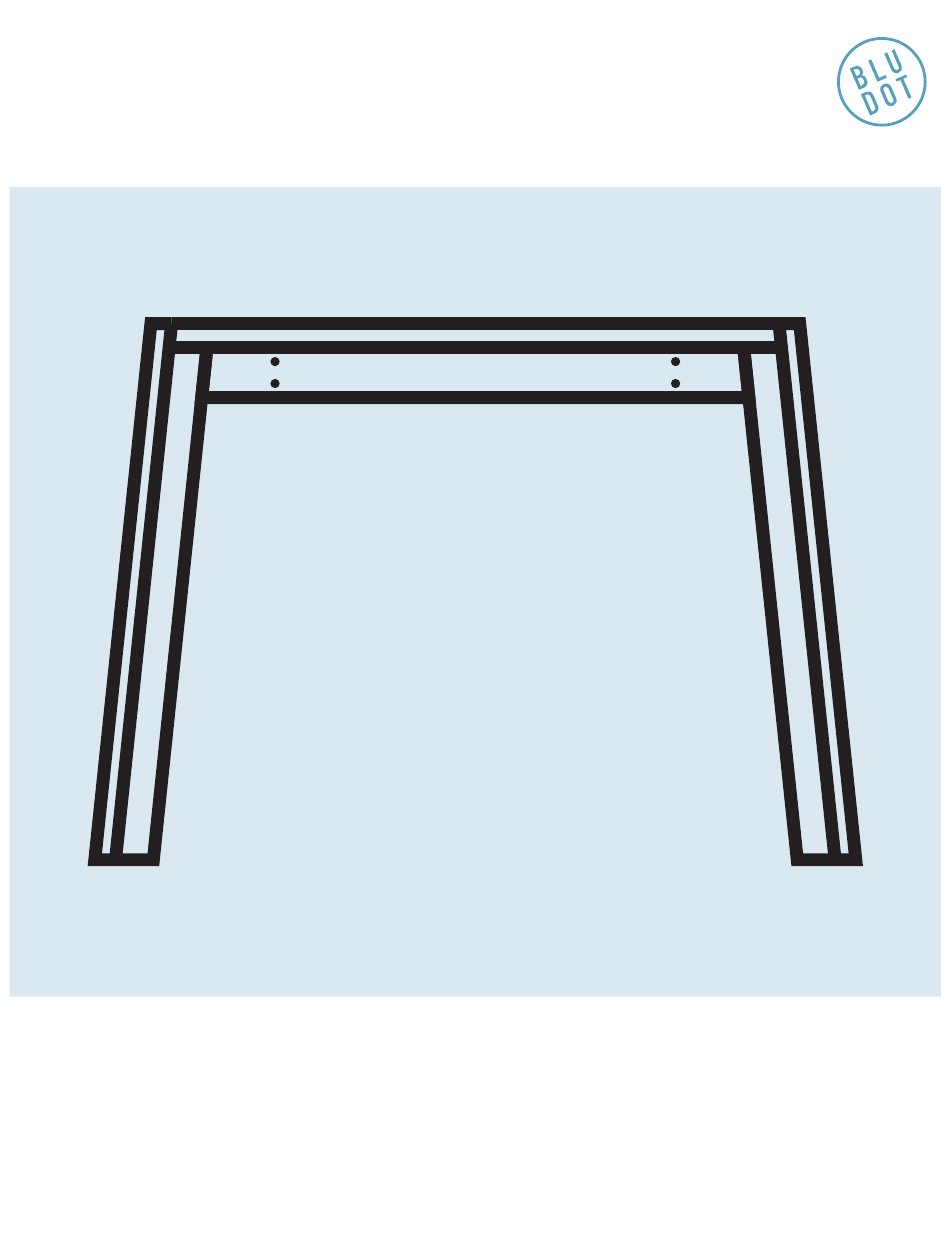

Page 1 Lake Rectangular Dining Table D E S I G N E D I N 2 0 1 3 A S S E M B LY N O T E S | R E V 0 1 D I V E I N .
Page 2 Parts & Hardware Pt. 5005 Pt. 3001 Pt. 3007 Pt. 8023 Pt. 8022 Pt. 1062 Pt. 9015 Pt. 4021 Stretcher Rail* Leg Frame Glass Top *The stretcher rails have varying quantities of bumper locations depending on table length. 2 | 8 4 4 . 4 2 5 . 8 3 6 8 L A K E R E C T A N G U L A R D I N I N G T A B L E...
Page 3 Step 01 A S S E M B L E L E G F R A M E S A N D S T R E T C H E R R A I L S . Assemble components upside down as shown. Insert cylindrical dowel nuts into stretcher rails with the slotted end facing outwards and attach to leg frames using hardware as shown.
Page 4 Step 02 I N S TA L L G L A S S T O P. Caution: Two or more people are required to safely complete the following steps. Carefully flip the frame over to the correct orientation. Place bumpers in the recessed slots as shown.
