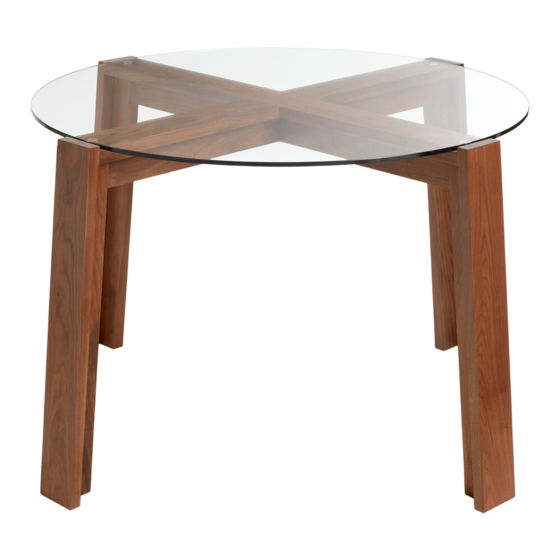

BluDot LAKE ROUND DINING TABLE Quick Start Manual

ROUND
DINING
TABLE
PARTS
x4
& HARDWARE
#1067
x1
Glass Top
WWW.BLUDOT.COM
LAKE
ASSEMBLY NOTES
x3
x4
#1068 x4
#3001
#8028
x4
x1 #4011
x2
Major Leg Minor Leg
GLASS
First, remove dirt or
debris from surface of glass
with a slightly damp, soft cloth.
To remove fingerprints or streaks,
use a quality glass cleaner.
Don't forget about the
underside of the glass,
for the perfect clean.
Clean with a slightly
damp, soft cloth. To remove
dirt and fingerprints, use a
quality cleaner formulated
for wood furniture. Wipe
completely dry with a soft
cloth in the direction of
WOOD
the wood grain.
FRAME
x4
#3002
x2
#5020
x1
#5022
x1
x1
#9015
Bracket
1
ASSEMBLE
UPSIDE DOWN
x4 x4 x4
8028 3002 3001
#5022
#5020
LAKE ROUND DINING TABLE rev02 - PAGE 1 OF 2
x1
5022
x1
x4 x2
9015
1067 5020
Insert wooden
dowels first, #5022
is shared and one
#5020 for each
Minor Leg
Connect each Minor
Leg to the Major
Leg Assembly using:
#1067 allen bolt,
#3001 lock washer,
#3002 washer,
#8028 cresent moon
standoff.
