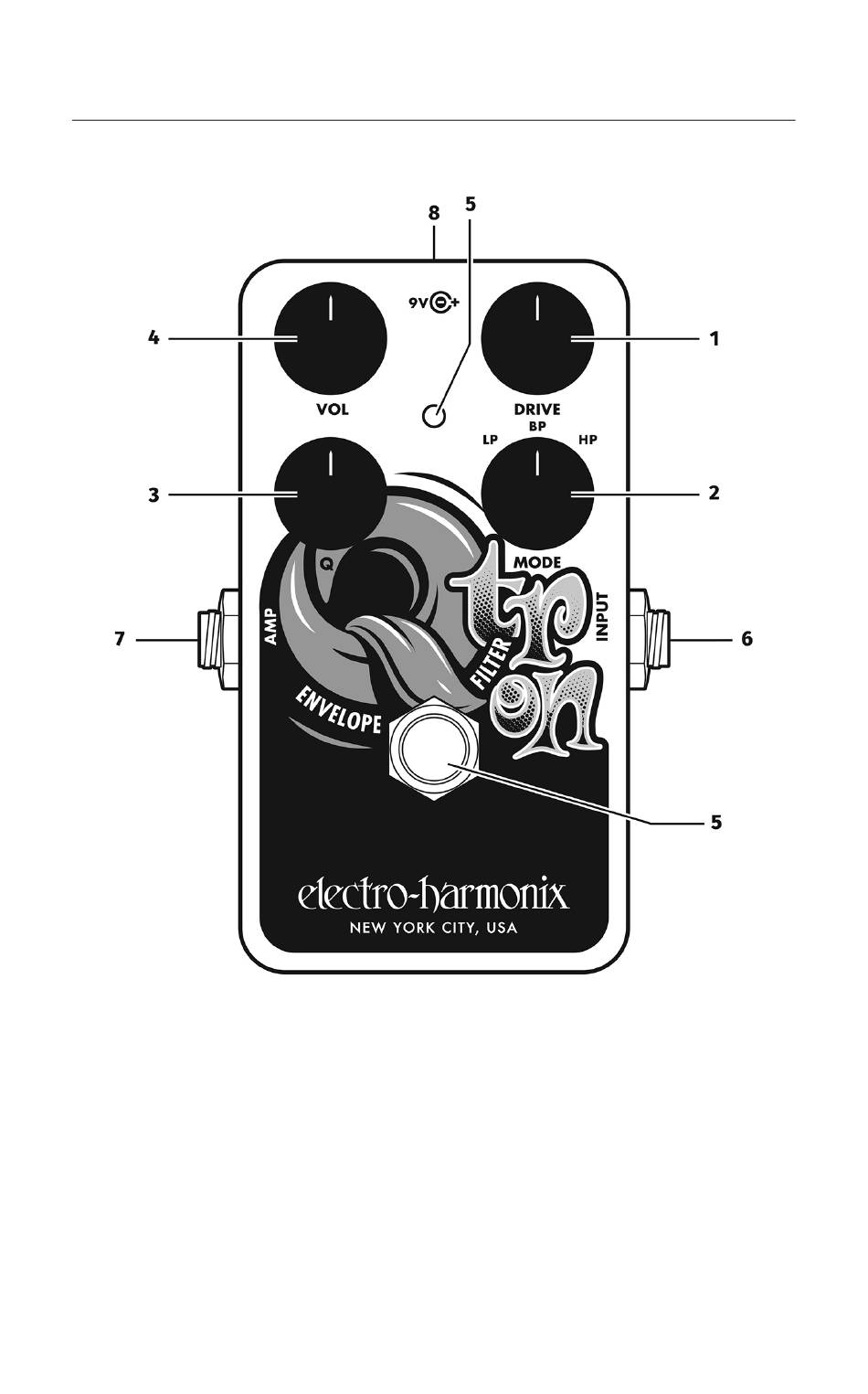

Controls and Connections

1. DRIVE Knob Sets the envelope sensitivity gain, which in turn controls
how wide the filter sweeps. The higher the DRIVE setting, the more the
filter reacts to your playing and the higher in frequency the filter will jump
when you play a note. Turn DRIVE clockwise for a wider filter sweep or
counterclockwise to reduce the sweep range. If you turn DRIVE up too far,
the filter sweep will max out at its highest frequency (approximately 3.5kHz)
and remain at the highest frequency until the note has fully decayed.
Louder instruments will typically use lower DRIVE settings while quieter
instruments require higher settings. When learning the Nano Q-Tron,
start with DRIVE at 12 o'clock.
