Caution

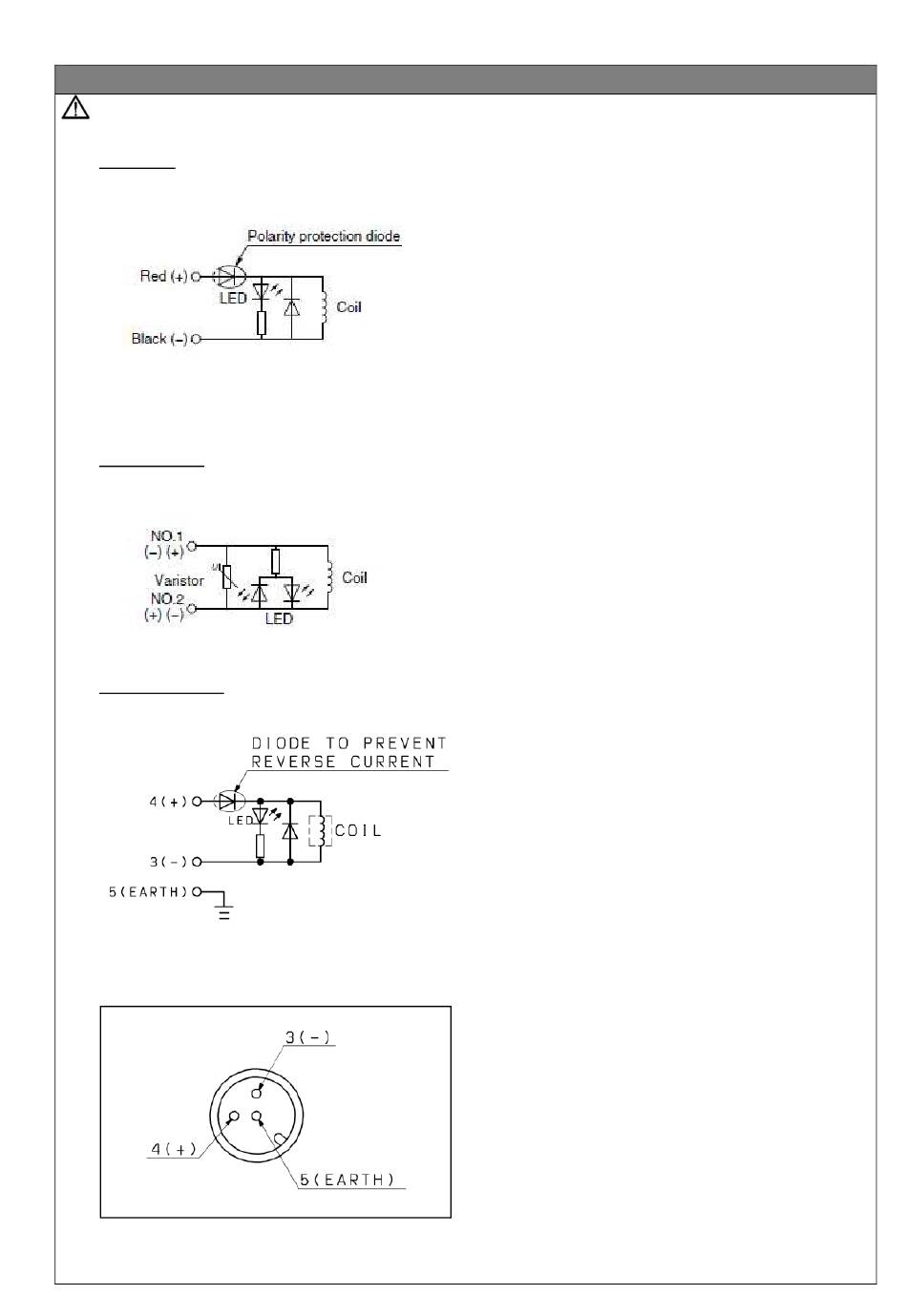

<For DC>
Grommet
With light/surge voltage suppressor (GZ)
DIN Terminal
With light/surge voltage suppressor (DZ, YZ)
M12 Connector
With light/surge voltage suppressor (WOZ)
Solenoid valve side pin wiring diagram
Surge Voltage Supperssor
・Connect correctly the lead wires to +
(positive) and – (negative) indications on the
connector.
・Solenoids, whose lead wires have been pre-
wired: positive side red and negative side black.
・DIN terminal has no polarity
・Connect correctly the lead wires to + (positive)
and – (negative) indications on the connector.
-11-
