5．Construction / Parts list

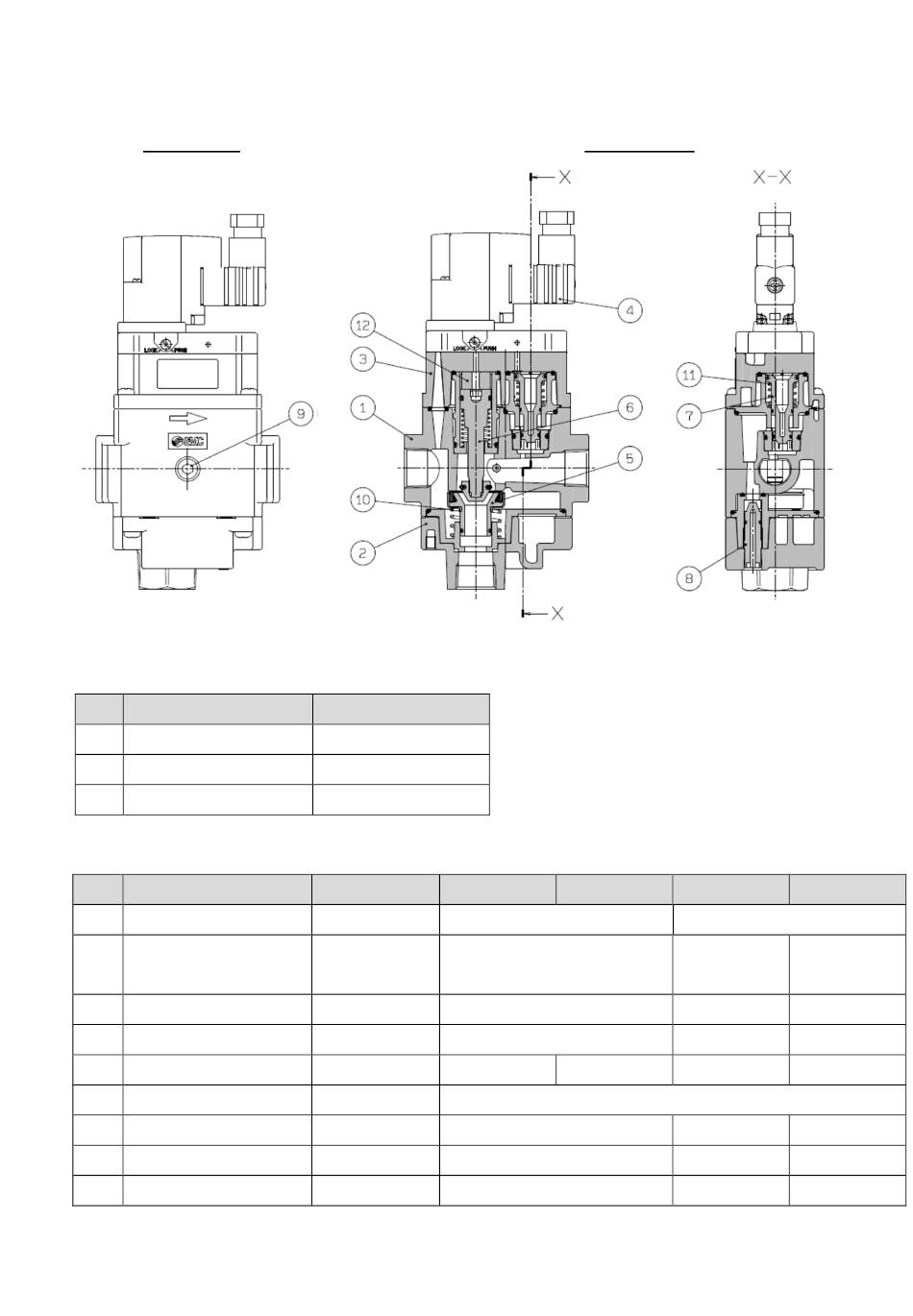

Appearance
Component Parts
No. Description
1 Body
2 Bottom cover
3 Top cover
Replacement Parts
No. Description
4 Pilot valve assembly
5 Valve assembly
6 Control valve assembly
7 Piston assembly
8 Needle assembly
9 Plug assembly
10 Valve spring
11 Piston spring
12 Damper
*1 See page 20 and 21 for How to Order of the pilot valve.
*2 □ of plug assembly will indicate the connecting screw type. No indication is necessary for R; however,
indicate N for NPT.
Material
Aluminum die-cast
Aluminum die-cast
Aluminum die-cast
Material
－
*1)
Rubber material:
HNBR
－
POM, NBR
POM, NBR
*2
POM, NBR
Stainless steel
Stainless steel
Urethane
Constructions
AV2000-A AV3000-A
See below.
AV22P-060AS
AV22P-110AS
AV22P-120AS
AV22P-150AS AV22P-150AS AV22P-150AS AV22P-150AS
AR22P-320AS-□01
AV22P-170
AV22P-190
AV22P-230
