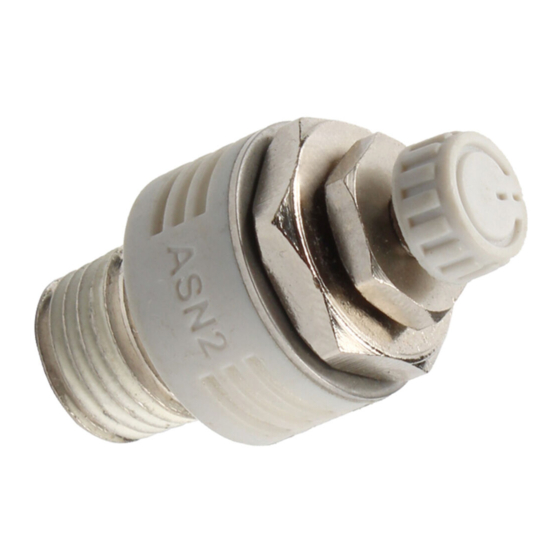

- Page 1 Doc. no. AS＊-OMP0006-B PRODUCT NAME METERING VALVE WITH SILENCER MODEL / Series / Product Number ASN2 Series...
-
Page 2: Table Of Contents
Contents 2 ～ 3 1．Safety Instructions 4 ～ 6 2．Specific Product Precautions 3．Application 4．Specifications 5．Troubleshooting 6．Construction... -
Page 3: 1．Safety Instructions 2
Metering Valve with Silencer Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of "Caution", "Warning" and "Danger". They are all important notes for safety and must be followed in addition to International Standards (ISO/ IEC) and other safety regulations. - Page 4 Metering Valve with Silencer Safety Instructions Caution The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
-
Page 5: 2．Specific Product Precautions 4
Mounting 2. Specific Product Precautions Warning Design/ Selection (1) Operation Manual Warning Install the product and operate it only after reading (1) Confirm the specifications. the operation manual carefully and understanding its Products represented in this catalog are designed contents. Also, keep the manual where is can be only for use in compressed air systems. - Page 6 Piping Mounting Caution Caution (2) Winding of sealant tape (1) First, tighten the fitting by hand, then use a When screwing piping or fittings into ports, ensure that chips from the pipe threads or sealing material suitable wrench to tighten the hexagonal do not enter the piping.
- Page 7 Operating environment Warning (1) Do not use in an atmosphere containing corrosive gases, chemicals, sea water, water steam, or where there is direct contact with any of these. Refer to each construction drawing for information on the materials of flow control equipment. (2) Do not expose the product to direct sunlight for an extended period of time.
-
Page 8: 3．Application
3. Application This product is designed to control the speed of a pneumatic actuator. 4. Specifications WORKING FLUID WORKING PRESS.RANGE 0～1MPa PROOF PRESS 1.5MPa AMBIENI TEMP. AND WORKING FLUID TEMP. -5～60℃(NO FREEZING) 5． Troubleshooting Trouble Possible cause Countermeasures Fully open the needle and apply air blow The speed (flow from the screw. - Page 9 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2021 SMC Corporation All Righ...
