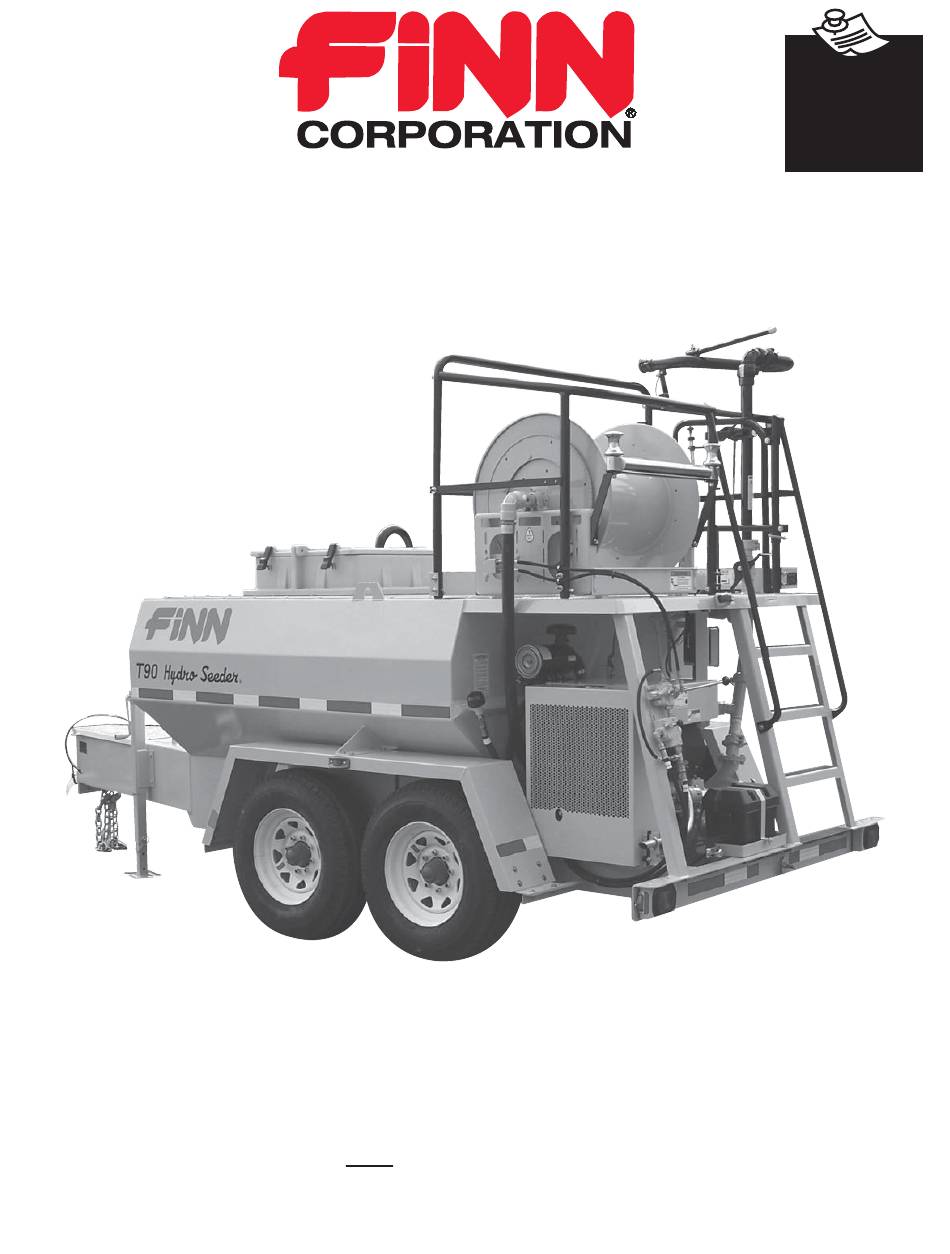

T90-II HydroSeeder
Parts and Operator's Manual
LBT90-MO
Sales: 1-800-543-7166
Model MOA
Serial No. _____________
Activate
Activate
Your Warranty
Your Warranty
By Registering
By Registering
TODAY!!!
TODAY!!!
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HydroSeeder T90-II and is the answer not in the manual?

Questions and answers

Related Manuals for Finn HydroSeeder T90-II

Summary of Contents for Finn HydroSeeder T90-II

  • Page 1 Activate Activate Your Warranty Your Warranty By Registering By Registering TODAY!!! TODAY!!! 9281 LeSaint Drive • Fairfield, Ohio 45014 Phone (513) 874-2818 • Fax (513) 874-2914 Sales: 1-800-543-7166 T90-II HydroSeeder ® Parts and Operator’s Manual Model MOA Serial No. _____________ LBT90-MO...
  • Page 2 NOTES...
  • Page 3 IF FINN CORPORATION DOES NOT HAVE YOUR COMPLETED REGISTRATION FORM ON FILE, YOUR WARRANTY CLAIM WILL BE DENIED. Once your FINN equipment has been registered, your FINN Limited Warranty will be activated per the warranty statement on the next page.
  • Page 4 Follow the instruction sheet, on property damage sustained by a person claiming to be a third party how to use your Finn Oil Analysis Kit that comes with the Kit. Failure beneficiary of a surviving warranty under the law of any jurisdiction.

  • Page 5: Table Of Contents

    Definition of Hydroseeding ........6 The FINN HydroSeeder® and How It Works ..... . . 6 Mounting The HydroSeeder®...
  • Page 6 INDEX CONTINUED Troubleshooting Your HydroSeeder® ......30–33 Leaks ..........32 Machine Jumps During Operation .

  • Page 7: Safety First

    SAFETY FIRST With any piece of equipment, new or used, the most important part of its operation is SAFETY! FINN Corporation encourages you and your employees to familiarize yourselves with your new equipment and stresses safe operation. The first five pages of this manual are a summary of the main safety aspects associated with this unit.

  • Page 8: Hydroseeder® Safety Summary Section

    ® HYDROSEEDER SAFETY SUMMARY SECTION It is important that operators of this machine are familiar with all safety aspects covered in this section and have read the entire Operator’s Manual before operating the machine. Always keep a copy of this manual with the machine.
  • Page 9 6. Operator(s) equipment 3. Recirculation valve must be open and material flow- should never ride on the ing back into the tank when using the remote valve. A machine at speeds of greater closed or plugged recirculation line will cause extreme than 5 mph (8 km/h).
  • Page 10 29 CFR 1910.146, or local legal requirement, including the following: 9. It is recommended that only authorized, genuine FINN replacement parts be used on the machine. Drain, flush, and ventilate tank interior.
  • Page 11 CURRENT SET OF SAFETY DECALS...

  • Page 12: Definition Of Hydroseeding

    MANUAL FOR THEFINN T90 SERIES II ® HYDROSEEDER This manual gives you step-by-step instructions for the operation and maintenance of the FINN T90 ® HydroSeeder . For best results and to ensure longer life of the equipment, please follow the instruc- tions carefully.

  • Page 13: Attachments

    34 in. (86.4 cm) wide rails. NOTICE Mounting the HydroSeeder® to the truck must allow for tire clearance and frame twist. Place hard wood spacers along the length of truck rails or use FINN spring mounting kit (part number 011562) or equivalent. ®...

  • Page 14: Pre-Start Check

    ® 3. Hose Reel: The live hose reel will mount either on the HydroSeeder or on the truck frame. The 200 ft (61 m) capacity hydraulic rewind reel will wind up and store empty hose. ® 4. Fill pumps can either be carried on the truck or mounted on the HydroSeeder 5.
  • Page 15 (See Figure 2): 1. Turn thumb nut clockwise until stem rises to maximum height. 2. Remove cap and fill cap with sodium- (water soluble) base grease (FINN part number 000698). DO NOT use lithium- base (chassis lube) grease.

  • Page 16: Two Valve Operation

    TWO VALVE OPERATION The T90 II HydroSeeder ® is equipped with two independently operated ball valves to control slurry flow. One is located in the recirculation line below the platform, and the other is located in the dis- charge line above the platform. The recirculation valve is open when the handle is in line with the valve ports and is closed when the handle is at a right angle to the valve ports.
  • Page 17 2. EXTENSION HOSE THROUGH BOOM DANGER Do not use remote valve in this application. Failure to comply will result in death or serious injury. Flow is through boom with no flow through a closed recirculation valve (Figure 4). Extension hose is connected to boom and flow is controlled by engaging (turning on) and disengaging (turning off) slurry pump clutch, or by controlling the speed of the engine.

  • Page 18: Starting Procedure

    The tables on page 13 show loading versus coverage rates for the FINN T90 II. Table A shows rates for one-step applications. The coverage area is determined by the fiber mulch capacity of the ®...
  • Page 19 TABLE A USING SEED, FERTILIZER, AND MULCH Unit Amount of Material in Tank in pounds (kilograms) Coverage Area Seed Fertilizer Mulch sq ft (sq m) T90 II 92 (42) 107 (48) 400 (181) 11,600 (1,075) Table is based on 1,500 lb (680 kg) of mulch, 400 lb (181 kg) of fertilizer, and 345 lb (156 kg) of seed at 8 lb (3.6 kg) / 1000 sq ft per acre.

  • Page 20: Tank Capacity Chart

    TANK CAPACITY CHART T90 II Gallons in. (cm) from in. (cm) from (Liters) bottom 835 GALLONS 800 (3,028) 10 (25.4) 42 (106.7) 750 (2,839) 12.25 (31.1) 39.75 (101.0) 700 (2,650) 14.25 (36.2) 37.75 (95.9) 650 (2,460) 16.25 (41.3) 35.75 (90.8) 600 (2,271) 18.25 (46.4) 33.75 (85.7)
  • Page 21 3. Piping System Cleanout Procedure (Purging Line): A. Remove discharge nozzle and gasket from discharge boom. B. Aim discharge boom assembly into an open area away from any persons, obstructions, or high voltage power lines. C. Open discharge valve and close recirculation valve. D.

  • Page 22: Loading And Mixing Bfm, Fgm, Smm And Other Viscous Slurries

    LOADING AND MIXING BFM, FGM, SMM AND OTHER HIGHLY VISCOUS SLURRIES 1. With clutch disengaged (turned off) and agitator control in the NEUTRAL position, start engine and allow it to warm up. See STARTING PROCEDURE page 12. 2. Start filling unit with water from one of the water sources as listed below. When water reaches the top of agitator shaft, move agitator control to full REVERSE position.
  • Page 23 NOTE: BFM, FGM, and other viscous slurries will entrain air if proper mix- ing procedures are not followed. Ensure that the agitator blades are completely submerged prior to the addition of this material. This will prevent air from entering the slurry. Follow manufacturers suggested rates of materials as indicated on the packaging.

  • Page 24: Prior To Application

    PRIOR TO APPLICATION 1. Operator should familiarize themselves the with area to be seeded and develop a plan to ensure uniform application. 2. Develop a plan for communication between operator and driver of the carrying or towing vehi- cle to signal for start, stop, turn, etc. through the use of the signal horn. 3.

  • Page 25: Ii. Discharge Through The Boom

    CAUTION Do NOT partially close the valve to control the distance. Failure to comply could result in minor or moderate personal injury. Failure to comply could also result in product or property damage. 5. While moving along area to be seeded, the operator should move the nozzle back and forth in a slow, even arc.

  • Page 26: Reloading Procedure

    In using large concentrations of granular solids through the HydroSeeder®, it is advisable to keep the slurry moving through the pump at all times. This keeps the solids from settling in the lines and creating a stoppage. This unit was designed for the application of agricultural-grade lime or FINN-HLL Liquid Lime.
  • Page 27 PROCEDURE 1. With clutch disengaged (turned off) and agitator control in the NEUTRAL position, start engine and allow it to warm up. See STARTING PROCEDURE on page 12. 2. Start filling unit with water. When water reaches to top of the agitator shaft, move agitator con- trol to approximately 1/2 speed REVERSE.

  • Page 28: Cleaning And Maintenance

    CLEANING AND MAINTENANCE AFTER FIRST 4 TO 8 HOURS OF OPERATION 1. Check and adjust clutch. See CLUTCH MAINTENANCE SECTION on page 28. 2. Torque wheel lugs. Torque again after 7 days (Trailer Option only). DAILY ®: 1. Cleaning the HydroSeeder A.

  • Page 29: Weekly Or Every 40 Hours Of Operation

    WEEKLY OR EVERY 40 HOURS OF OPERATING TIME 1. Clean air cleaner by following the instructions in the engine operator’s manual. ® 2. Lubricate all points on HydroSeeder as outlined in DAILY CLEANING AND MAINTENANCE on page 22. Additionally, lubricate the four grease fittings on clutch/pump. 3.

  • Page 30: Hydraulic System

    AND FLUIDS CHART, or if the oil becomes milky or gives off a burnt odor. The hydraulic oil filter must be replaced on schedule with a 25 micron absolute filter (FINN part number 021618). The hydraulic system relief is factory-set at 2,100 psi (12,479 kPa).
  • Page 31 CLUMP ASSEMBLY (Reference Figures 8 and 9) Ref. No. Part Number Description No. Required 005146 Pump Suction Cover X0824SS Suction Cover Bolt Y08SS Suction Cover Nut 006437 O-ring 005543 Pump Impeller 006443 Mechanical Seal 005144 Pump Casing X0824SS Pump Suction Cover Bolt W08FSS Pump Suction Cover Washer 006444...

  • Page 32: Pump Maintenance

    PUMP MAINTENANCE SECTION CAUTION Pump maintenance should be done only while engine is not running and battery cables are disconnected. Failure to comply could result in minor or moderate personal injury. Failure to comply could also result in product or property damage. A.
  • Page 33 4. Back off eight bolts (5B) 1-1/2 turn. 5. Tighten four bolts (1B) 1-1/2 turn and tighten four nuts (1N) to 15 lb-ft (20 N•m). 6. Tighten eight bolts (5B) to 15 lb-ft (20 N•m). Clearance gap should be about 0.040 in. (1.00 mm).

  • Page 34: Clutch Maintenance

    CLUTCH MAINTENANCE SECTION CAUTION Clutch maintenance should be done only while engine is not running and battery cables are disconnected. Failure to comply could result in minor or moderate personal injury. Failure to comply could also result in product or property damage. A.
  • Page 35 3. Place clutch control in the ENGAGE position to hold clutch facings in place when removing clutch from engine. Unbolt the rod that connects the clutch operating lever to operator’s plat- form clutch handle 4. Attach a suitable lifting device to clutch/pump drive housing (10). Remove bolts that secure the drive housing to the engine flywheel housing and the two bolts holding the drive housing to the ®...
  • Page 36 TROUBLESHOOTING YOUR HYDROSEEDER ® ® Because of the tremendous work load usually placed upon the HydroSeeder , minor malfunctions will occur from time to time. If these are not remedied immediately, they could lead to poor performance and damage to the equipment. This section describes symptoms, possible causes, and the corrective actions to take.
  • Page 37 B. If the recirculation system is not working: 1. Disengage (turn off) clutch and stop engine. 2. Remove clamp attaching recirculation valve. 3. Slide rubber seal back and remove valve assembly. 4. Check valve assembly, recirculation nozzle in discharge pipe, and recirculation pipe going into tank.
  • Page 38 ® TROUBLESHOOTING YOUR HYDROSEEDER Problem Probable Causes Suggested Solutions LEAKS: Tank Bearing Lack of lubrication – seal worn Replace seal and follow lube schedule. Bolts not tightened Tighten uniformly to 25 lb–ft (34 N•m). Pressure Pipe Clamps Rubber seal cracked, pinched, or Replace, always grease seal torn.
  • Page 39 ® TROUBLESHOOTING YOUR HYDROSEEDER Problem Probable Causes Suggested Solutions VALVE: Valve stuck Frozen Thaw out ice and lubricate; leave in discharge position during stor- age. Constant plugging during operation Foreign material in slurry Drain and clean out tank; check storage for foreign materials. Constant plugging during loading Loading HydroSeeder®...
  • Page 40 VIEW SEE VIEW (Showing Hose Reel) Figure 7 – Lubrication and Adjustment Points...
  • Page 41 LUBRICATION AND FLUIDS CHART (Reference Figure 7) Ref. No. Location Lubricant Frequency Number Check Grease Level in Automatic Pressure Lubricator Daily Check Clutch Lever Bearings Daily Grease Agitator Shaft Bearings Daily Grease Discharge Swivels Daily Check Engine Oil Level Daily Change Engine Oil and Filter See Engine Manual Grease Pump Bearings...
  • Page 42 T90 SKID-MOUNT HYDROSEEDER® TECHNICAL SPECIFICATIONS 6′8″ (203 cm) 11′0″ (355 cm) 8′5″ (257 cm) T90 TRAILER HYDROSEEDER® TECHNICAL SPECIFICATIONS 7′1″ (216 cm) 16′2″ (493 cm) 9′0″ (274 cm)
  • Page 43 FINN T90 HYDROSEEDER® TECHNICAL SPECIFICATIONS POWER ............Diesel Kubota V1505, 33.5 hp (25 kw), 4 cylinder water-cooled ENGINE SAFETY SYSTEM ......Low oil pressure, high temperature shutoff TANK SIZE ............ 940 gal (3,558 L) liquid capacity 800 gal (3,028 L) working capacity FUEL TANK CAPACITY ........
  • Page 45 NOTES...
  • Page 46 T90-II HydroSeeder ® Parts Manual Model MO...
  • Page 48 T90 TRAILER PICTORIAL REFERENCE OPERATOR’S PLATFORM HOSE REEL Operator’s Platform ......Pages 44-45 Discharge Boom Assembly ....Pages 56-57 Hose Reel Assembly......Pages 54-55 Control Box Wiring......Pages 58-59 Nozzles, Remote Valve & Tool Kit ..Page 67 TRAILER Trailer ..........Pages 40-41 Wheel &...
  • Page 49 T90 SKID PICTORIAL REFERENCE OPERATOR’S PLATFORM HOSE REEL Operator’s Platform ......Pages 44-45 Discharge Boom Assembly ....Pages 56-57 Hose Reel Assembly......Pages 54-55 Control Box Wiring......Pages 58-59 Nozzles, Remote Valve & Tool Kit ..Page 67 SKID PIPING, CLUMP & ENGINE Skid...........

  • Page 50: Wheel & Hub Assembly

    VIEW C VIEW B VIEWS E & F (Page 41) VIEW B VIEW D (Page 41) VIEW A WHEEL & HUB ASSEMBLY (See Pages 46-47) VIEW A (See Page 41) WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 51 VIEW E VIEW F VIEW D 39, 40 & 41 TRAILER Ref. No. Part Number Description No. Required 080701 Jack Weldment w/ Bracket 080043 Lunette Eye 2-1/2" Pintle Hitch OPTIONAL 005134 2-5/16" Ball Coupler 005135 2-5/16" Ball F90-0020 Tank Top F120-0006 Hatch Safety Rail 012834...
  • Page 52 OPERATOR’S PLATFORM (See Pages 44-45) VIEW A (See Page 43) WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 53 VIEW A SKID Ref. No. Part Number Description No. Required 012833 Poly Hatch Assembly 012834 Bag Cutter – Stainless Steel F90-0021 Tank Top F120-0006 Hatch Safety Rail 005600 Right Rear Rail 005613 Square Tubing Plug 005596 Slide Gate 005652 Front Cross Rail 052136-07 Rubber Mount Pad 005598...
  • Page 54 VIEW B VIEW A VIEW C WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 55 VIEW D VIEW E OPERATOR'S PLATFORM Ref. No. Part Number Description No. Required 005538 Right Rear Rail Weldment 002258 Clamp Handle Weldment 012487-05 Boom Clamping Strap 005161 Rubber Strap w/ "S" Hooks 005533 Gate Weldment 005532-03 Spacer 012052 Gate Spring 005532-05 Hinge Mounting Strap 005462-03...
  • Page 56 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 57 WHEEL AND HUB ASSEMBLY Ref. No. Part Number Description No. Required 005805 Axle Assembly (Includes Hub, Drum, and Brakes) 075625-GAL Duro 12Ply Tire 9.50-16.5, LR-F Hi-way 005057 Wheel, 16.5 x 6.75 WL0190016 9/16 Lug Nut WL8-219-4 Hub and Drum Assembly 005805-18 Dust Cover 1 per*...
  • Page 58 BEARING ASSEMBLY NOTE: BEARING ASSEMBLY (ITEM #1) INCLUDES ITEMS #2 – #11. AGITATOR SHAFT THROUGH BACKSIDE NOTE: TO TIGHTEN, TURN NUT NOT BOLT. TORQUE TO OUTSIDE 25 lb-ft (34 N m). OF TANK WALL DO NOT OVER TORQUE. AGITATOR SHAFT ASSEMBLY NOTE: AGITATOR SHAFT ASSEMBLY (ITEM #12) INCLUDES ITEMS #13 THRU #23.

  • Page 59: Agitator Assembly

    TOE GUARD DETAIL AGITATOR ASSEMBLY Ref. No. Part Number Description No. Required 007420 Bearing and Seal Assembly (Includes Items 2–11) 0Y08SS Agitator Nut 4 per 012605 Bevel Sealing Washer 4 per 007211-02 Flangette w/ Lube Coupling 1 per 007705 Grease Fitting 1 per 003022 Bearing...

  • Page 60: Hydraulic Agitator Drive

    HYDRAULIC AGITATOR DRIVE *NOTE: See Page 52 For Hydraulic System Schematic. WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 61 HYDRAULIC AGITATOR DRIVE Ref. No. Part Number Description No. Required 070660 Hydraulic Motor 023295-006 Seal Kit for 070660 070660K 1/4" x 5/16" x 1-1/2" Key 005463 Torque Arrestor Plate 004630 Torque Arrestor Rubber Tubing X0824 1/2-13 UNC x 1-1/2" Lg. Hex Hd. Cap Screw Y08L 1/2-13 UNC Locknut 023156...
  • Page 62 LH BRAKE ASSY TRAILER PLUG TAIL LIGHTS (See Pages 40-41) (BROWN) NOT USED RIGHT LEFT WHITE BROWN TURN TURN (GREEN) (YELLOW) BLACK GROUND ELECTRIC BRAKES (WHITE) (BLACK) BROWN BROWN WHITE STARTER BLACK WHITE BROWN RH BRAKE ASSY (See Pages 46-47) WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...

  • Page 63: Trailer Wiring

    TRAILER WIRING Ref. No. Part Number Description. No. Required 075592 7-Blade Trailer Plug 023424 Breakaway Switch 190029 Chain – 2 Tenso Weldless 2 ft 005016 “S” Hook 005017 Snap Hook FW71090 Amber Corner Marker Light 005434 Tail Light Assembly 005434A Tail Light Lens 005467 Tail Light Mounting Bracket...
  • Page 64 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...

  • Page 65: Hydraulic System

    HYDRAULIC SYSTEM Ref. No. Part Number Description No. Required 005639 Female NPT Elbow 005640 MNPT – FJIC Adapter 005757 MSAE – FJIC Adapter 005794 MSAE – MJIC 90° Elbow 008690 FJIC – FNPT Adapter 012044 Pressure Gauge 012086 MSAE – MJIC Adapter 023616 MNPT –...
  • Page 66 VIEW A WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 67 HYDRAULIC HOSE REEL ASSEMBLY (OPTION) Ref. No. Part Number Description No. Required 008212A Hose Reel 080302 Flanged Riser 080302G Hose Reel Riser Gasket 008144 Hose Reel ring Gear 008200 Hose Reel Chain w/Connecting Link – 69" Lg. 008433 Pin Lock w/Brackets Assembly 008313 Idler Side Bearing 008314...
  • Page 68 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 69 HYDRAULIC SYSTEM w/ HOSE REEL Ref. No. Part Number Description No. Required 008696 SAE Reducer 012871 SAE Reducer 012872 SAE Reducer 012873 MSAE – FJIC Swivel Adapter 023621 MSAE – MJIC 90° Elbow 055274 MSAE – MJIC 90° Elbow 055308 MSAE –...
  • Page 70 NOTE: ITEM #1 INCLUDES ITEMS #2–9. WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 71 DISCHARGE BOOM ASSEMBLY Ref. No. Part Number Description No. Required 005529 Discharge Boom Assembly 006102 Female Coupler 006514 Coupler Gasket 005734 Boom Pipe Weldment Z0632SCP Boom Handle Set Screw 005528-03 Boom Collar Weldment Z0612SCP Boom Collar Set Screw 007286 Discharge Boom Torsion Spring 007288 Swivel Joint 006969...
  • Page 72 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 73 CONTROL BOX WIRING Ref. No. Part Number Description No. Required 005604A Control Box Assembly 007274 Hour Meter 022119 Magnetic Safety Switch KU15694-65990 Glow Plug Timer 020886 Horn Button KU15403-64490 Glow Plug Indicator Light 006245 Pilot Light KU66711-55131 Ignition Key Switch KU66711-55140 Ignition Key (Not Included w/ Switch) (Set of 2) 1 023604...
  • Page 74 CLUTCH/PUMP (See Pages 64-65) WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 75 PIPING Ref. No. Part Number Description No. Required 005682 Clump Assembly (See Pages 64–65 for Parts) 002383 Automatic Pressure Lubricator 005470 Pump Shaft Guard 006144 Pipe Clamp 006145 Pipe Clamp Gasket 006359 90° Victaulic Pipe Elbow 005524-02 Suction Pipe Elbow Weldment 008280 Suction Line Shut-Off Valve 005523-06...
  • Page 76 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 77 CLUTCH/PUMP (CLUMP) ASSEMBLY Ref. No. Part Number Description No. Required 005682 Clump Assembly 005146 Pump Suction Cover 005150 O-ring 005543 Pump Impeller 006443 Mechanical Shaft Seal 005144 Pump Casing 006444 Grease Retainer Seal 005446 Flange Pilot Bearing 005447 Shaft Seal 005475 Thrust Bearing Retainer 005544-02...
  • Page 78 DETAIL A DETAILS B, C & D (See Page 67) WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 79 DETAIL C DETAIL B DETAIL D 18 (REF) ENGINE AND RADIATOR Ref. No. Part Number Description No. Required 031354 Air Cleaner Assembly KU15741-11080 Air Filter Element KU01123-50835 Bolt 055548 Mounting Band 022450 Worm Gear Clamp KU16616-11621 Air Cleaner Inlet Pipe (1 x 180. Elbow cut to fit 2 x 90° Elbows) 005681-07 Air Cleaner Extension Pipe F90-0012...
  • Page 80 FUEL PUMP GLOW PLUGS WHITE WHITE BLUE SHUT DOWN HORN SYSTEM TEMPERATURE SWITCH SWITCH BROWN ALTERNATOR HOSE REEL LEAD 16 Ga. Brown Green Orange Blue 12 Ga. Black BROWN ORANGE BLACK BLUE Blue Black Green Yellow 12 Ga. 16 Ga. GROUND STRAP YELLOW...
  • Page 81 HOSE REEL NOZZLE/REMOTE VALVE/TOOL KIT Part Number Description No. Required HOSE REEL NOZZLES 080273 Long Distance Hose Reel Nozzle Assembly 080131 Long Distance Nozzle 1 per 080260 Adapter 1 per 160749 Reducer Bushing 1 per 080394 Wide Fan Hose Reel Nozzle Assembly 006604 Wide Fan Nozzle 1 per...
  • Page 82 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE LBT90-MO...
  • Page 83 DECALS Ref. No. Part Number Description. No. Required 023174 "FINN" Decal – Large 012661-05 "T90" Decal 011595 "Hydro Seeder" Decal 022199 "Throttle" Decal 011567 "Do Not Aim . . ." Decal 007230-02 "Service Daily" Decal 007230 "Service Daily" Decal 023391 "Diesel Fuel Only"...
