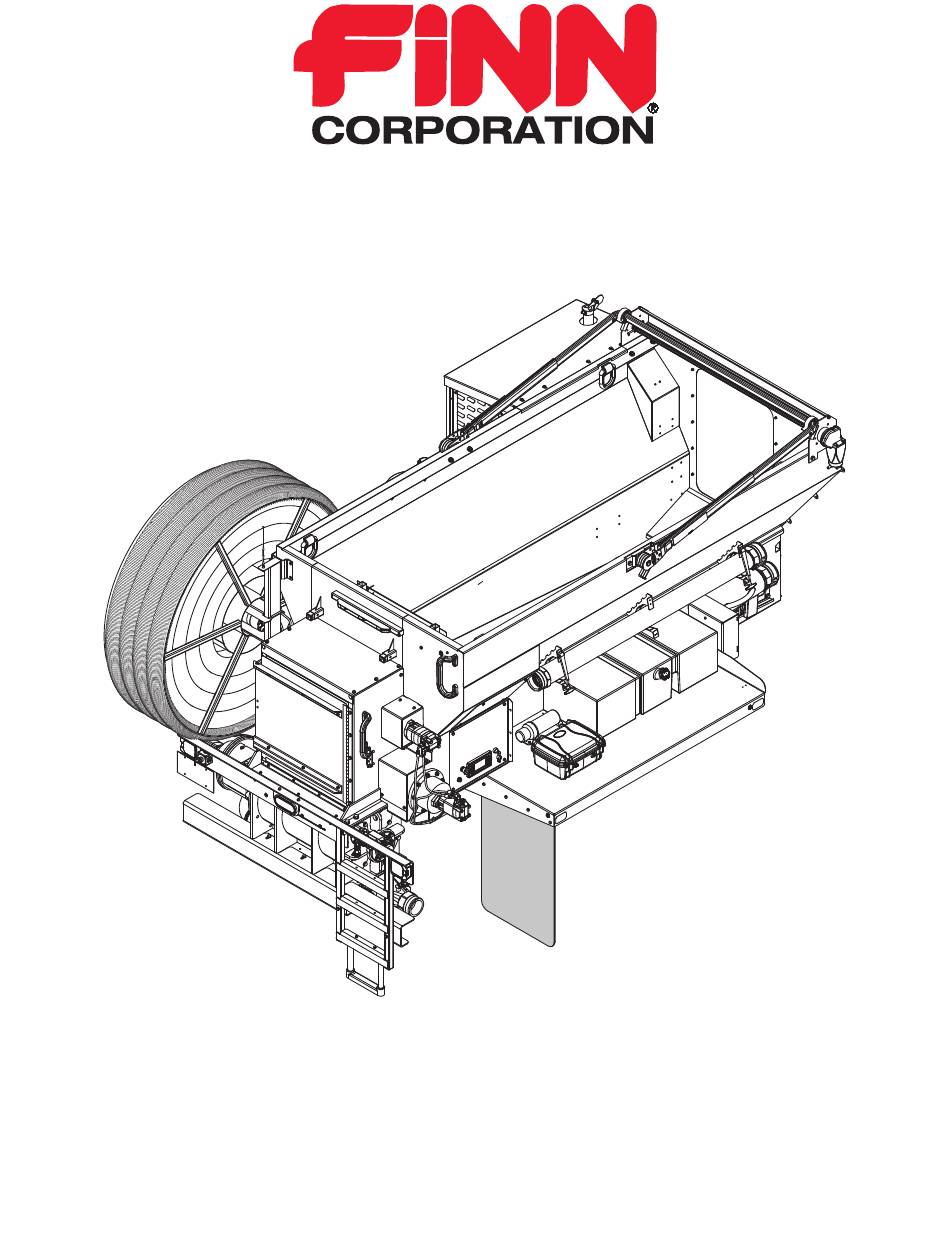

- Page 1 9281 LeSaint Drive • Fairfield, Ohio 45014 Phone (513) 874-2818 • Fax (513) 874-2914 Sales: 1-800-543-7166 MBH6 Mounting Instructions Guide MBH6 MIG0719...
- Page 2 FOR OFFICE USE ONLY DATE UPDATE DESCRIPTION CODE 07/19/19 Initial release MR0719...
-
Page 3: Safety First
With any piece of equipment, new or used, the most important part of its operation is SAFETY! FINN Corporation encourages you and your employees to familiarize yourselves with your new equipment and stresses safe operation. Consult the operations manual and the truck manual. - Page 4 TRUCK MOUNTING / LOADING INFORMATION C.L. CHASSIS < FRONT REAR > CG Y CG X 15.5 11 MIN. CG Z TRUCK RAIL MOUNT 22.5 CLEARANCE ZONES 31.5...
- Page 5 CG Z WEIGHT MBH6 (No Material) 82.5 in. 9 in. 18.75 in. 7,169 lbs. MBH6 (Full, 6 yard)* 74 in. 3 in. 26 in. 12,275 lbs. Maximum Capacity Rating 5,106 lbs. * Assumes six (6) yards of mulch weighing 851 lbs. / cu. yd.
- Page 6 TRUCK MOUNTING / LOADING INFORMATION (CONTINUED) < FRONT ITEMS PRE-INSTALLED AT FACTORY 0.37 in. (9.4 mm) GAP HOPPER TOP OF BASE FRAME RAIL 3.37 in. (85.6 mm) MATCH THROUGH HOLES: DRILL 11/16 in. (17.5 mm) THROUGH BOLT (3X, BOTH SIDES) 2.50 in.
-
Page 7: Fixed Mount
TRUCK MOUNTING / LOADING INFORMATION (CONTINUED) REAR > HOPPER BODY TRUCK CHASSIS FRAME RAILS ITEMS PRE-INSTALLED AT FACTORY TOP OF FRAME RAIL 2.50 in. (63.5 mm) 1.75 in. (44.45 mm) MATCH THROUGH HOLES: DRILL 11/16 in. (17.5 mm) THROUGH BOLT (4X, BOTH SIDES) --------------- ZINC PLATED 3.75 in. - Page 8 TRUCK MOUNTING / LOADING INFORMATION (CONTINUED) The front spring mounts can be located in 1 of 3 defined locations shown below. The single side shift mount can be located in one of the available two open slots. FRONT SPRING MOUNTS OPTIONAL LOCATION FOR SIDE SHIFT MOUNTS OPTIONAL LOCATION FOR...
- Page 9 TRUCK MOUNTING / LOADING INFORMATION (CONTINUED) 10 ( PRE-INSTALLED AT FACTORY 11 ( PRE-INSTALLED AT FACTORY TORQUE TO 357 ft. / lb. (484 N-m) SPRING MOUNT ASSEMBLY Ref. Part Number Description Req’d Prevailing Torque Type Hex Nut - UNF, 3/4 - 16 in. Grade 8 011563 Truck Mount Compression Spring A3453-001...
- Page 10 NOTES...
- Page 11 NOTES...
- Page 12 MBH6 MIG0719...
